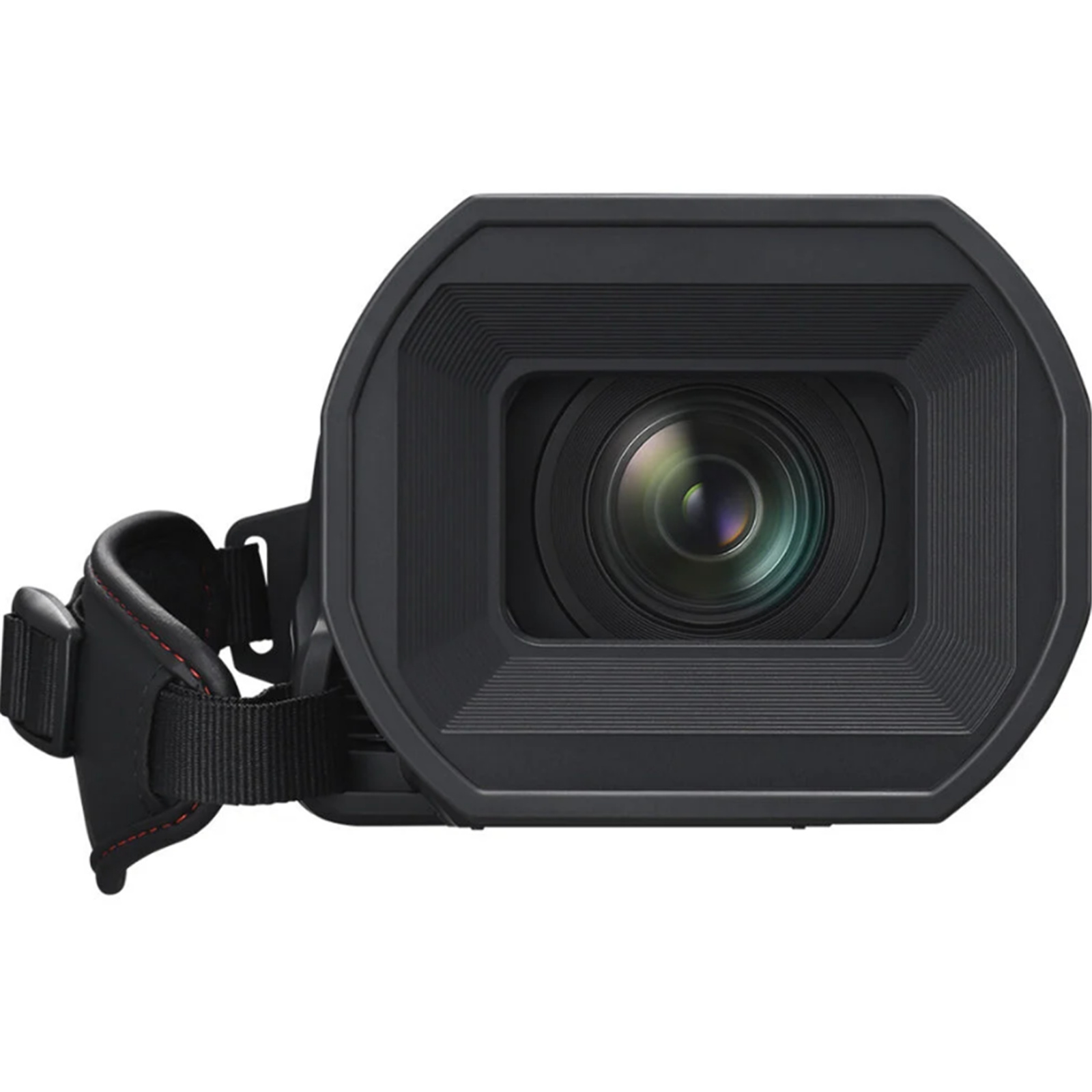

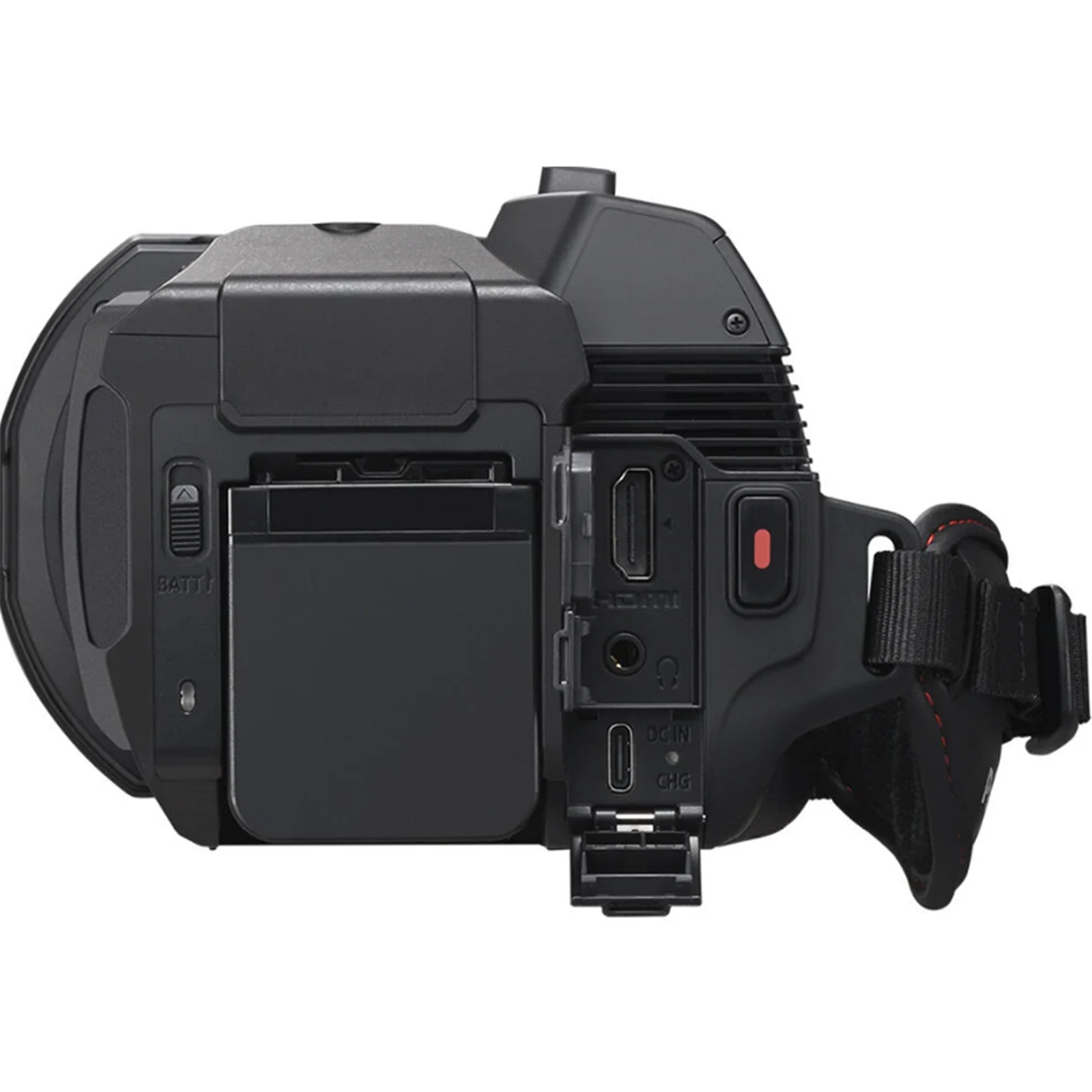

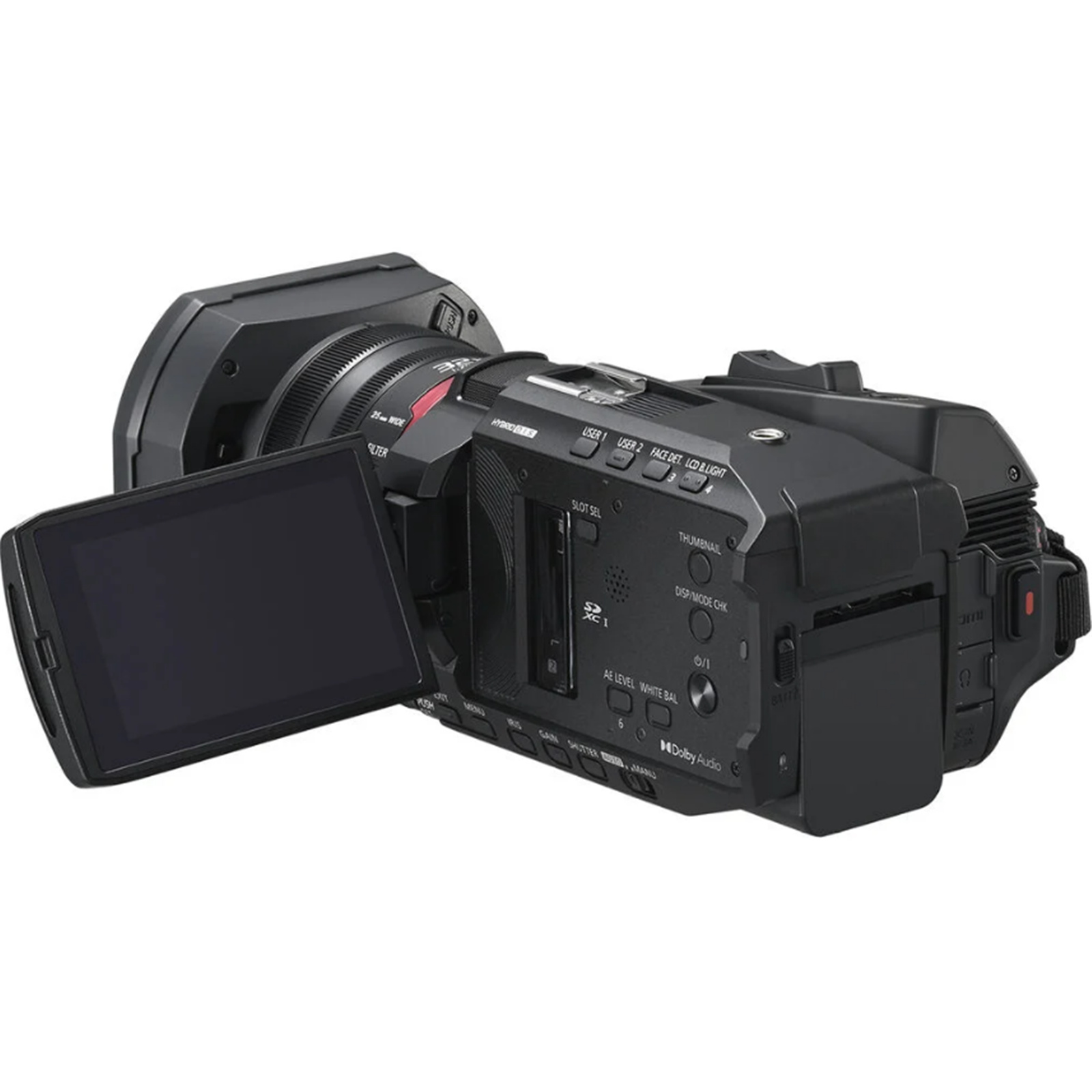

Panasonic HC-X1200 UHD 4K HDMI Camcorder with 24x Zoom
- Brand: Panasonic
- MPN: HC-X1200GC
- Part #: CAMPAN1200

Product URL: https://www.pbtech.com/pacific/product/CAMPAN1200/Panasonic-HC-X1200-UHD-4K-HDMI-Camcorder-with-24x
Features
Realize 4K 60p shooting with optical performance such as a wide-angle 25mm* lens and optical 24x zoom, as well as a long-life battery to support long hours of shooting in a compact body.
4K 60p Camcorder Built for On-the-Go Creators
While excelling in mobility and portability, the included high-capacity battery provides 6 hours and 10 minutes of shooting (60 Hz), and the compact body considers the weight balance of the advanced functions when shooting.
Wide 25mm* and Optical 24x Zoom Lens
The lens covers the range from 25mm* wide-angle to 600mm* tele with a 24x zoom. i.ZOOM achieves 32x zoom with 4K mode, and 48x zoom with FHD mode.
4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding colour recognition, tracking subjects is improved, without interruption, when the face moves to either side.
HYBRID O.I.S.
In addition to Optical Image Stabilisation, Electronic Image Stabilisation detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.
Versatile Recording Mode
Supports a high bit rate of 100 Mbps for 4K 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MP4) codec, and 120/100fps* Super Slow-motion with 10-bit recording in FHD.
Heat-Dispersing Design
The heat dispersion structure equipped with an ultrathin fan enables a compact, lightweight body to be combined with ultra high definition 4K 60p recording.
Specifications
SENSOR SECTION
Image Sensor
1/2.5-type (inch) MOS Sensor
Effective Pixels
8.29 megapixels
LENS SECTION
F Value
F1.8 ? 4.0
Optical Zoom
24x
Focal Length
4.12 ? 98.9 mm
35 mm Film Camera Equivalent
25.0 ? 600.0 mm
Filter Diameter
62 mm
Lens Brand
Panasonic Lens
CAMERA SECTION
Minimum Illumination
1.5 lx (F1.8, Super Gain +, Shutter Speed 1/30 sec)
Focus
Auto / Manual
Zoom
i.Zoom OFF
24x
i.Zoom ON
Max. 48x (UHD 32x)
Digital Zoom
2x / 5x / 10x
ND Filter
Clear, 1/4, 1/16, 1/64
IR Filter
Incorporates the ON/OFF control function
White Balance
Auto / ATW LOCK / 3200K / 5600K / VAR (2000K-15000K) / Ach Fixed / Bch Fixed
Shutter Speed
59.94 Hz mode
60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
50.00 Hz mode
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
Slow Shutter Speed
59.94 Hz mode
59.94i/59.94p: 1/8, 1/15, 1/30 sec
29.97p: 1/8, 1/15 sec
23.98p: 1/6, 1/12 sec
50.00 Hz mode
50i/50p: 1/6, 1/12, 1/25 sec
25p: 1/6, 1/12 sec
Super Slow Recording Frame Rate
59.94 Hz mode
FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
50.00 Hz mode
FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
Iris
Auto / Manual
Image Stabiliser
Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD)
RECORDING SECTION
Recording Media
SDHC/SDXC Memory Card (Up to 512GB), UHS-I compatible
Recording Format
MP4, AVCHD
Video Compression Method
MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-4 HEVC Main10 Profile
AVCHD: H.264/MPEG-4 AVC High Profile
Audio Compression Method
MP4: AAC, 48kHz/16bit, 2ch
AVCHD: Dolby Audio, 48kHz/16bit, 2ch
2-slot Function
Relay recording, simultaneous recording, background recording (MP4 FHD only)
System Frequency
59.94Hz / 50.00Hz
Recording / Playback Mode
MP4 (HEVC)
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)
MP4
[4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR)
FHD 1920x1080 59.94p/50.00p/23.98p/59.94i*/50.00i* 420 LongGOP 50M: Average 50Mbps (VBR)
FHD 1920x1080 59.94p*/50.00p* LongGOP 28M: Average 28Mbps (VBR)
FHD 1920x1080 23.98p* LongGOP 24M: Average 24Mbps (VBR)
FHD 1920x1080 29.97p*/25.00p* LongGOP 20M: Average 20Mbps (VBR)
*To be added by firmware update.
AVCHD
[4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR)
PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)
HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR)
PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR)
STILL IMAGE SECTION
Recording Format
JPEG (DCF/Exif2.2)
Recording Image Size
Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
* Only images cut from video in video playback mode are supported.
GENERAL SECTION
Power Supply
7.28V (Battery) / 9.0V (DC IN)
Power Consumption
Recording: 12.3W, Charging: 15.5W
Dimensions (W x H x D)
Approx. 129 x 93 x 209 mm (5.1 x 3.7 x 8.3 inch) (including lens hood)
Weight
Body: approx. 0.80kg (1.77 lb) (body only, excluding lens hood and battery)
Shooting: approx. 1.1kg (2.43 lb) (including lens hood and battery)
LCD Monitor (Electrostatic Touch Panel)
3.5-inch Wide LCD monitor (About 2,760,000 dots)
INTERFACE SECTION
HDMI
Type A x 1 (VIERA Link not supported), supports time code output and remote recording control
Output format: 4:2:2 10bit:
3840x2160/59.94p, 50.00p, 29.97p, 25.00p, 23.98p
1920x1080/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p
1280x720/59.94p, 50.00p, 720x480/59.94p, 720x576/50.00p
Audio Input
Built-in Microphone
Stereo microphone
Microphone Input
3.5mm stereo mini jack x 1
Audio Output
HDMI
2 ch (LPCM)
Headphone
3.5 mm diameter stereo mini jack x 1
Speaker
15 mm diameter, round x 1
Other Input/Output
Camera Remote
2.5mm diameter super mini jack x 1
USB
Type-C x 1, High-speed USB (USB2.0), Mass storage function (read only)
DC IN
9V/3A, USB Type-C x 1, USB-PD supported
