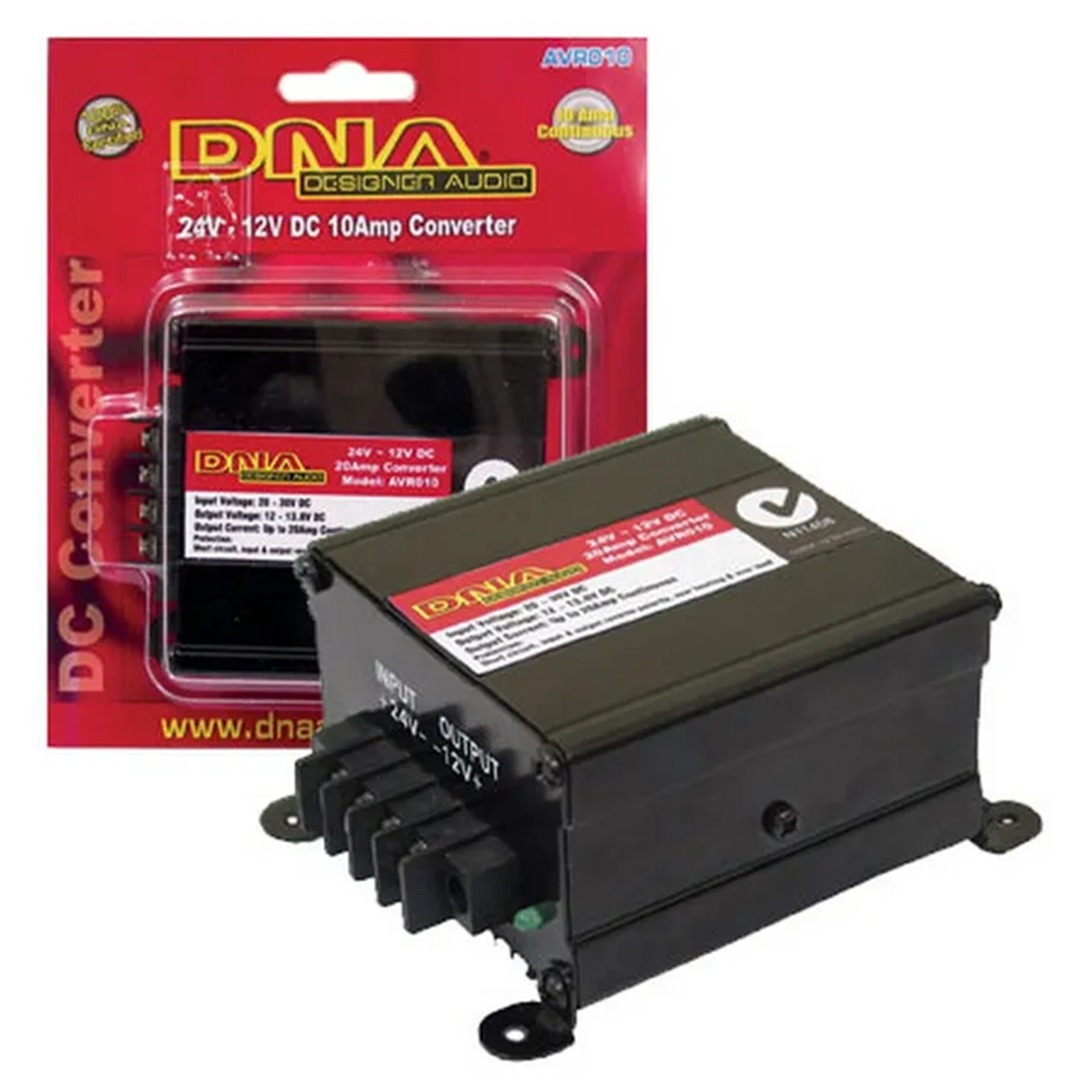

DNA AVR010 VOLTAGE REDUCER 24V TO 12V 10AMP CONTINUOUS
DNA AVR010 VOLTAGE REDUCER 24V TO 12V 10AMP CONTINUOUS
- Brand: DNA
- MPN: AVR010
- Part #: CARDNA1042
- UPC:
- Brand: DNA
- MPN: AVR010
- Part #: CARDNA1042
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Car Audio





DNA AVR010 VOLTAGE REDUCER 24V TO 12V 10AMP CONTINUOUS
- Brand: DNA
- MPN: AVR010
- Part #: CARDNA1042

Product URL: https://www.pbtech.com/pacific/product/CARDNA1042/DNA-AVR010-VOLTAGE-REDUCER-24V-TO-12V-10AMP-CONTIN
Features
24 Volt DC to 12 volt DC voltage reducer
- Input DC voltage range: DC20~30V DC
- Output voltage range: 12V~13.8V
- Continuous power: 10 Amps
- Peak power: 15 Amps
- No load current draw: 20mA
- Max. power efficency: >90%
- Cooling: Air convection
- Input polarity reverse: Diode protection
- Output polarity reverse: Circuit protection
- Over heating: Circuit protection
- Over load: Circuit protection
- Output short: Circuit protection
- Fuse: 15 Amps
- Dimension (LxWxH): 71 x 73 x 45mm
- Weight: 260g
Specifications
Product name
VOLTAGE REDUCER 24V TO 12V @ 10AMP CONTINUOUS
Input DC voltage range
DC20~30V DC
Output voltage range
12V~13.8V
Continuous power
10 Amps
Peak power
15 Amps
No load current draw
20mA
Max. power efficency
>90%
Cooling
Air convection
Input polarity reverse
Diode protection
Output polarity reverse
Circuit protection
Over heating
Circuit protection
Over load
Circuit protection
Output short
Circuit protection
Fuse
15 Amps
Dimension (LxWxH)
71 x 73 x 45mm
Weight
260g
