Milesight MS-C8164-UPD 4K NDAA AI Color+ Vandal-proof Mini Bullet Network Camera
Milesight MS-C8164-UPD 4K NDAA AI Color+ Vandal-proof Mini Bullet Network Camera
- Brand: Milesight
- MPN: MS-C8164-UPD
- Part #: CCTMLS1110
- UPC:
- Brand: Milesight
- MPN: MS-C8164-UPD
- Part #: CCTMLS1110
- UPC:
Features

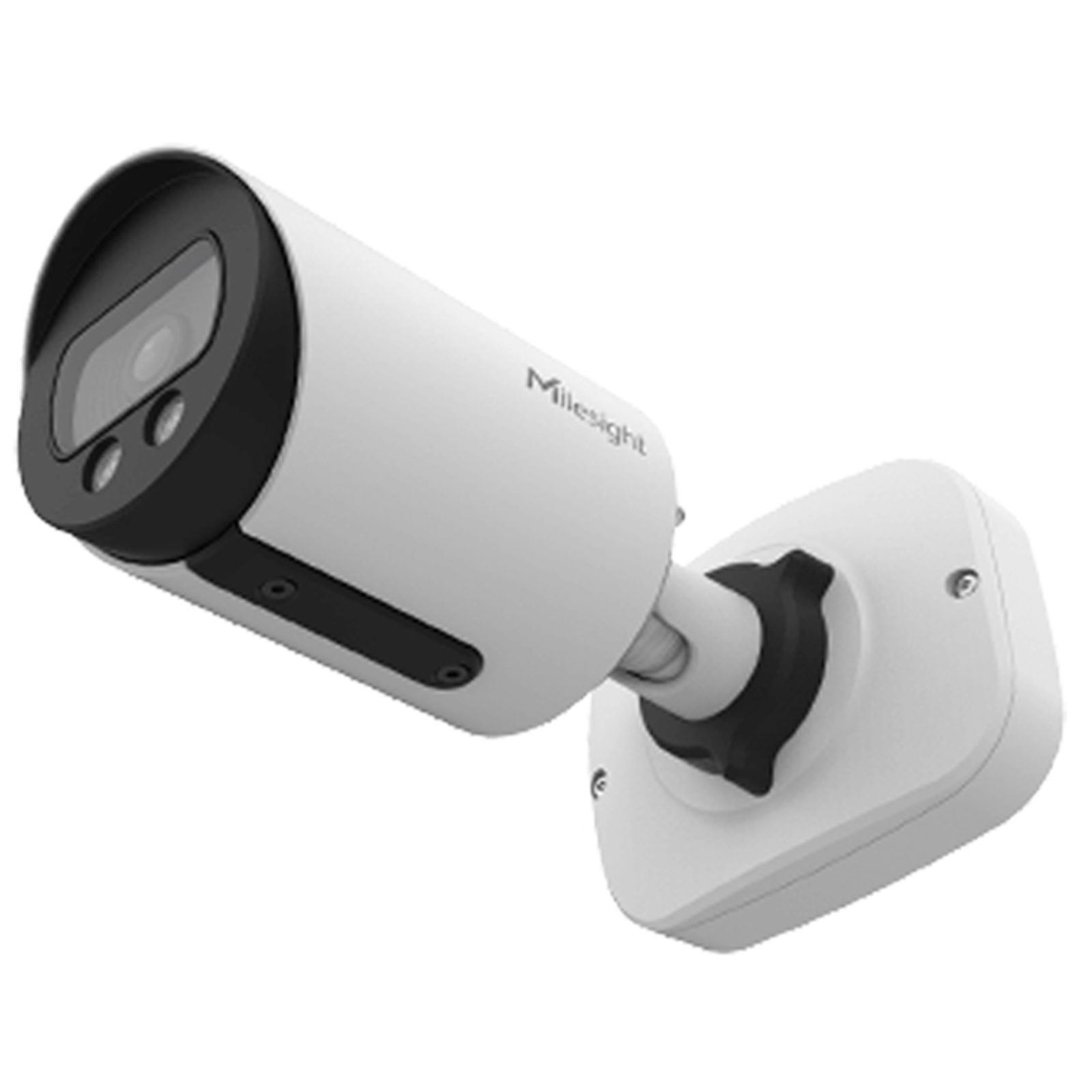

The Milesight AI Color+ Vandal-proof Mini Bullet Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit around your home or business and offer full colour viewing and recording in the dark!
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
- Ultra Mini Size
- Full colour image at night using white built in white LEDs!
- Fixed 2.8mm Lens
- IR Distance up to 30m
- 120dB Super WDR
- Junction Box Version
- Suitable for outdoor applications (IP67 & IK10)
- ONVIF Profile Support for profiles G & Q & S & T, API
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
Light up for Full-color World
Combined with built-in warm illuminator, which could deliver colorful and high resolution images in the dark or at night for the majority of monitoring scenarios, like outdoor area, parking lot, retails and so on.
F1.0 Super Aperture
The F1.0 super large aperture allows 2.2 times more light to pass through than normal cameras, which tremendously improves image exposure. In low-light scenarios, it works to guarantee full-time and excellent image performance.
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
Smart Illuminator On/Off Control
The intelligent illuminator has a maximum illumination distance of 30 meters and can automatically adjust the luminance of the supplement lighting based on the environment, providing a flexible monitoring control solution.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.001Lux Ultra Low-light, 120dB Super WDR, 4K High Definition and 60fps High Frame Rate features make it well-suited for various special circumstances.
Efficient & Simple Installation
The well-designed Integrated Junction Box make sure the camera's best ease of use, ensuring an efficient and simple installation.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Bullet 4MP/2K Bullet PoE Camera ...
Milesight MS-C8164-UPD 4K NDAA AI Color+ Vandal-proof Mini Bullet Network Camera
- Brand: Milesight
- MPN: MS-C8164-UPD
- Part #: CCTMLS1110
Product URL: https://www.pbtech.com/pacific/product/CCTMLS1110/Milesight-MS-C8164-UPD-4K-NDAA-AI-Color-Vandal-pro
Features
The Milesight AI Color+ Vandal-proof Mini Bullet Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit around your home or business and offer full colour viewing and recording in the dark!
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
- Ultra Mini Size
- Full colour image at night using white built in white LEDs!
- Fixed 2.8mm Lens
- IR Distance up to 30m
- 120dB Super WDR
- Junction Box Version
- Suitable for outdoor applications (IP67 & IK10)
- ONVIF Profile Support for profiles G & Q & S & T, API
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
Light up for Full-color World
Combined with built-in warm illuminator, which could deliver colorful and high resolution images in the dark or at night for the majority of monitoring scenarios, like outdoor area, parking lot, retails and so on.
F1.0 Super Aperture
The F1.0 super large aperture allows 2.2 times more light to pass through than normal cameras, which tremendously improves image exposure. In low-light scenarios, it works to guarantee full-time and excellent image performance.
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
Smart Illuminator On/Off Control
The intelligent illuminator has a maximum illumination distance of 30 meters and can automatically adjust the luminance of the supplement lighting based on the environment, providing a flexible monitoring control solution.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.001Lux Ultra Low-light, 120dB Super WDR, 4K High Definition and 60fps High Frame Rate features make it well-suited for various special circumstances.
Efficient & Simple Installation
The well-designed Integrated Junction Box make sure the camera's best ease of use, ensuring an efficient and simple installation.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Model
4K: MS-C8164-UPD
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
4K: Color: 0.005Lux @ F1.0, B/W: 0Lux with White LED on
WDR
120dB Super WDR
Lens
2.8mm
Mount
M12
Field of View
4K: H108°/D125°/V60°(2.8mm)
IR Distance
Up to 30m
Day/Night Mode
Day/Night/Auto/Customize/Schedule
Max.Image Resolution
4K: 3840x2160
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking
Up to 4 areas
ROI
Up to 8 areas
Image Setting
Brightness/Contrast/Saturation/Sharpness
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio I/O
N/A
Alarm I/O
N/A
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Protocol
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
N/A
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support
Yes, Voice & Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Method
PoE (802.3af)
Power Consumption
4K: 4W MAX, 6W MAX (With White LED on)
Housing
Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing
Dimensions
97mm x 74mm x 180mm (Junction Box Version)
Accessories
A01 Pole Mount, A03 External Corner Bracket
