Milesight MS-N1008-UPC 4K 8 Channel IP Camera Network Video Recorder with PoE Built in
Out of stock
Milesight MS-N1008-UPC 4K 8 Channel IP Camera Network Video Recorder with PoE Built in
- Brand: Milesight
- MPN: MS-N1008-UPC
- Part #: CCTMLS1129
- UPC:
- Brand: Milesight
- MPN: MS-N1008-UPC
- Part #: CCTMLS1129
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Video Recorders





Milesight MS-N1008-UPC 4K 8 Channel IP Camera Network Video Recorder with PoE Built in
- Brand: Milesight
- MPN: MS-N1008-UPC
- Part #: CCTMLS1129

Product URL: https://www.pbtech.com/pacific/product/CCTMLS1129/Milesight-MS-N1008-UPC-4K-8-Channel-IP-Camera-NVR
Features
Milesight MS-N1008-UPC 4K 8 Channel IP Camera NVR with PoE Built in
- Up to 10TB Storage
- Decode up to 2-CH 4K UHD & 8-CH 1080P
- Automatic Network Replenishment
- Video Content Analysis
- Versatile Interfaces
- ONVIF Compliant
- HDMI Out for live viewing
- HTML5 compatible
- 4 x PoE af/at Ports
*Please Note: HDDs need to be purchased separately
AI VCA Management
Defined as the central management site to manage intelligent VCA, People Counting and Face Detection, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.
POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.
HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.
Flexible Storage Options
Flexible storage options including 10TB HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.
Plug and Play
Milesight PoE NVR Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.
ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.
Easy-to-use Design
Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.
Thermal Design
The metal panel on the bottom of Mini NVR Series dissipates the heat effectively. Meanwhile, the ventilation holes on the side and bottom panels of MS-N1008-UPC maximize airflow and carry heat away, ensuring the heat to transfer under a variety of different load conditions.
Versatile Interfaces

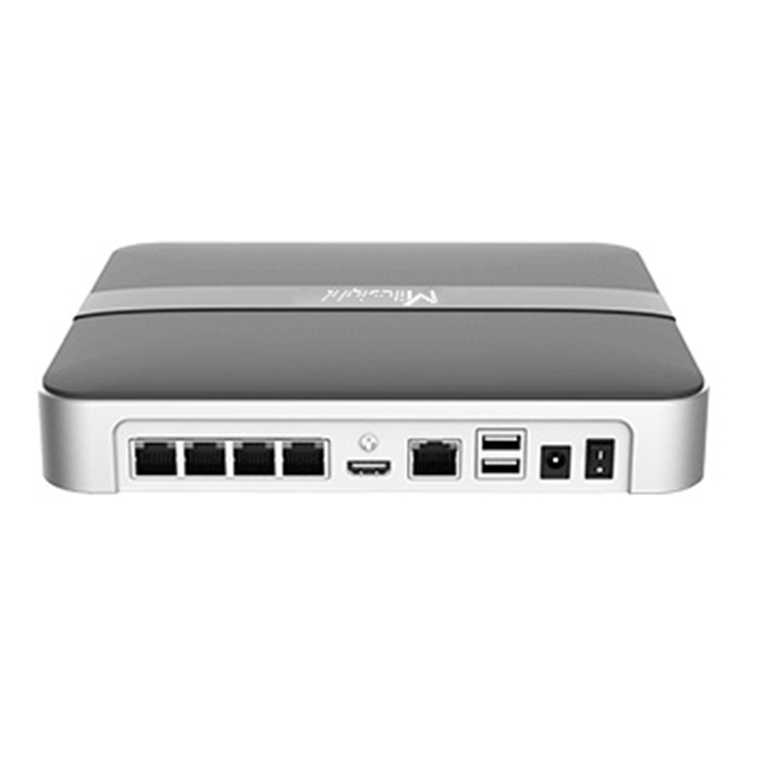

Though developed to take up as less space as possible, the 4K H.265 Mini PoE NVRs come with a whole array of ports such as an HDMI port, 2 USB ports, 4 PoE ports, and a LAN port.
Ultra Mini Size
Specifications
Model
MS-N1008-UPC
Network Video Input
8-CH
Bandwidth
Incoming 80Mbps, Outgoing 80Mbps
HDMI Output
1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual Stream
Supported
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback
1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264
Audio Compression
G.711/AAC/G.722/G.726
Sample Rate
8KHz/16KHz
Synchronous Recording
4*5MP
Storage
1*SATA HDD(3.5")
Capacity
Up to 10TB capacity
Recording Type
Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type
General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup
Video Backup, Image Backup
Network Protocol
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Network Interface
1*RJ45 10/100Mbps
PoE
4*RJ45 10/100Mbps
Power Output
=40W
Supported Standard
IEEE 802.3af/at
Compatibility
ONVIF
Advanced Function
ANR
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard Control
Milesight Keyboard (MS-K01)
Power Supply
DC 48V 1.3A
Consumption
=3.5W(Without HDD, without enabling PoE )
Working Conditions
Temperature: -10?~55?/Humidity: 10%~90%
Dimensions
220mm(W)X200mm(D)X43.6mm(H)
Weight
0.20Kg
