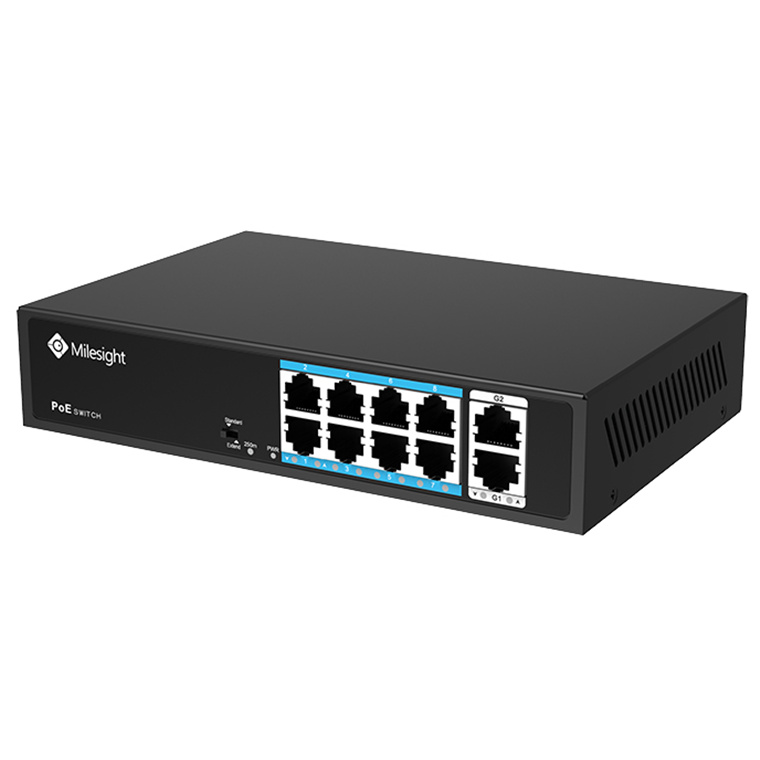

Milesight MS-S0208-GL 8 Port 100Mbps 802.3af/at 120 Watt PoE Switch with dual Gigabit Uplinkports

PB Tech price

NZD $ 164 .35

$ 164 .35

Milesight MS-S0208-GL 8 Port 100Mbps 802.3af/at 120 Watt PoE Switch with dual Gigabit Uplinkports

Brand: Milesight
MPN: MS-S0208-GL
Part #: CCTMLS1142
UPC:

PB Tech price

NZD $ 164 .35

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 10 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Milesight
MPN: MS-S0208-GL
Part #: CCTMLS1142
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Milesight 8 Port 100Mbps AF/AT 120 Watt PoE Switch with Dual Gigabit Uplink ports

Milesight has a range of PoE switches from 4, 8, 16 to 24 port to support their IP Cameras. Milesight PoE Switch Series provides flexible choices for various applications. It automatically recognizes the power receiving devices and offers power. Also, transmitting the data over one single Ethernet cable, it simplifies the network deployment in remote areas without power outlet.

Featuring multiple 10/100Mbps PoE ports which support IEEE 802.3af/at protocol and 2 Gigabit uplink ports, the Milesight PoE Switch Series provides maximum power budget of 400W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.

With up to 14.8Gbps switching capacity, non-blocking design and full link-speed forwarding, Milesight PoE Switch Series is able to provide fluent transmission. At the same time, its reliability of data transmission is well guaranteed by the self-adaption ports which support both IEEE 802.3x Full Duplex Communication and Backpressure Half Duplex Communication.

Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Abide by safety requirements of industrial standard, the Milesight PoE Switch Series is definitely reliable to bring safe perfor-mance. The exquisite metal housing, fanless design, low power consumption and continuous PoE power supply guarantee the efficient and stable running.

The plug and play with no configuration makes the maintaining as easy as ABC. With the indicator lights of PWR and Link/Act, users can easily get the working status of the connected devices. All those will have no doubt to simply the use.

- IEEE 802.3af/at Protocol
- 4KV Surge protection
- 1Gbps Uplink Ports
- 100Mbps ports
- 250m Extend Mode

Interfaces

Specifications

Product Code

MS-S0208-GL

Ports

8 X 10/100Mbps PoE ports (RJ45) + 2 X 1Gbps uplink ports

Standard

IEEE802.3 10Base-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x

Switching Capacity

11.8Gbps (non-blocking)

Packet Forwarding Rate @ 64byte

4.17Mpps

Packet Forwarding Cache

MAC

Power Supply

Built-in switching power supply AC 100~240V, 50-60Hz, 2.2A

PoE Standard

IEEE802.3af/at

Max. PoE Power

Max capacity 120W

Max capacity for single port

30W

Functional Switch

Standard Mode: Port 1~8: 10/100Mbps auto-sensing @100 meters & Port 9~10: 1000Mbps @100 meters

Extend Mode

Port 1~8: 10Mbps @250 meters & Port 9~10: 1000Mbps @100 meters Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.

Indicator

Power Indicator PWR (green)

Network Indicator

Link (yellow)

PoE Working Indicator

PoE (green)

Functional Switch Indicator

EXTEND (green)

Operating Temperature

-20°~55°C

Storage Temperature

-40°~75°C

Operating/Storage Humidity

10%~90%RH(non-condensing)

Lightning Protection/ Protection Level

Port lightning protection: 4KV 8/20us

Protection level

IP30

Dimensions

195mm(W)*130mm(D)*40mm(H)

Weight

0.7kg

Installation Method

Desktop Type, Wall Mounted Type

Manufacturer Part No:

MS-S0208-GL

Brand:

Milesight

Product Type:

UPC

Product Family:

Shipping Weight:

0.9 kg

PB Part No:

CCTMLS1142

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
