Milesight UC1114-868 Ursalink LoRaWAN EU868 Remote IoT Client with Digital Input and Relay Output
- Brand: Milesight
- MPN: UC1114-868
- Part #: CCTMLS1160

Product URL: https://www.pbtech.com/pacific/product/CCTMLS1160/Milesight-UC1114-868-Ursalink-LoRaWAN-EU868-Remote
Features
Ursalink LoRaWAN EU868 Remote IoT Client with Digital Input and Relay Output
Ursalink UC1114 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 2 dry contacts and 2 drivable relay outputs. With the aid of Ursalink UC1114, the alarm condition brings attention to engineering personnel immediately. The output can be connected with an alarm indication device, such as a light or horn. The device can give immediate response to the status of both the input and output conditions. A LoRaWAN module is embedded in the Ursalink UC1114.
Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud.
- Easy operation anywhere and anytime
- 2 digital inputs, connected with up to 2 dry contact devices
- 2 relay drivable outputs
- Reliable performance with built-in watchdog
- Customizable conditions, programmable actions
- Send uplink alert messages according to user-defined conditions
- Automatic switching of field devices at set times
- Send and receive messages via LoRaWAN technology
- Comply with the LoRaWAN Class C protocol
- Support star network and mesh network
- High Rx sensitivity and adjustable Tx power
- Up to 10km communication distance with omni-directional antenna

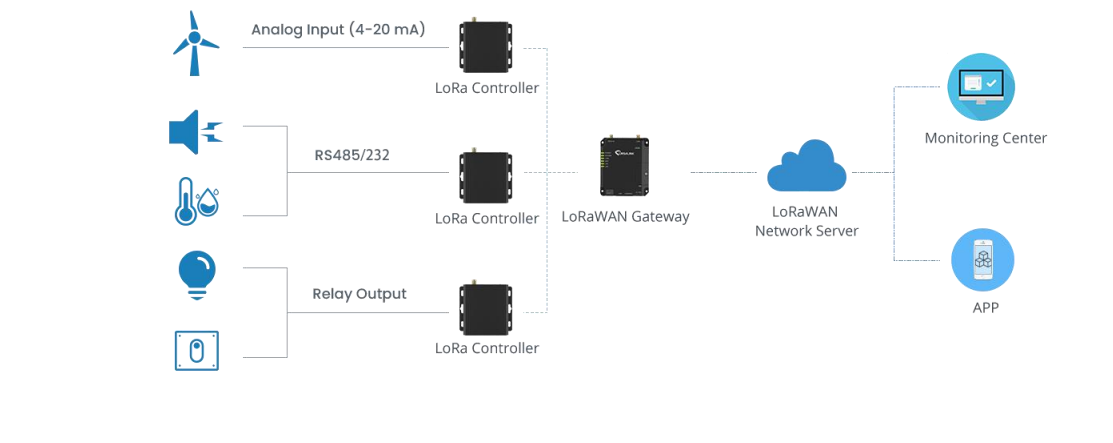

Application Example
Specifications
Antenna
50 Ohm SMA Antenna Interface
Frequency Band
EU868
Sensitivity
-147 dBm @300bps
Output Power
20dBm
Protocol
LoRaWAN Class C
Digital Input
Opto-isolated depending on voltage, Can accept any DC signals of any type, including: DC Voltage (3-24 V)
Digital Output
2 x SPDT Relay Contact Rating: 3Amp DC (Max: 30 V) or 3Amp AC (Max: 250 V)
IO Connector type
Screw Terminals
DC Power Supply
5-24 VDC
Operating Temperature
-40degC to +70degC
Relative Humidity
0% to 95% (non- condensing)
Dimensions
79 x 60 x 24 mm
