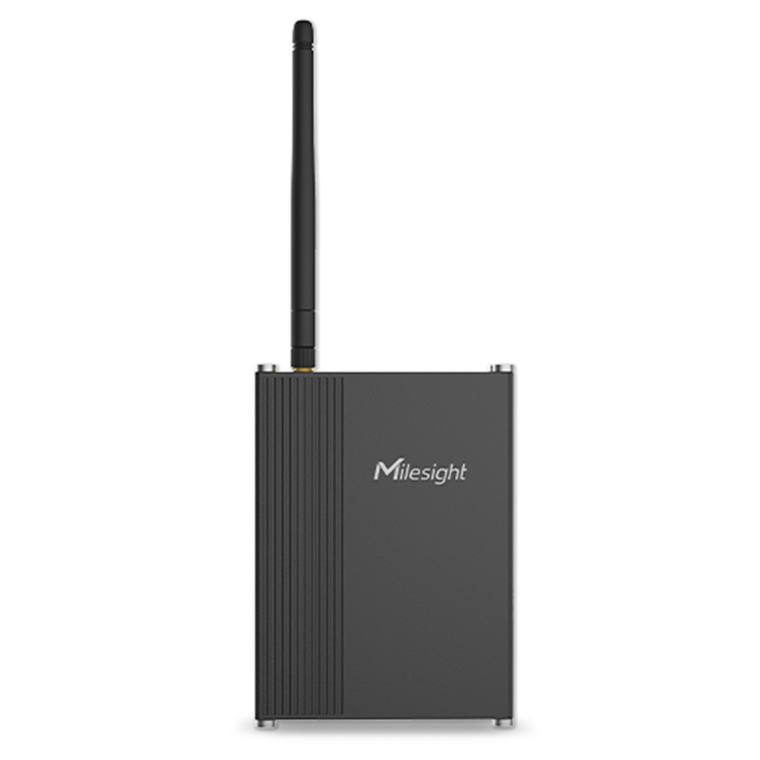

Milesight UC300-915M UC300 Multiple I/O interface, RS232, RS485 LoRaWAN AS923/AU915 IoTController

The Milesight UC300 series is an IoT controller used for remote control and data acquisition from diverse devices. It contains multiple I/O interfaces including analog input, digital input, relay output, serial port, PT100RTD input, which support remote device data transmission via LoRaWAN® or 3G/4G networks. The UC300 series also supports multiple trigger conditions and actions which can work autonomously even if the network drops. Combined with Milesight IoT Cloud solution, it can monitor and control remote devices via web server or mobile App easily. Adopting industrial design and IP30 metal case, the UC300 is widely used in indoor applications like smart factory, building automation, etc.

- Easy to connect with diverse wired devices through DIO/AI/RS232/RS485/PT100RTD input interfaces
- Support LoRaWAN® communication
- Multiple triggering conditions and actions
- Embedded watchdog for device working stability
- Industrial metal case design with wide operating temperature range
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool (Coming soon!)

Rich Industrial Interfaces

Integrating multiple and various kinds of industrial interfaces for monitoring and controlling field sensors or devices simultaneously.

6 × Analog Inputs
4 × Digital Inputs
2 × Digital Outputs
1 × RS232 + 1 × RS485

Expanded RS485 Interface Connectivity

The RS485 interface of the UC300 allows for connectivity with 32 channels, enabling the connection of 32 field sensors or devices. This feature establishes the UC300 as a central hub for comprehensive sensor data management and industrial IoT automation.

Note: The cellular version currently supports only 16 channels.

Temperature Transmitter

Besides the 4~20 mA & 0~10 V type analog interfaces, the UC300 firstly adopts 2 RTD inputs for accepting and converting 2/3 wires PT100 sensors' resistance signal into 4-20 mA current signal with a range from -200°C to 800°C.

Intelligent Trigger System

Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent tasks like timing data collection.

Autonomous Operation

Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable.

LoRaWAN® & 4G LTE

The UC300 IoT Controller supports global LoRaWAN® frequency plans or 4G LTE as backhaul connectivity to meet different projects.

Flexible Cloud Integration

Support TCP/UDP/MQTT protocol, UC300 IoT controller is compatible with multiple Cloud platforms such as AWS (for cellular version only) and Milesight IoT Cloud.
