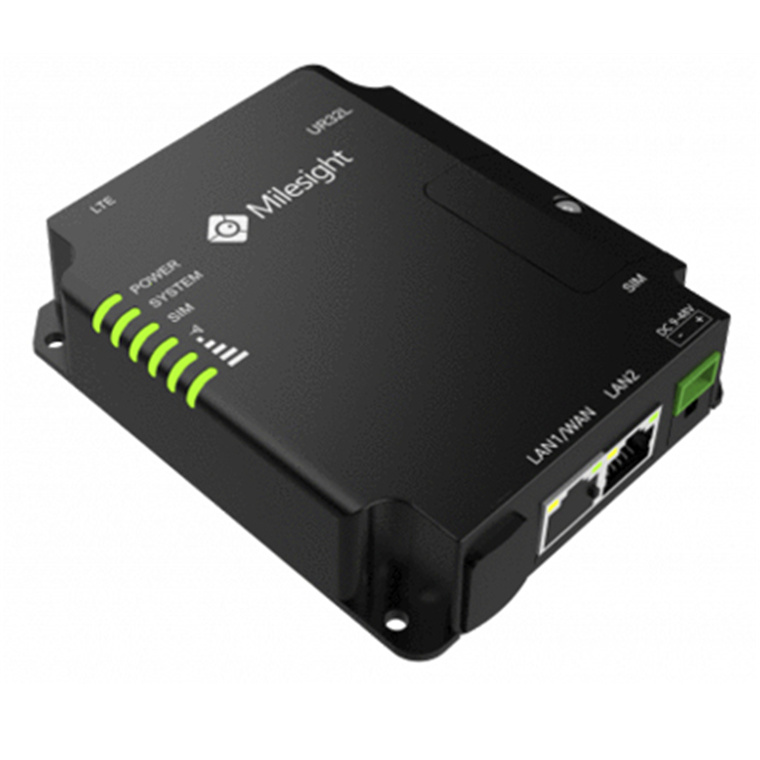

Milesight UR32L-L00AU UR32 LIte 3G/4G Industrial Cellular Router

PB Tech price
PB Tech price
NZD $ 324 .00
$ 324 .00
$324.00  +GST
$324.00

Milesight UR32L-L00AU UR32 LIte 3G/4G Industrial Cellular Router

  • Brand: Milesight
  • MPN: UR32L-L00AU
  • Part #: CCTMLS1211
  • UPC:
PB Tech price
NZD $ 324 .00 $ 324 .00
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 08 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$324.00  +GST
$324.00
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Milesight
  • MPN: UR32L-L00AU
  • Part #: CCTMLS1211
  • UPC:

Wireless Technology

N/A

Ethernet Ports Per Unit

2

USB Ports

No

Wireless Transmission Speed

N/A

WiFi Bands

N/A

Cellular Connectivity

4G (Single SIM)

HyperFibre Compatible

No

Coverage Area

N/A

View full specs
Returns & Warranty Bulk Quote Print Page

Features

Milesight UR32 Lite 3G/4G Industrial Cellular Router

The Milesight UR32L is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported make this drop-in connectivity a great help for operators in maximizing uptime. UR32L also has 2 fast Ethernet ports, which delivers users an uninterrupted internet access

Integrating watchdog and multi-link failover detection, UR32L provides stable communications. Combining DeviceHub and MilesightVPN, UR32L can help you manage network easily and efficiently.

Easy deployment and comprehensive remote device management makes UR32L versatile in most of IoT/M2M applications.

- Lite Industrial Cellular Router
- Reliable, Secure and Manageable
- Heavy Cast Aluminum Casing
- Industrial-grade Design
- -40°C to 70°C Operating Temperature
- Fit Into Limited Space with a Compact Size
- 150 Mbps Downlink & 50 Mbps Uplink
- Global 4G/3G Frequency Bands Compatibility
- Stateful Firewall VPN
- VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)
- SNMP v1/v2c/v3

Application Example

Specifications

CPU

ARM Cortex-A7,528 MHz

Memory

128 MB DDR3 RAM and 128MB Flash

Interfaces

1 × WAN + 1 × LAN or 2 × LAN

Data Rate

10/100 Mbps

Connectors

1 × 50 O SMA Connectors (Center PIN: SMA Female)

SIM Slots

1 (Mini SIM-2FF)

Freq bands

3G:B1/B2/B5/B8 WCDMA, 4G:B1/B2/B3/B4/B5/B7/B8/B28@ FDD LTE, B40@ TDD LTE

Digital IO

1 × DI + 1 × DO

VPN

DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE

Network Protocols

IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS,VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH

Power Input Connector

2-pin with 5.08 mm terminal block

Input Voltage

9-48 VDC, with Surge-Protection and Reverse Polarity Protection

Power Consumption

Typical 1.8 W, Max 2.2 W

Ingress Protection

IP30

Housing & Weight

Metal, 271 g

Dimensions

108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)

Mounting

Desktop, Wall or DIN Rail Mounting

Manufacturer Part No:
UR32L-L00AU
Brand:
Milesight
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.5 kg
PB Part No:
CCTMLS1211
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
