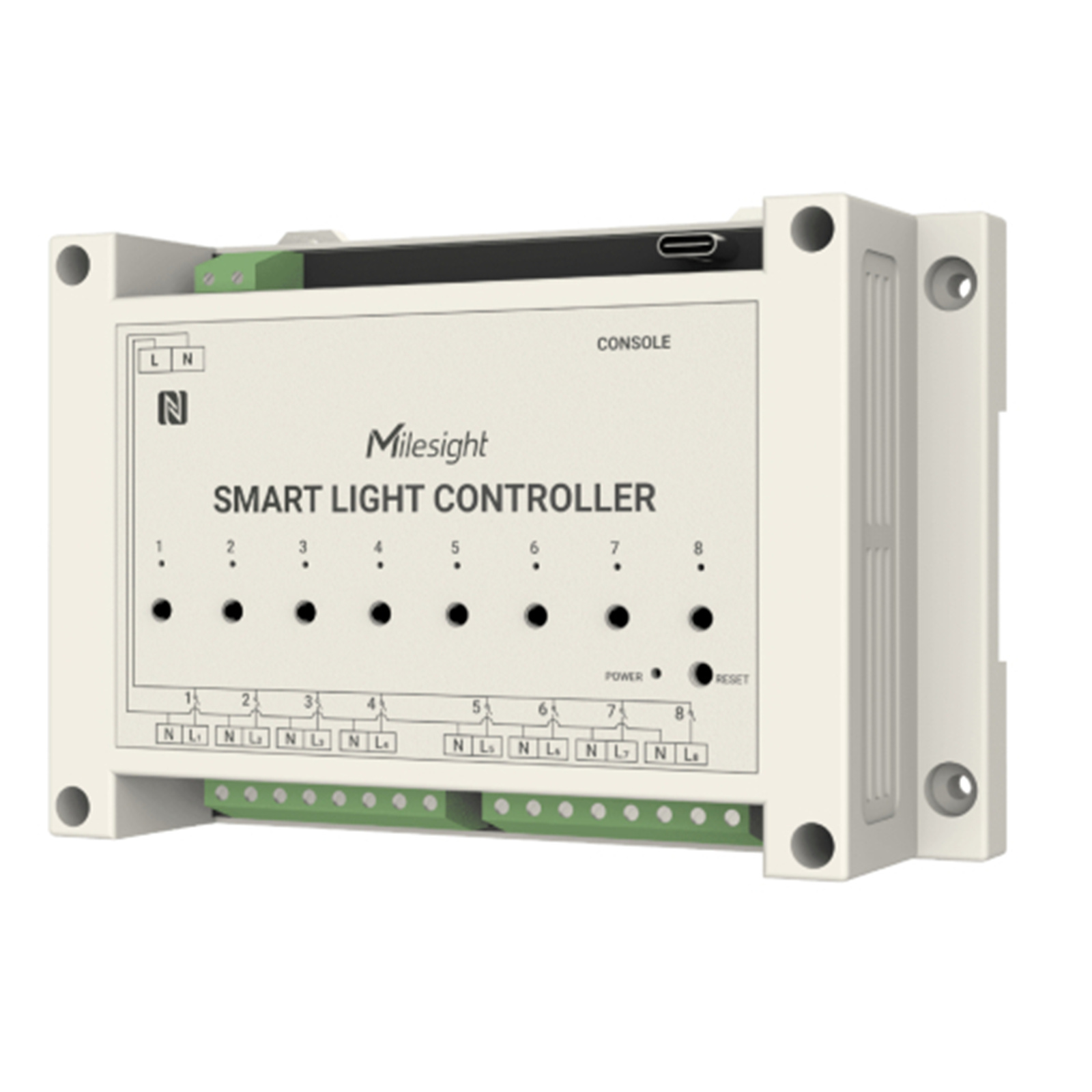

Milesight IoT WS558-915M PN LN Milesight LoRaWAN AS923/AU915 Smart Light Controller

PB Tech price

NZD $ 334 .78

$ 334 .78

Milesight IoT WS558-915M PN LN Milesight LoRaWAN AS923/AU915 Smart Light Controller

Brand: Milesight
MPN: WS558-915M PN LN
Part #: CCTMLS1235
UPC:

PB Tech price

NZD $ 334 .78

In stock at Supplier

Delivery: Order now and it ships on 15 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Milesight
MPN: WS558-915M PN LN
Part #: CCTMLS1235
UPC:

Be the first to review this product

Wattage

Replacement For

Length (Tube)

LED Warranty

Dimmable

Colour Temperature

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Milesight WS558 LN is a LoRaWAN® Smart Light Controller that allows occupants to centrally control the lights on eight circuits. With remote and time-based ON/OFF, WS558 enables to improve the overall efficiency of electricity consumption in buildings such as offices, shopping malls, hospitals and schools.

WS558 is a LoRaWAN® Smart Light Controller for monitoring and controlling lights locally or remotely. With 2 circuit typesand8switches, it fits different rooms without the needofre-wiring,reducing the renovation costs. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, WS558canbe monitored and controlled via webpage or mobile Appremotelyand triggered by other Milesight sensors. Besides, WS558supportsMilesight D2D communication protocol, which can set up connection quickly and be controlled without gateway. WS558 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc.

- Centralized control of 8 lighting circuits and each circuit can be controlled respectively
- More lights connected to one controller, fewer switch panels, lower wiring costs
- Set timers and schedules to make lights function automatically
- Up to 18 hours turn-off delay
- Remote control from a smartphone anywhere
- Milesight D2D protocol enables the communication among Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
- The power consumption measurement
- In case of any power failure, the present settings will be saved

Specifications

Input Voltage

100~240 VAC, 50~60 Hz

Outputs

8 Active Outputs

Capacitive & Inductive Load

Maximum 5A per output, total 16A

Resistive Load

Maximum 10A per output, total 16A

Electrical Measurement Stats

Voltage, Current , Power Factor, Power, Power consumption

Protocols

LoRaWAN®, Milesight D2D

Frequency

AS923, AU915

Tx Power

22 dBm 915 MHz

Sensitivity

-137dBm

Lora Class

OTAA/ABP Class C

Configuration options

NFC, USB Type-C or Downlink

Switch Control

Local Press or Remote Control

Advanced Features

Multicast, Remote Schedule, Overcurrent Protection, Milesight D2D

Operating Temperature

-20°C to +60°C

Relative Humidity

= 95% (Non-condensing)

Dimensions

145 × 90 × 40 mm

Installation options

Wall Mounting, DIN Rail Mounting

Manufacturer Part No:

WS558-915M PN LN

Brand:

Milesight

Product Type:

UPC

Product Family:

Shipping Weight:

1.2 kg

PB Part No:

CCTMLS1235

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
