Milesight CT305-915M LoRaWAN AS923/AU915 Smart Current Transformer CT305 With 3 Phase 500A Current Capacity
- Brand: Milesight
- MPN: CT305-915M
- Part #: CCTMLS1272

Product URL: https://www.pbtech.com/pacific/product/CCTMLS1272/Milesight-CT305-915M-LoRaWAN-AS923AU915-Smart-Curr
Features
CT310 provides multiple current options to suit different energy monitoring applications and supports sending threshold alarms. Its compact size enables quick and safe installation in any indoor space without de-energizing Circuits, thereby simplifying the installation and saving costs. Compliant with Milesight LoRaWAN gateway and Milesight Development Platform solution, CT310 can be conveniently monitored via webpage remotely. CT310 is widely used for energy monitoring in smart buildings, machine failure detection and prevention, etc. Perfect for smart buildings, smart city deployments or industrial use-cases.
- Self-Powered Operation
- Superior Accuracy with Up to 3.3kHz Frequency
- Real-time Accumulated Ampere Hour Calculation
- Non-invasive Installation
- Irregular Current/Temperature Status Alert
- Innovative One-to-Three Design
- LoRaWAN® Wireless Deployment

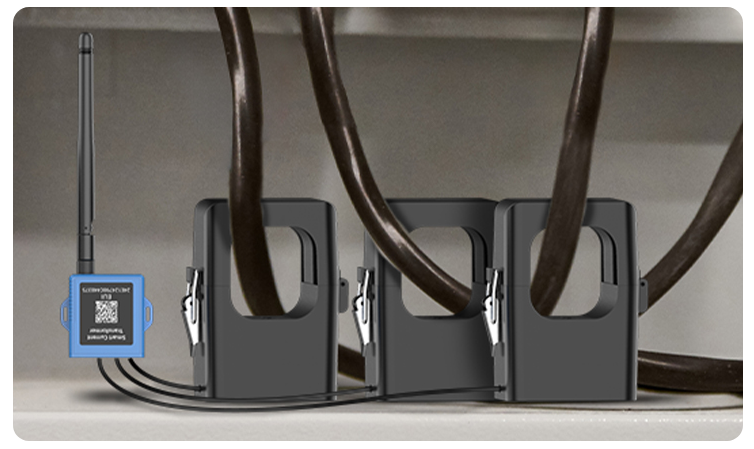

Multi-Target Current Measurement
With a one-to-three design, the current transformer can be applied to measuring up to three different objects' electricity.

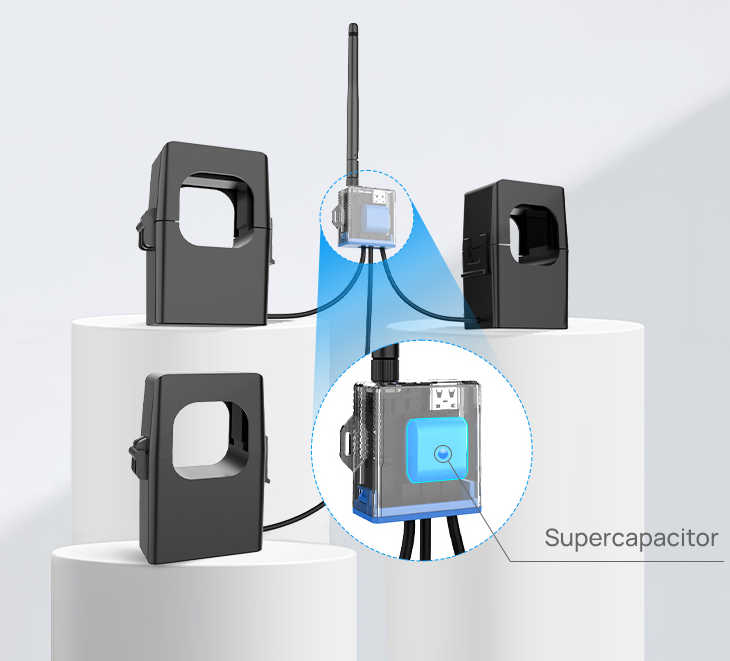

Self-Powered: No Batteries, No Limits
The CT3xx is designed to derive power directly from the measured circuit, eliminating the constraints of batteries while ensuring seamless operation.

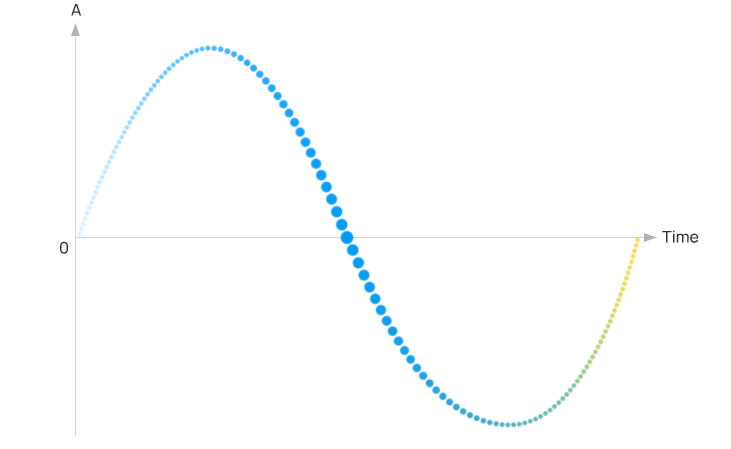

Superior Accuracy
Outperform other competitors on the market, CT3xx boasts an impressive high sampling frequency of up to 3.3kHz, guaranteeing unparalleled accuracy and detail.

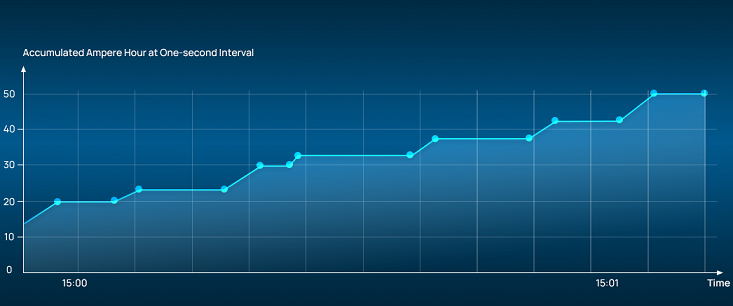

Efficient Energy Tracking At One-Second Interval
Calculate accumulated ampere hour in real-time at a one-second interval. This enables precise current consumption monitoring and analysis, achieving goals such as energy conservation and reduced operational costs.

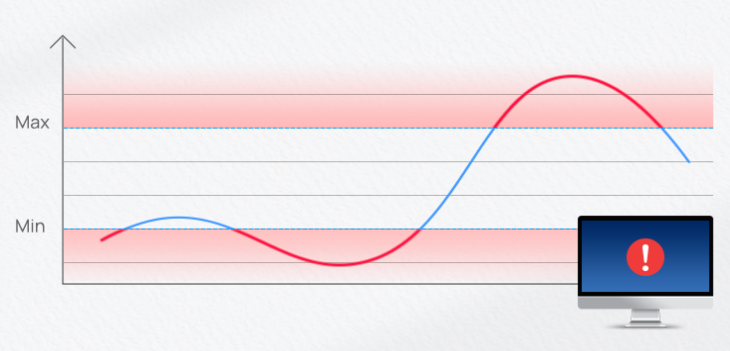

Current Threshold Alert
Set minimum and maximum current thresholds, and receive instant alarms upon threshold triggers for swift action.

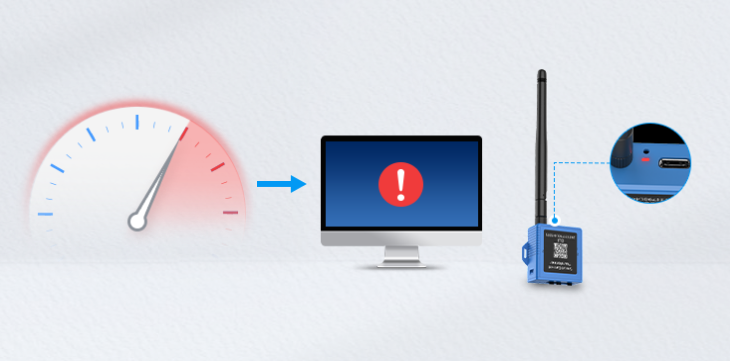

Over-Current Alert
Receive instant alerts when the actual current exceeds the rated limit, accompanied by a smart LED indicator flashing every 2 seconds for swift visual confirmation of the alarm status.
Temperature Threshold Alert
An external wire temperature sensor is available, triggering alerts when the wire temperature reaches a set threshold.
Typical Applications
Specifications
Brand
Milesight
Manufacturer Part Number
CT305-915M
Frequency
AU915/AS923
Tx Power
20dBm
Sensitivity
-137dBm @ 300bps
Detection Parameter
RMS Current
Sampling Frequency
3.3 kHz
Working Frequency
50~60Hz
Rated Primary Current
500 Arms
Start Current
30 Arms
Ingress Protection
IP30
Accuracy
±1 %
Resolution
1 mA
Temperature Sensor
Measuring range: -20°C ~ 100°C
Antenna Connector
1 × 50 Ohm SMA Connector (Center PIN: SMA Female)
Transceiver Dimensions
38 × 39.7 × 16 mm
CT Clamp Dimensions
65.52 × 90 × 43 mm
CT Clamp Wire Max Wire Diameter
36.6 mm
Insulation Voltage
3kVac(r.m.s)(1mA/1min)
Extension Cable Length
100 cm
Operating Temperature
-20°C~70°C
