Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter

Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter

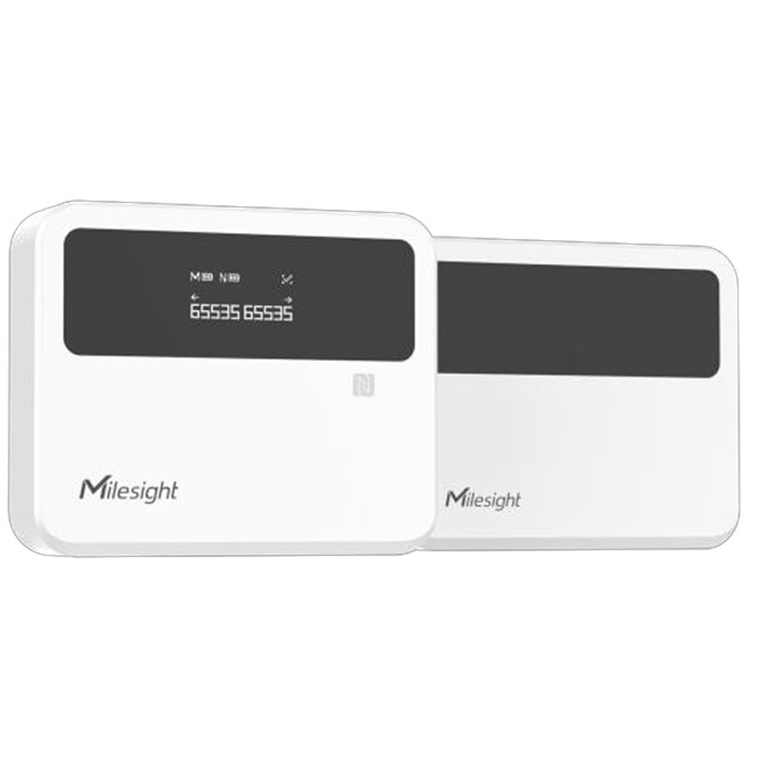

Milesight VS360 is a people counting sensor that is based on IR Breakbeam technology. Equipped withtwodevices,the principle is that the target blocks the infrared beam by detecting the area to achieve thepurposeofcounting, so it is not affected by the ambient temperature and the color of the target clothes, andit hasstrongadaptability. Adjusting the current of the node device reduces the power consumption and extendsthebatterylife. As a Milesight D2D controller, the VS360 seamlessly communicates with other Milesight D2Dagentdevices, establishing more possible connections and paving the way for smoother operations.

With easy configuration and wireless detection, the VS360 facilitates simple deployment andconnectivity.Compliant with the Milesight LoRaWAN® gateway and Milesight Development Platform, users canknowthenumber of passage people and trigger other sensors or appliances easily.

- Bi-Directional People Counting
- Leveraging Infrared Beams
- Strong Environmental Adaptability
- Cost-Effective Accurate Performance
- 100% Privacy Protection (GDPR Compliant)
- Long Battery Life up to 3 Years
- Wireless Deployment

Bi-Directional People Counting

Working as pair, the VS360 can smartly identify and calculate the inbound and outbound at the entryway as one passes by.

Infrared Break Beam Technology

The infrared break beam technology involves the principle of crossing the invisible line between the transmitter and receiver, accurately counting foot counts.

High Measuring Accuracy

VS360 offers pinpoint precision in foot traffic counting with an accuracy of up to 99% for single person detection, and up to 85% accuracy when there is more than one person.

*Accuracy may be affected when walking side by side.

100% Anonymous Detection

Throughout the people counting process, the sensor relies on "breaking" the infrared beams, where neither personal or sensitive information of any kind will be collected. Its GDPR compliant!

Strong Environmental Adaptability

VS360 operates with high precision even with slight rise in temperature or in complete darkness, offering consistent performance during day and night.

* It is advisable to place the device away from direct sunlight and items that may cause reflections to ensure accurate results.

Wireless Deployment

The exclusive Milesight LoRa®-based protocol allows the people counter to easily communicate with other Milesight LoRaWAN® devices within 1 second. The facilities like lights can be intelligently switched through the linkage to realize accurate, timely, and automatic responses, bringing easier and smarter extended performance.

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas.

High Compatibility: compliant with standard LoRaWAN® gateways and network servers.

Application Scenarios

The VS360 is specially designed for areas that may or are exposed to temperature fluctuations and scenarios where ceiling mount is unavailable.
