TP-Link VIGI NVR1004H 4K 4 Channel Network Video Recorder

Supports up to 1x 10TB HDD

PB Tech price

NZD $ 86 .09

$ 86 .09

TP-Link VIGI NVR1004H 4K 4 Channel Network Video Recorder

Supports up to 1x 10TB HDD

Brand: TP-Link
MPN: VIGI NVR1004H
Part #: CCTTPL10042
UPC:

PB Tech price

NZD $ 86 .09

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 09 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

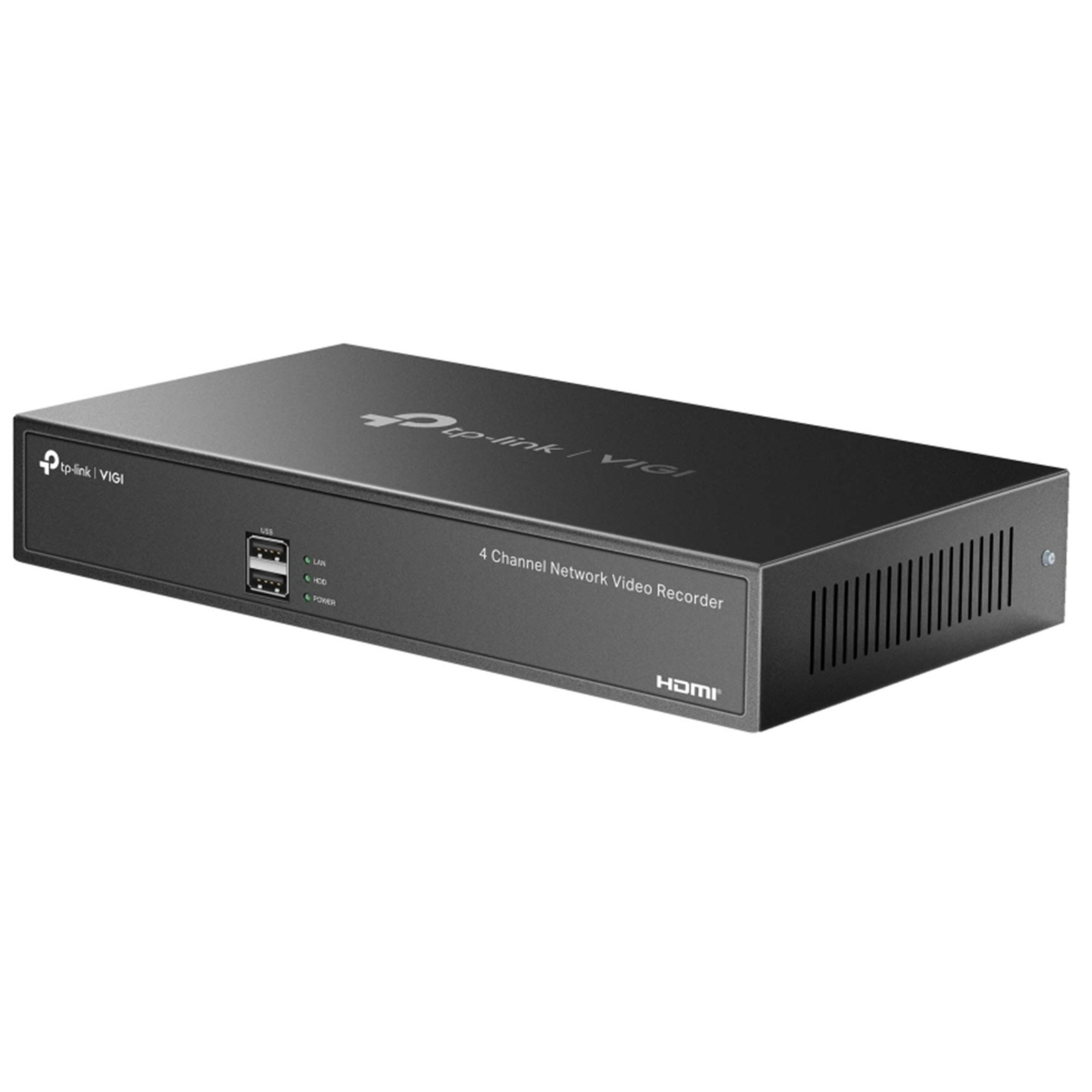

Click or hover over image to enlarge

Brand: TP-Link
MPN: VIGI NVR1004H
Part #: CCTTPL10042
UPC:

Be the first to review this product

HDD Bays

Not Specified

Max Camera Resolution

8 MP

Max Cameras Supported

Video Recorder Type

NVR

View full specs

Returns & Warranty Bulk Quote Print Page

Features

VIGI 4 Channel Network Video Recorder

- 4-Channel Live View and 4K HDMI Video Output
- 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
- 4-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 SATA Interface (up to 10 TB) *
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring

Specifications

VIDEO AND AUDIO

IP Video Input

4-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4

DECODING

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback

4-Channel

Capability

2-ch @ 8MP, 4-ch @ 4MP

RECORD MANAGEMENT

Record Mode

- Manual Recording
- Scheduling Recording
- Motion Detection Recording

Playback Mode

- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback

Backup Mode

- Regular Backup
- Video Clip Backup

Playback Function

- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off

NETWORK

Protocol

UPnP (Plug and Play), NTP (Network Timing)

Mobile Phone Access

Android, iOS

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

EXTERNAL INTERFACE

Network Interface

1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2× USB 2.0

Audio Interface

1, Audio In; 1, Audio Out

Power

1× DC Jack

Reset Button

HDMI

VGA

HARD DISK

SATA

1 SATA Interface

Capacity

Up to 10 TB Capacity for Each HDD*

GENERAL

Storage Temperature

-40-70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Contents

- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Rubber Feet
- Quick Installation Guide

Working Temperature

- NVR: -10-55 °C
- Power Adapter: 0-40 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions( W X D X H )

246.2 × 148.2 × 45 mm

External Power Supply

DC 12V/1.5A

Net Weight

0.59 kg

Gross Weight

0.95 kg

Power Consumption

4.25 W (Without Disk)

Manufacturer Part No:

VIGI NVR1004H

Brand:

TP-Link

Product Type:

Network Video Recorder

UPC

Product Family:

VIGI

Shipping Weight:

0.2 kg

PB Part No:

CCTTPL10042

Product Model:

NVR1004H

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
