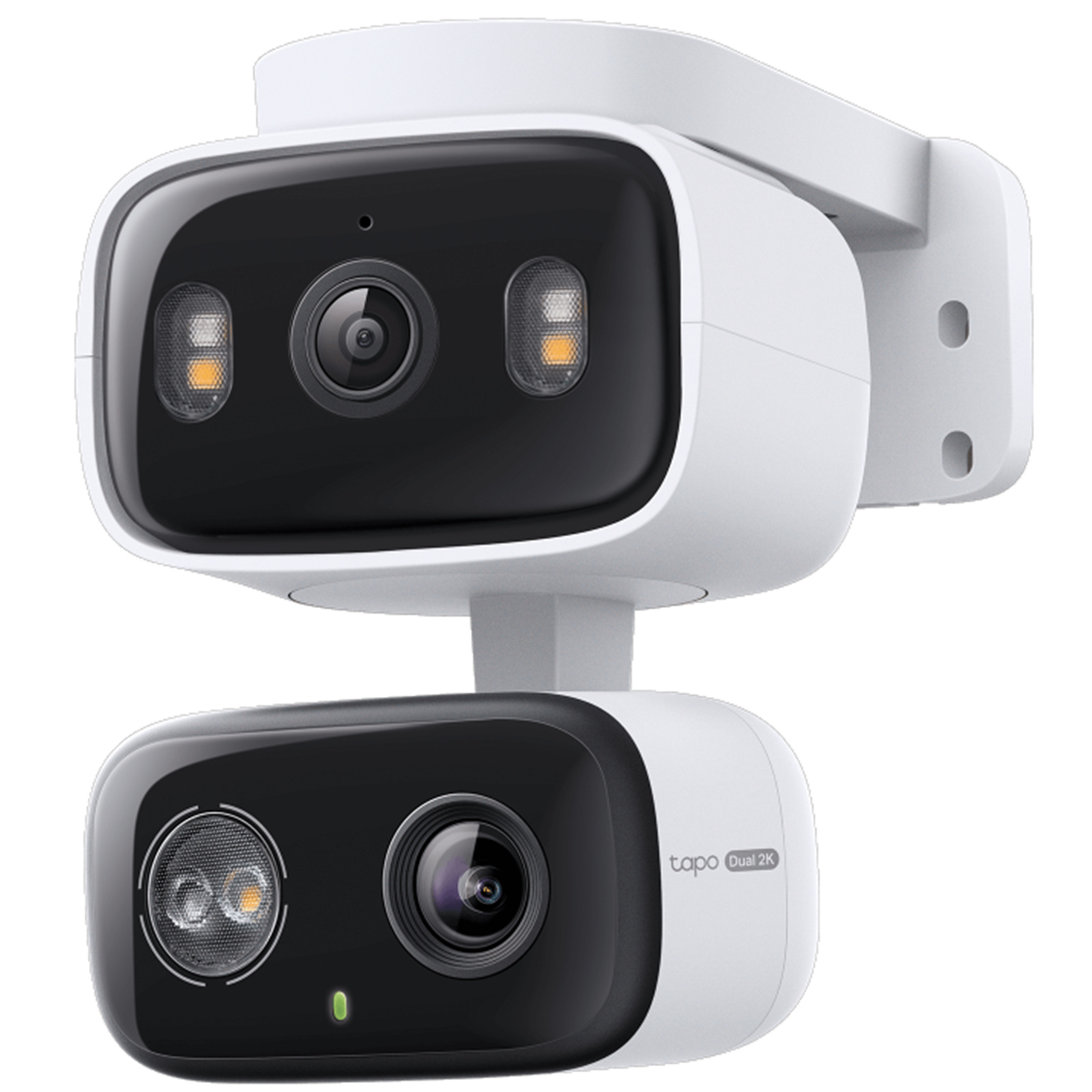

TP-Link Tapo C246D 3MP/2K Dual Lens Outdoor PT Wi-Fi Camera
Two-Way Audio / Smart Night Vision / One-Tap Smart Focus / 125° FOV wide-angle lens and 6mm telephoto lens
TP-Link Tapo C246D 3MP/2K Dual Lens Outdoor PT Wi-Fi Camera
Two-Way Audio / Smart Night Vision / One-Tap Smart Focus / 125° FOV wide-angle lens and 6mm telephoto lens
- Brand: TP-Link
- MPN: Tapo C246D
- Part #: CCTTPL2461
- UPC:
- Brand: TP-Link
- MPN: Tapo C246D
- Part #: CCTTPL2461
- UPC:
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular WiFi Cameras





TP-Link Tapo C246D 3MP/2K Dual Lens Outdoor PT Wi-Fi Camera Two-Way Audio / Smart Night Vision / One-Tap Smart Focus / 125° FOV wide-angle lens and 6mm telephoto lens
- Brand: TP-Link
- MPN: Tapo C246D
- Part #: CCTTPL2461

Product URL: https://www.pbtech.com/pacific/product/CCTTPL2461/TP-Link-Tapo-C246D-3MP2K-Dual-Lens-Outdoor-PT-Wi-F
Features
Indoor/Outdoor Dual Lens Pan/Tilt Security Camera
- 2K 3MP Dual Lens - Capture the full picture with dual 2K high definition optics, monitoring two separate areas at the same time with just one device. Engineered to minimize blind spots for optimal coverage.
- Wide-angle & Telephoto Lens - With 125° FOV wide-angle lens and 6mm telephoto lens, it ensures all-around awareness and down-to-the-detail protection of your home.
- Synchronized Smart Tracking - When the fixed lens detects events, the pan/tilt lens will automatically pivot to focus on and track the moving object.
- One-Tap Smart Focus - Select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
- Flexible Indoor and Outdoor Placement - From the backyard to the nursery, lP65 weatherproofing provides dependable, crystal-clear security-indoors or outdoors, rain or shine.
- Free AI Detection & Notification - Get instant push notifications when motion, person, pets, vehicles or even baby cry are detected, there is no additional fee to use it.
- Works with Alexa, Google Home & Samsung SmartThings - Fully compatible with Amazon Alexa and Google Assistant, use your simple voice command to view Tapo indoor/outdoor home security wi-fi camera live stream.
- Smart Night Vision -Choose from vibrant full-color with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on Al light detection for optimal clarity in any nighttime scenario.
- Secure Local or Cloud Storage - Save footage continuously on up to a 512 GB microSD card (not included) or subscribe to Tapo Care for cloud storage which saves 30-day video.
- 2-Way Audio - Engage in seamless, real-time conversations with our two-way audio feature, designed for minimal latency and exceptional sound clarity.
Flexible Dual Coverage
The bottom telephoto lens features automatic pan and tilt to follow motion or shift focus between different areas as needed. The top wide-angle lens is fixed but can be manually adjusted during installation 360° to allow for adjustable viewing.*
Synchronized Smart Tracking: Seamlessly Follows Movement
The two cameras dynamically work together to ensure you never miss a moment - when the fixed lens detects events like motion, people, and pets, the pan/tilt lens will automatically pivot to focus on and track the moving object.
Magnify Details with Telephoto Lens
The 6mm telephoto lens delivers 3× clarity compared to standard lens and supports up to 10.8× digital zoom, ensuring every detail is clearly visible when you zoom in.
Panoramic Coverage of Two Areas, Simultaneously
Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.
Instant Detail with One-Tap Smart Focus
One tap for instant clarity: select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
Smarter, More Accurate Notifications Powered by AI
Stay informed with smart AI detection that recognizes and notifies you of people, pets, vehicles, and even baby cries - all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.
Smart & Versatile Night Vision Modes
Choose from vibrant full-color with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on AI light detection for optimal clarity in any nighttime scenario.
360° Patrol, Preset Views & Custom Schedules
Activate Patrol Mode for continuous 360° surveillance, define up to 8 specific preset viewing points, and set personalized schedules to monitor specific areas at certain times.
Engineered for Weather Resilience
Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.
Pair with Smart Assistants
Includes seamless integration with Amazon Alexa, Google Assistant, and Samsung SmartThings. View live streams on your Echo Show or Chromecast.
Two-Way Audio
Built-in premium microphone and speakers ensure you can hear and be heard with exceptional clarity.
Install Anywhere: Adaptable Indoor & Outdoor Monitoring
Tapo C246D can be positioned upright or upside down, placed discreetly on a desk, securely mounted on a wall, affixed to the ceiling, or even held by a rod - engineered to adapt and provide reliable monitoring in any indoor or outdoor setting.
Specifications
CAMERA
Image Sensor
1/2.8" Progressive Scan CMOS Starlight Sensor
Lens
Fixed Lens
Focal Length: 2.8 mm
Aperture: F1.6
Field of View: 125.5° (Diagonal), 107.8° (Horizontal), 57.8° (Vertical)
PT Lens
Focal Length: 6.0 mm
Aperture: F1.6
Field of View: 67.1° (Diagonal), 57.8° (Horizontal), 30.1° (Vertical)
Night Vision
850 nm IR LED (40 ft / 12 m), Color Night Vision
Day/Night Switch
IR-Cut Filter with Auto-Switching
Interface & Button
1× RESET Button
1× microSD Card Slot (Up to 512 GB)
VIDEO & AUDIO
Maximum Resolution
2304 × 1296 px
Frame Rate
15 fps
Digital Zoom
10.8×
Video Compression
H.264
Live View
Yes
Image Enhancement
3DNR
WDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
microSD Card Slot on Camera (Up to 512 GB)
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
DETECTION and NOTIFICATIONS
AI Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Baby Cry Detection
Glass Break Detection
Dog Barks Detection
Cat Meows Detection
Camera Tampering
Activity Zones
Yes
*Works with Motion Detection, Person Detection, Pet Detection, and Vehicle Detection
Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)
NETWORK
Network Connectivity
Connect via Wi-Fi
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
RTSP
Yes
ONVIF
Yes
Transmission Rate
11b: 11 Mbps
11g: 54 Mbps
11n: 72.2 Mbps
SECURITY
Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
PWPA/WPA2-PSK
POWER
Power Source
5 V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz, 0.3A
Output Voltage
5.0 V, 2.0 A (Type-C Power)
Power Cord Length
3 m
Typical Power Consumption
3.0W
Maximum Power Consumption
9.0 W
GENERAL
Smart Integration
Google Assistant, Amazon Alexa, Samsung SmartThings
Weather Resistance
IP65
Mounting Options
Tabletop
Wall-Mounted
Ceiling-Mounted
Pole-Mounted
Operating Temperature
-20 ºC ~ 50 ºC (-4 °F ~ 122 °F)
Storage Temperature
-40 ºC ~ 60 ºC (-40 °F ~ 140 °F)
Operating Humidity
10% ~ 90% RH, Non-condensing
Storage Humidity
0 ~ 90% RH, Non-condensing
Weight
9.77 oz / 277 g
Package Content
Tapo C246D Camera × 1
Mounting Bracket × 1
Mounting Template Sticker × 1
Mounting Anchors × 4
Mounting Screws × 4
Power Adapter × 1
3 m USB Adapter Cable × 1
Quick Start Guide
Dimensions( W X D X H )
3.07*3.02*4.20 in (78*76.83*106.83 mm)
