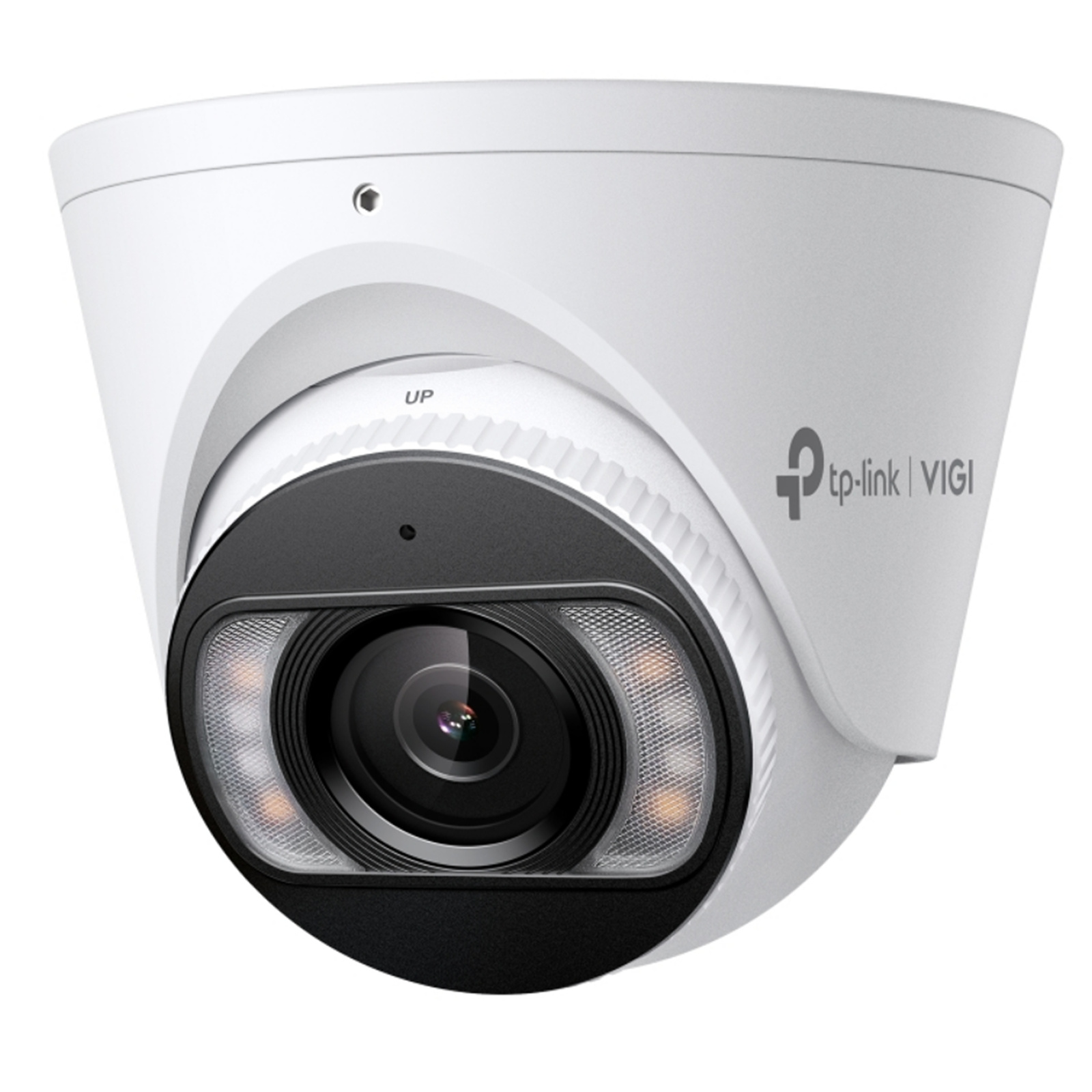

TP-Link VIGI Insight S485(2.8mm) 8MP/4K Outdoor Full-Color Turret Network Camera

Human & Vehicle Classification / People & Vehicle Analytics / 12V DC&PoE

Brand: TP-Link
MPN: Insight S485(2.8mm)
Part #: CCTTPL48501
UPC:

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: Insight S485(2.8mm)
Part #: CCTTPL48501
UPC:

Be the first to review this product

Max Video Resolution

3840 x 2160

Two-Way Audio

Yes

Wireless Technology

N/A

Memory Card Support

Up to 512GB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Colour

Camera Megapixels

2 Megapixels

Indoor/Outdoor Use

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Adding a Micro SD card? See TP-Link compatible cards.

Features

People & Vehicle Analytics§

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.?

- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

- White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*

Specifications

CAMERA

Image Sensor

1/2.7" Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

LENS

Type

Fixed Focal Lens

Focal Length

2.8/4 mm

Aperture

F1.6

FOV

- 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

Lens Mount

M12*P 0.5

DORI Distance

- 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

Angle Adjustment (Manual)

Range

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

ILLUMINATOR

IR LED

Quantity: 4
Range: 30m
Wavelength: 850nm

White LED

Quantity: 4
Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution

3840 X 2160

Main Stream

- Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

- Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720

- Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Sub-Stream

- Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

- Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

- Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile*

H.265+

Main Stream Supported*

Video Bit Rate

Main Stream: 256 Kbps to 8 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR

= 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF

Yes

API

ONVIF Profile S/T/G

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS

Web Browser

Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event

- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- People Detection
- Vehicle Detection
- Abnormal Sound Detection
- Scene Change Detection

Basic Event

- Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
- Video Tampering Detection
- Exception ( Illegal Login)

Alarm Linkage

- Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing

Linkage Method

N/A

Output Notification

Message Push
Deep Learning Function

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm

N/A

Reset Button

Yes

Power

DC Power Port

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**

Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker

Yes

Audio

N/A

GENERAL

Operating Temperature

-30-60 °C

Storage Temperature

-40-60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Package Contents

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

Material

Metal

Net Weight

0.48 Kg

Power Supply

12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.5 W

Protection

IP67

Product Dimensions (L x W x H)

4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm)

Certifications

CE, NTRA, VCCI, KC, BSMI, FCC, IC

Manufacturer Part No:

Insight S485(2.8mm)

Brand:

TP-Link

Product Type:

Outdoor Full-Color Turret Network Camera

UPC

Product Family:

VIGI

Shipping Weight:

1 kg

PB Part No:

CCTTPL48501

Product Model:

Insight S485(2.8mm)

Warranty: 12 months *
