Ubiquiti UniFi Access Gen 2 Starter Kit (UA-G2-SK) - UniFi Dream Machine Pro required

PB Tech price

NZD $ 516 .69

$ 516 .69

Ubiquiti UniFi Access Gen 2 Starter Kit (UA-G2-SK) - UniFi Dream Machine Pro required

Brand: Ubiquiti
MPN: UA-G2-SK
Part #: CCTUBI8223
UPC: 810084691670

PB Tech price

NZD $ 516 .69

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 19 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: UA-G2-SK
Part #: CCTUBI8223
UPC: 810084691670

Be the first to review this product

Colour

White

Returns & Warranty Bulk Quote Print Page

Features

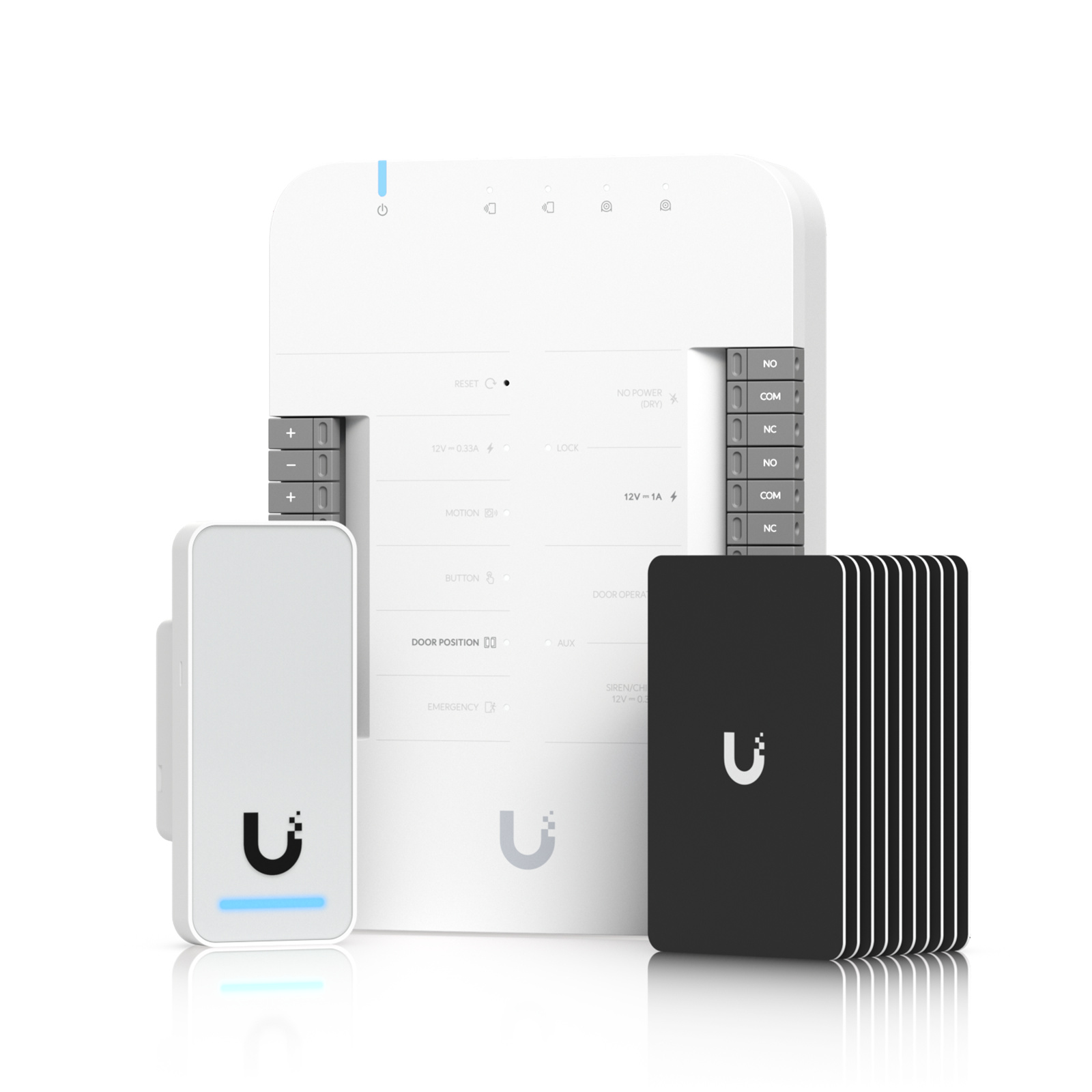

Ubiquiti UniFi Access G2 Starter Kit (UA-G2-SK)

The Ubiquiti UniFi Access G2 Starter Kit (UA-G2-SK) provides an easy entry point into the UniFi Access system, specifically designed for single-door access control. This kit includes essential components like the UniFi Access Door Hub, an Access Reader G2, and ten UniFi Access Cards, streamlining the access management process. The Access Reader G2 features a robust polycarbonate enclosure for durability.

UA-G2-SK includes:
(1) UniFi Access Door Hub
(1) Access Reader G2
(10) UniFi Access Cards

The UA-Hub-Door, a key component of the kit, offers high-speed connectivity with its 10/100/1000 Base-T networking interface and PoE++ support. It's equipped with various input and output options, making it suitable for indoor use and compliant with multiple certifications, ensuring security and reliability. The included UniFi Access Cards simplify secure access management.

Specifications

UA-Hub-Door

Mechanical

Dimensions

174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")

Weight

363 g (12.8 oz)

Enclosure material

Polycarbonate

Mounting material

Polycarbonate

Hardware

Networking interface

(5) 10/100/1000 Base-T

Power method

PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU

Max. power consumption

Without PoE output: 30W
With PoE output: 50W

PoE input

50V DC, 1A

PoE output

PoE passthrough, (4) PoE, 50V DC, total 20W

Button

(1) Factory-reset

LEDs

System: white/blue
Output relays: white

Digital input

Request to exit/request to enter/remote release/door position sensor

Dry output relay

Lock: 30V DC, 1A
Aux: 30V DC, 1A

Powered output relay

Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A

Operating environment

Indoor use only

Operating temperature

0 to 40° C (32 to 104° F)

Operating humidity

5 to 95% noncondensing

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: 1

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Door002, V01

Wiring Information

Typical installation (Shielded)

DC power input: Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)
Door position switch: Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)
Request to exit: Belden 8750 18 AWG 2 (152.5 m/500 ft)

Wiring gauge requirements (AWG)

Total length to device / Output load current at 12V DC

6.1 m (20 ft)
100mA: 22
250mA: 22
500mA: 22
1A: 18

15.2 m (50 ft)
100mA: 22
250mA: 22
500mA: 22
1A: 18

30.5 m (100 ft)
100mA: 22
250mA: 22
500mA: 18
1A: 18

PoE cabling requirements

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable.

LEDs

PoE in

Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware

PoE out

Off: Not connected or no data link
Steady blue: Connected and data link on

UA-G2

Mechanical

Dimensions

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

Weight

82 g (2.9 oz)

Enclosure material

Polycarbonate, glass

Mounting

In wall, gang box

Weatherproofing

IP55

Hardware

Networking interface

(1) 10/100 MbE RJ45 port

Connectivity

BLE 4.1

Power method

PoE

Supported voltage range

48V DC

Max. power consumption

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Speaker

(1) 8 ohm, 0.7W

LEDs

R/G/B/W

Button

(1) Factory-reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC standards

ISO 14443A, 14443B, 15693

NFC technology

NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire

Operating temperature

-30 to 45° C (-22 to 113° F)

Operating humidity

5 to 90% noncondensing

Certifications

CE, FCC, IC

UA-Card

Mechanical

Dimensions

85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")

Weight

5 g (0.18 oz)

Format

ISO 7810 ID-1

NFC frequency

13.56 MHz

NFC technology

ISO/IEC 14443 Type A
MIFARE DESFire
UniFi Access Proprietary Security Protocol

Manufacturer Part No:

UA-G2-SK

Brand:

Ubiquiti

Product Type:

UPC

810084691670

Product Family:

UniFi Access

Shipping Weight:

1 kg

PB Part No:

CCTUBI8223

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
