iBASE SI-122-N Win10 IoT Digital Signage Player with MBD122 w/ AMD GX-224IJ 2.4GHz APU, 1x 4GB DDR4 2133 SO-DIMM memory, M.2 64GB, 84W power adaptor (RoHS)
Out of stock
iBASE SI-122-N Win10 IoT Digital Signage Player with MBD122 w/ AMD GX-224IJ 2.4GHz APU, 1x 4GB DDR4 2133 SO-DIMM memory, M.2 64GB, 84W power adaptor (RoHS)
- Brand: iBASE
- MPN: SI-122-N
- Part #: DGSIBA122N
- UPC:
- Brand: iBASE
- MPN: SI-122-N
- Part #: DGSIBA122N
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





iBASE SI-122-N Win10 IoT Digital Signage Player with MBD122 w/ AMD GX-224IJ 2.4GHz APU, 1x 4GB DDR4 2133 SO-DIMM memory, M.2 64GB, 84W power adaptor (RoHS)
- Brand: iBASE
- MPN: SI-122-N
- Part #: DGSIBA122N

Product URL: https://www.pbtech.com/pacific/product/DGSIBA122N/iBASE-SI-122-N-Win10-IoT-Digital-Signage-Player-wi
Features
The SI-122-N dual-HDMI fanless signage player is equipped with 3rd Generation AMD Embedded G-Series SoC that features high processing performance and optimized for demanding graphics requirements.
The latest SI-122-N dual-HDMI player delivers smooth, high-definition video for each display to bring viewers the ultimate experience in picture quality. The SI-122-N is recommended for smart signage displays in high-traffic areas such as restaurants, banks, airports and shopping malls to convey dynamic information and targeted promotions that can be updated at strategic times of the day.
The SI-122-N comes with the power-efficient GX224IJ AMD Dual-Core SoC processor with AMD Radeon™ R7E graphics to provide dynamic and engaging signage content. It supports a system memory of up to 16GB and rich I/O connectivity with an M.2 B key for storage, options for Wi-Fi, Bluetooth and 4G, a full-size Mini-PCIe, a SIM card slot, and four USB connectors. Power is provided by an 84W adaptor with +12V DC output.

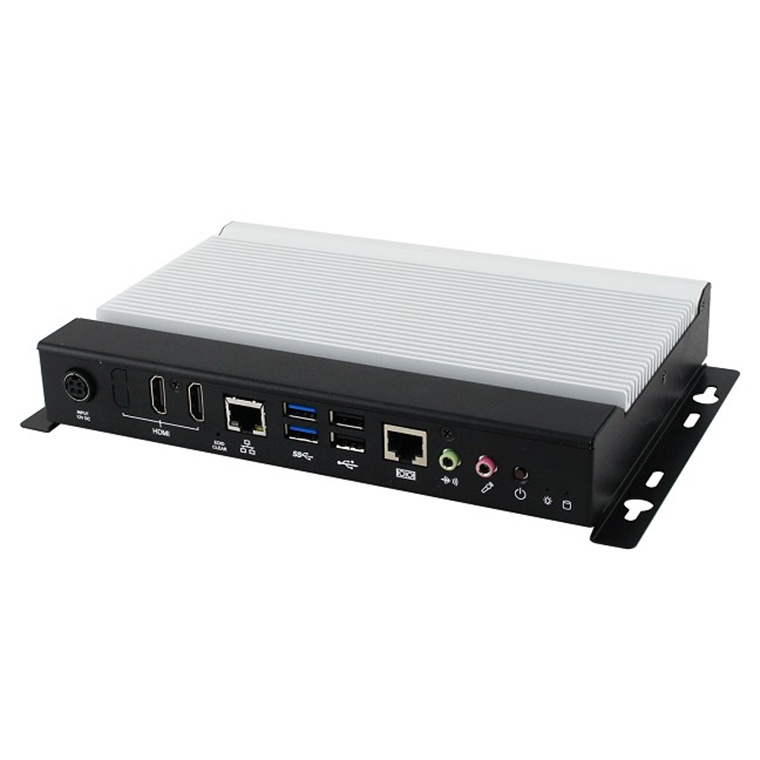

Measuring 216mm by 150mm by 33mm, the compact SI-122-N has a black and white chassis with a system bracket. Like other IBASE signage player models, it supports iSMART auto-scheduling and power resume functions, as well as EDID emulation to prevent screen convergence issues due to cable disconnections or erroneous display settings.
Specifications
System Mainboard
MBD122
CPU Type
3rd Generation AMD Embedded G-Series APU
*The maximum TDP supported is 15W*
CPU Socket
FP4 BGA package, 37x29mm, 0.8mm pitch
Chipset
AMD integrated SOC
Memory
1x DDR4 SO-DIMM 2133Hz, Max. 16GB
Graphics
AMD Radeon™ (R4E) HD 10000 graphics (up to 3CU)
LAN
1x RTL8111G Gigabit LAN controller
Expansion Slots
1x M.2 B key(3042) for storage, Wi-Fi, Bluetooth, 4G options
1x Mini PCI-E (Full-size) for Wi-Fi, Bluetooth, 4G, or TV tuner options
1x SIM card slot
I/O Interface
2x HDMI with Hardware EDID emulation
2x USB 3.0
2x USB 2.0
1x RJ45 for Gigabit LAN
1x RJ45 for RS-232 serial port
2x Audio connectors for Mic in / Line out
Power / HDD LED, 1x power button
1x power jack connector
Auto Control and Monitoring Watchdog Timer:
256 segments, 0, 1, 2...255 (sec/min)
Power Requirement
+12V DC
Construction
Aluminum + SGCC
Weight
1.5Kg (3.31lbs)
Chassis Color
Black and white
Storage
1x M.2 M-Key(2280)
Power Supply
84W power adaptor
Mounting
Standard system bracket
Dimensions
216mm(W) x 150mm(D) x 33mm(H)
8.5"(W) x 5.91"(D) x 1.3"(H)"
Operating Temperature
0°C~ 45°C (32°F~113°F)
Storage Temperature
-20°C ~ 80°C (-4°F~176°F)
Relative Humidity
10%~90% (non-condensing)
Vibration mSATA:
5 grms / 5~500Hz / random operation
Certification
CE, FCC class B, cULus & CCC
Operating System Support
Win10 32/64-bit, Win10 32/64-bit Enterprise, Win 7 32/64-bit & WES 7 32/64-bit
