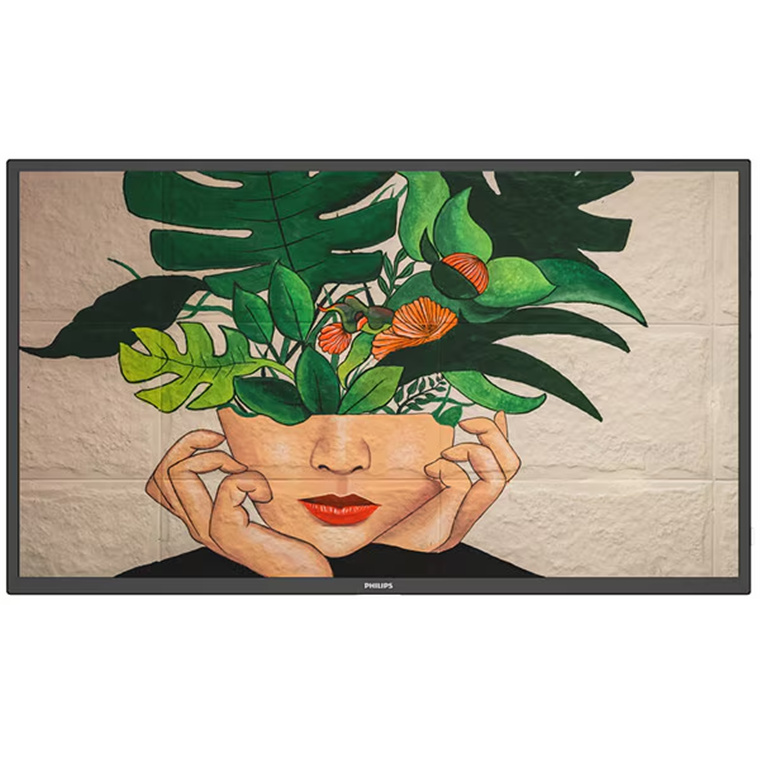

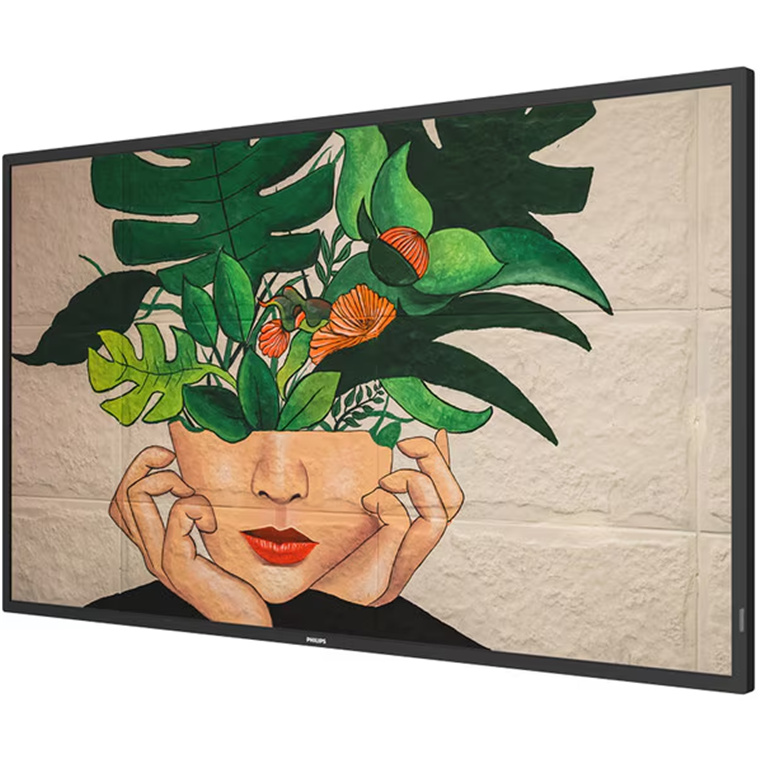

Philips 43BDL4550D 43" Digital Signage display - 500nit / 24x7
- Brand: Philips
- MPN: 43BDL4550D
- Part #: DGSPHS32543

Product URL: https://www.pbtech.com/pacific/product/DGSPHS32543/Philips-43BDL4550D-43-Digital-Signage-display---50
Features
Save and play content with internal memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.
Manage settings of multiple displays with CMND & Control
With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.
Create and update content with CMND & Create
Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.
CMND: Take control of your displays
A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.
Keep your content up and running with FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.
SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Android SoC processor. Native and web apps
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.
Ensure your content is running with automatic screenshots
Content is king, and with the automatic screenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.
Connect and control your content via the cloud
Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.
Specifications
Connectivity
Audio output
3.5mm jack
Video input
Display Port1.2 (x1)
DVI-I (x 1)
HDMI 2.0 (x2)
USB 2.0 (x2)
Audio input
3.5 mm jack
Video output
DisplayPort 1.2 (x1)
HDMI 2.0 (x1)
External control
RJ45
RS232C (in/out) 2.5 mm jack
IR (in/out) 3.5 mm jack
WiFi
dual antenna 2,4Ghz and 5Ghz
Picture/Display
Diagonal screen size (metric)
108.0 cm
Diagonal screen size (inch)
42.5 inch
Aspect ratio
16:9
Panel resolution
3840 x 2160
Pixel pitch
0.2451 x 2451 mm
Optimum resolution
3840 x 2160 @ 60Hz
Brightness
500 cd/m²
Display colors
1.07 G Billion
Contrast ratio (typical)
1200:1
Dynamic contrast ratio
500,000:1
Response time (typical)
8 ms
Viewing angle (horizontal)
178 degree
Viewing angle (vertical)
178 degree
Picture enhancement
3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
3D MA deinterlacing
Dynamic contrast enhancement
Progressive scan
Panel technology
IPS
Operating system
Android 8.0
Convenience
Placement
Landscape (24/7)
Portrait (24/7)
Tiled Matrix
Up to 10 x 15
Screen saving functions
Pixel Shift, Low Bright
Keyboard control
Hidden
Lockable
Signal loop through
RS232
IR Loopthrough
DisplayPort
HDMI
Energy saving functions
Smart Power
Network controllable
RS232
WiFi protocol
a b g n, 802.1x
Sound
Built-in speakers
2 x 10W RMS
Power
Mains power
100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical)
83 W
Consumption (Max)
123 W
Standby power consumption
<0.5 W
Energy Label Class
G
Supported Display Resolution
Computer formats
1920 x 1080, 60Hz
1024 x 768, 60Hz
1280 x 1024, 60Hz
1280 x 720, 60Hz
1440 x 900, 60 Hz
1600 x 900, 60Hz
1680 x 1050, 60Hz
3840 x 2160, 30, 60Hz
640 x 480, 60Hz
800 x 600, 60Hz
Video formats
1080i, 50, 60Hz
576i, 50Hz
576p, 50Hz
480p, 60Hz
480i, 60Hz
1080p, 50, 60Hz
2160p, 24, 30, 60Hz
720p, 50,60 Hz
Operating conditions
Altitude
0 ~ 3000 m
Temperature range (operation)
0 ~ 40 °C
MTBF
50,000 hour(s)
Temperature range (storage)
-20 ~ 60 °C
Humidity range (operation)[RH]
20 - 80% RH (No condensation)
Humidity range (storage) [RH]
5 - 95% RH (No condensation)
Multimedia Applications
USB Playback Video
MPEG
H.263
H.264
H.265
USB Playback Picture
BMP
JPEG
PNG
USB Playback Audio
AAC
HEAAC
MPEG
Internal Player
CPU
2 x A53 + 2 x A73
GPU
ARM Mali G51
Memory
3GB DDR
Storage
32 GB eMMc
Accessories
Included accessories
Quick start guide
RS232 cable
AC Power Cord
IR sensor cable (1.8M)
Remote Control & AAA Batteries
Included Accessories
AC Switch Cover
Philips logo (x1)
RS232 daisy-chain cable
Screws
USB Cover (x1)
Stand
BM05922 (Optional)
Miscellaneous
On-Screen Display Languages
English
French
German
Spanish
Polish
Turkish
Russian
Italian
Simplified Chinese
Traditional Chinese
Arabic
Japanese
Danish
Dutch
Finnish
Norwegian
Portuguese
Swedish
Regulatory approvals
CE
CCC
RoHS
BSMI
CB
VCCI
CU
EMF
EnergyStar 8.0
ETL
FCC, Class A
PSB
What's in the box
Other items in the box
Quick start guide
RS232 cable
AC Power Cord
IR sensor cable (1.8M)
Remote Control & AAA Batteries
