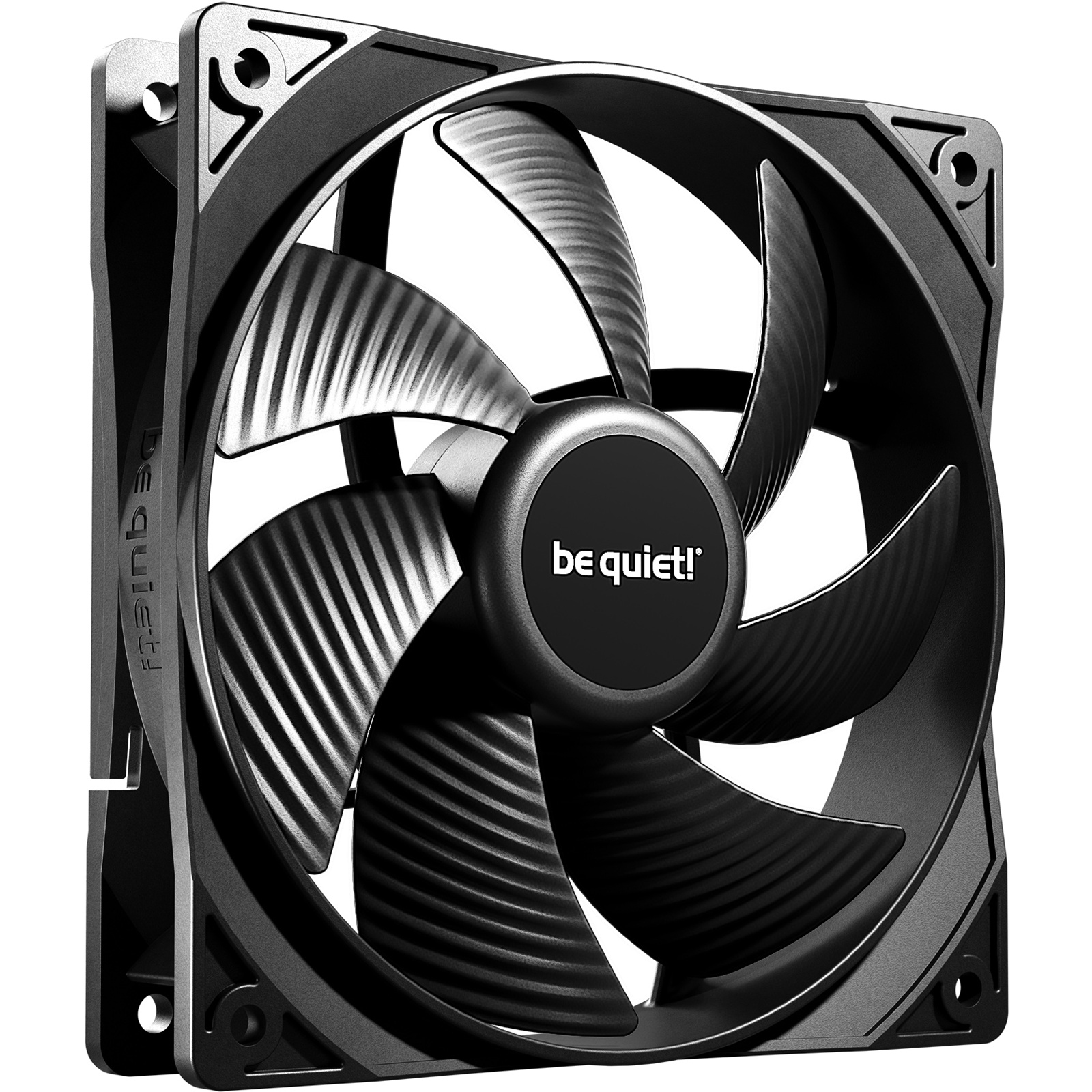

be quiet Pure Wings 3 Black 120mm PWM Case Fan, Noise Level 25.5dBA Max, Airflow Upto 49.9 CFM
be quiet Pure Wings 3 Black 120mm PWM Case Fan, Noise Level 25.5dBA Max, Airflow Upto 49.9 CFM
- Brand: be quiet
- MPN: BL105
- Part #: FANBQT1202
- UPC:
- Brand: be quiet
- MPN: BL105
- Part #: FANBQT1202
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Perfectly fine for my setup, fairly quiet."
"Perfectly fine for my setup, fairly quiet if you don't mess with speed settings."
"really quiet. good air flow. have 4 in case keep temps low. recommend"
COMBO DEALS: Buy Together and SAVE!






Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
$6.50
$6.50


ProsKit SD-9857M DIY Tool 57 IN 1 Screwdriver Set For Cell Phone, Notebook, Electronic Field, Home,...
$29.75
$29.75


Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics,...
$11.54
$11.54
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Case Fans





be quiet Pure Wings 3 Black 120mm PWM Case Fan, Noise Level 25.5dBA Max, Airflow Upto 49.9 CFM
- Brand: be quiet
- MPN: BL105
- Part #: FANBQT1202

Product URL: https://www.pbtech.com/pacific/product/FANBQT1202
Features
PURE WINGS 3 120mm PWM - Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system.
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
OPTIMIZED TO THE MAX - For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM.
PERFECT CASE FAN - Fan blades optimized for high airflow

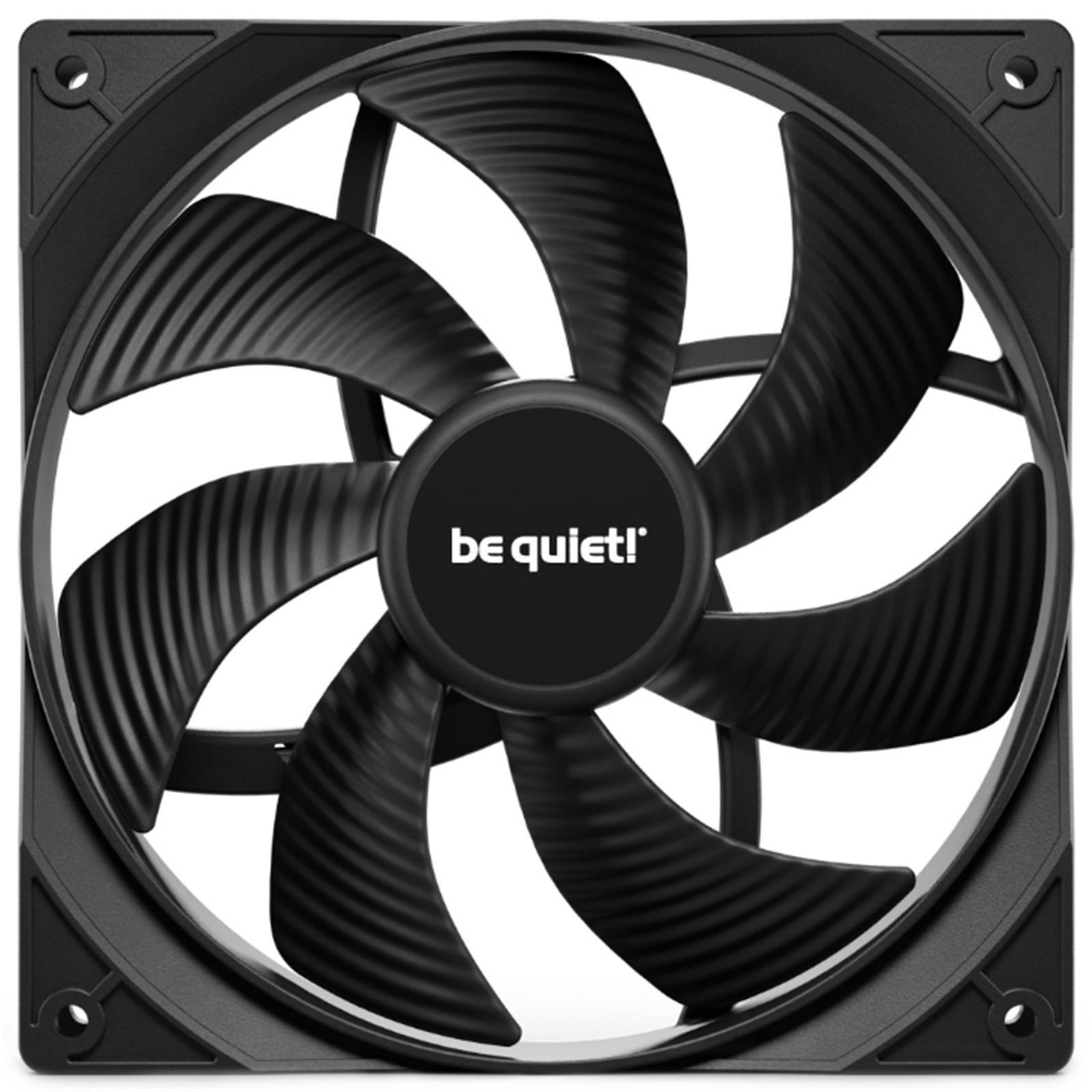

With optimization for maximum airflow, Pure Wings 3 120mm PWM is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 120mm PWM provides the performance that is needed, even in demanding configurations.
ICONIC DESIGN - Streamlined look makes it an instant timeless classic
Pure Wings 3 120mm PWM trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 120mm PWM a timeless classic and elegant addition to every gaming PC.
RIFLE BEARING TECHNOLOGY - Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 120mm PWM is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of a 80,000 hours.
Specifications
General data
Model
Pure Wings 3 120mm PWM
Dimensions (mm)
120
Color option
Black
Lighting
-
Fan speed @ 100% PWM / 12V (rpm)
1600
Noise level @ 100% PWM / 12V (dB(A))
25.5
Air Flow @ 100% PWM / 12V (CFM / m3/h)
49.9 / 84.8
Air Pressure @ 100% PWM / 12V (mm H2O)
1.45
Mechanical specifications
Dimensions (L x W x H), (mm)
120 x 120 x 25
Weight incl. fixed cables (g)
148
Bearing technology
Rifle
Motor technology
4-pole fan motor
Push pin fixing
-
Screw fixing
Yes
Cables / Connectors
Daisy-chain compatible
-
Lighting connector
-
Connector
4-pin PWM
Cable length (mm)
460
Cable sleeve
-
Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h)
49.9 / 84.8
Air Pressure @ 100% PWM / 12V (mm H2O)
1.45
Noise level @ 100% PWM / 12V (dB(A))
25.5
Lifespan (h / 25°C)
80,000
Electrical specifications
Rated Voltage DC (V)
12
Operating Voltage DC (V)
5 - 13.2
Current consumption (A)
0.10
Safety current (A)
0.20
Input power (W)
2.4
Rated Current LED (A)
-
Accessories
Screws
4
Safety certification
Approvals
CE / RoHS / RU / UKCA / WEEE
Environmental directives
RoHS
Yes
WEEE
Yes
Triman
Yes
