be quiet Pure Wings 3 Black 140mm PWM Case Fan, Noise Level 21.9 dBA Max, Airflow Upto 57.4 CFM
- Brand: be quiet
- MPN: BL108
- Part #: FANBQT1402

Product URL: https://www.pbtech.com/pacific/product/FANBQT1402/be-quiet-Pure-Wings-3-Black-140mm-PWM-Case-Fan-Noi?is-review=1
Features
PURE WINGS 3 140mm PWM - Performant, progressive, quiet
With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting companion for your gaming system.
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 140mm PWM can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
OPTIMIZED TO THE MAX - For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 140mm PWM. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 140mm PWM.

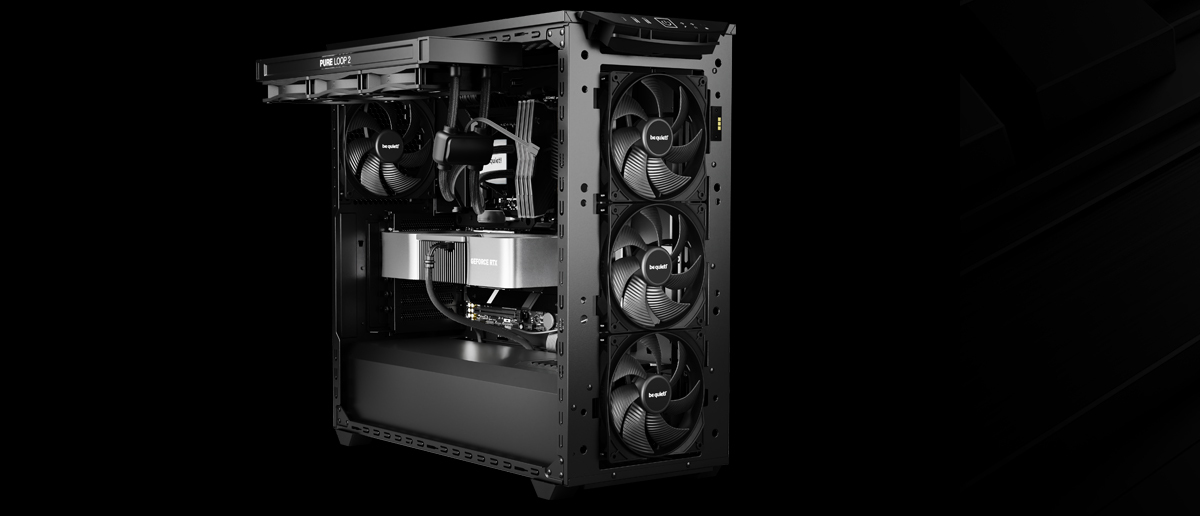

PERFECT CASE FAN - Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed, even in demanding configurations.

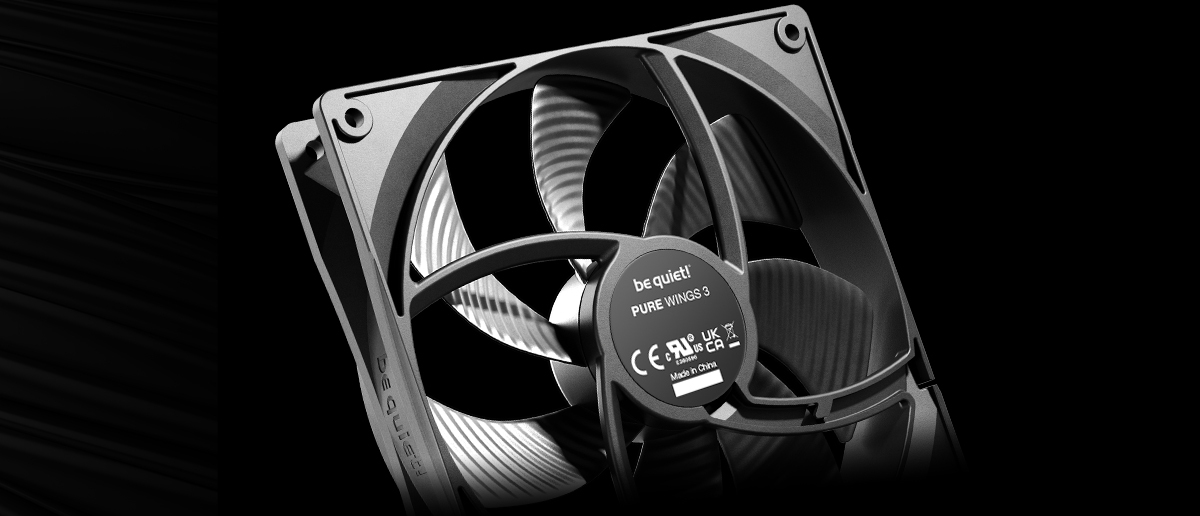

ICONIC DESIGN - Streamlined look makes it an instant timeless classic
Pure Wings 3 140mm PWM trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 140mm PWM a timeless classic and elegant addition to every gaming PC.

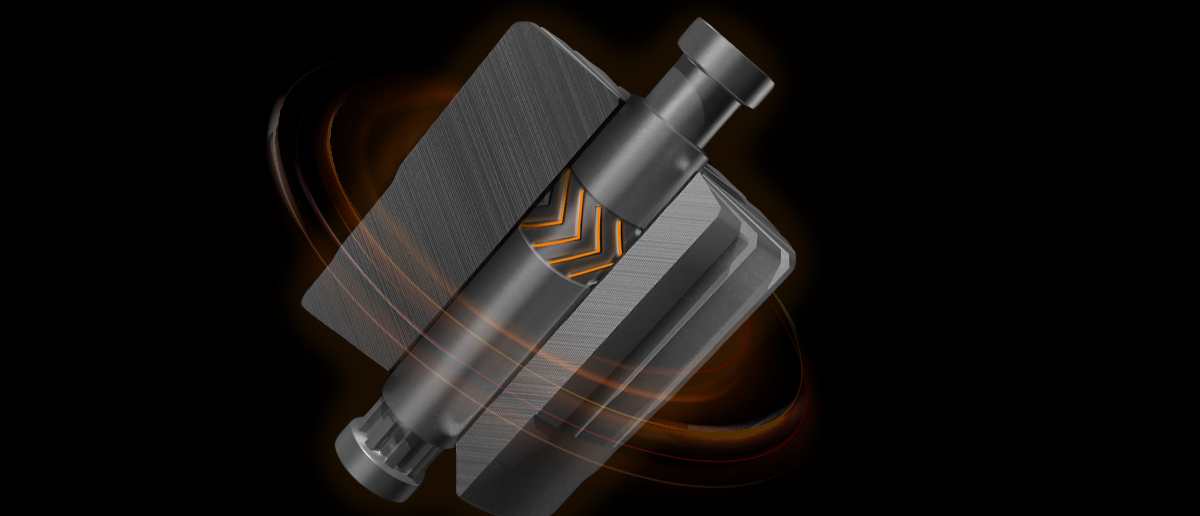

RIFLE BEARING TECHNOLOGY - Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 140mm PWM is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.
Specifications
General data
Model
Pure Wings 3 140mm PWM
Dimensions (mm)
140
Color option
Black
Lighting
-
Fan speed at 100% PWM / 12V (rpm)
1200
Noise level at 100% PWM / 12V (dB(A))
21.9
Airflow at 100% PWM / 12V (CFM / m3/h)
57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O)
0.96
Mechanical specifications
Dimensions (L x W x H), (mm)
140 x 25 x 140
Weight incl. fixed cables (g)
180
Bearing technology
Rifle
Motor technology
4-pole fan motor
Push pin fixing
-
Screw fixing
Yes
Cables / Connectors
Daisy-chain compatible
-
Lighting connector
-
Connector
4-pin PWM
Cable length (mm)
460
Cable sleeve
-
Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h)
57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O)
0.96
Noise level at 100% PWM / 12V (dB(A))
21.9
Lifespan (h / 25°C)
80,000
Zero RPM mode
-
Electrical specifications
Rated Voltage DC (V)
12
Operating Voltage DC (V)
5 - 13.2
Current consumption (A)
0.06
Input current (A)
0.06
Safety current (A)
0.30
Input power (W)
3.6
Rated Current LED (A)
-
Accessories
3-pin to 4-pin 12V-connector
-
12V to 7V adapter
-
12V to 5V adapter
-
Screws
4
Push pins
-
hard plastic washer
-
Others
-
Safety certification
Approvals
CE / RoHS / RU / UKCA / WEEE
Environmental directives
RoHS
Yes
WEEE
Yes
Triman
Yes
