DEEPCOOL AK500 White Digital CPU Cooler 1x 120mm PWM Fan, 158mm Clearance, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
Out of stock
DEEPCOOL AK500 White Digital CPU Cooler 1x 120mm PWM Fan, 158mm Clearance, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
- Brand: DEEPCOOL
- MPN: AK500 DIGITAL WH
- Part #: FANDPC3053
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"Had a lot of over heating problems with the i7s i have used over the last few years( tried water coolers and the biggest fans)this one is very effective once it is set up properly ...view more"
Features
AK500 DIGITAL WH
WELCOME TO THE DIGITAL ERA

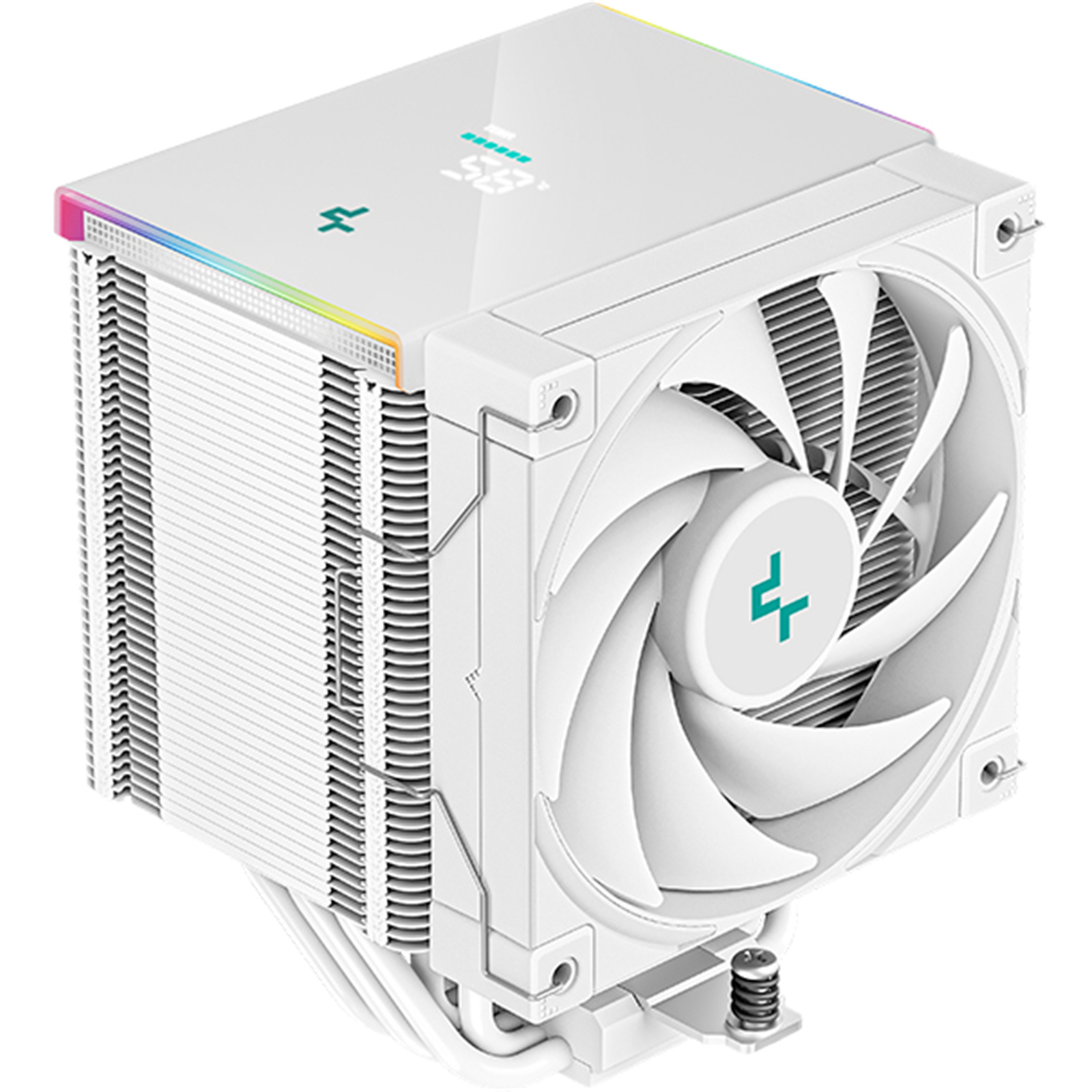

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
PROVEN AK WH DESIGN

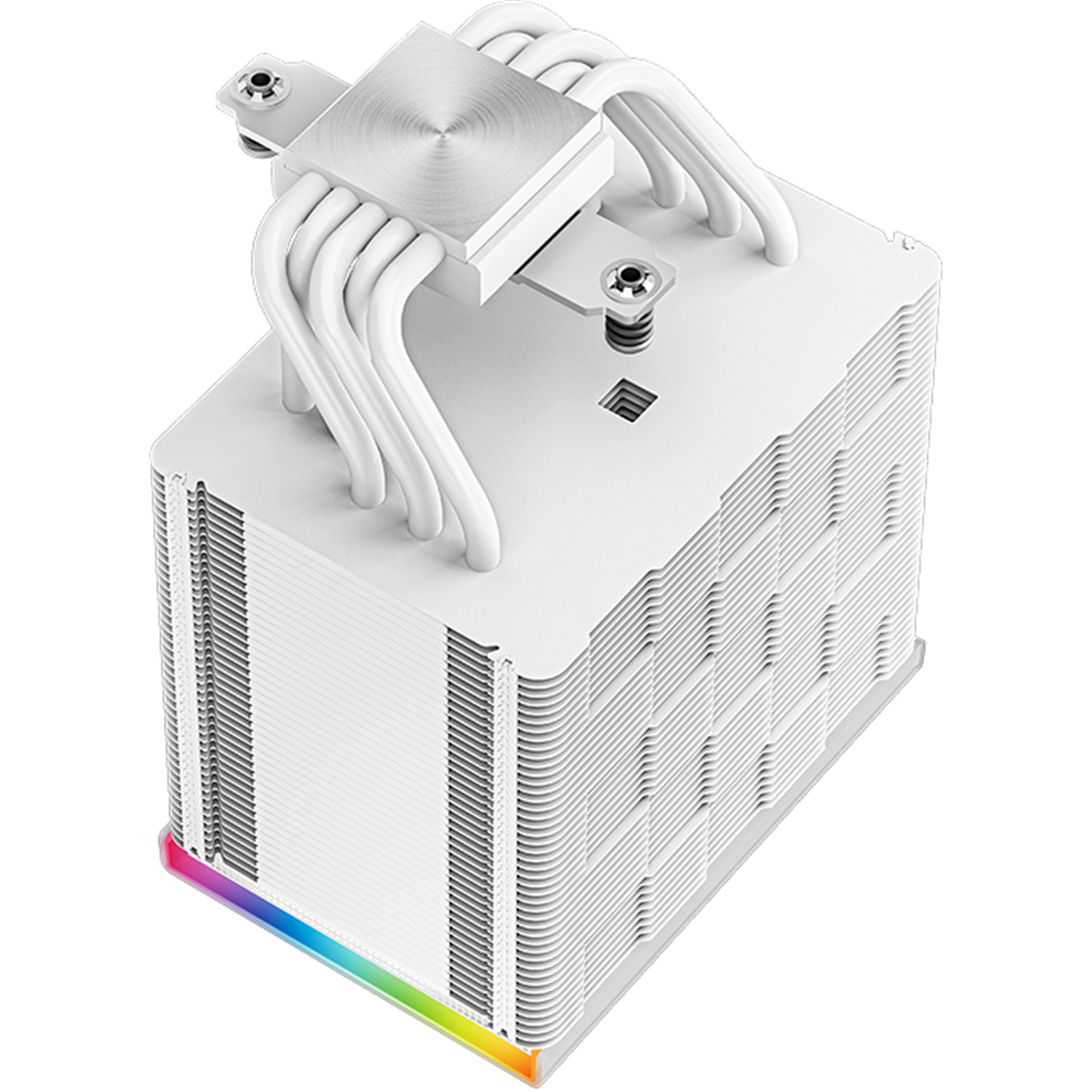

An all-white variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, a five heat pipe wide tower layout, a unique white matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
STELLAR COOLING
The exceptional cooling performance of the AK500 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
COOL, QUIET, AND POWERFUL

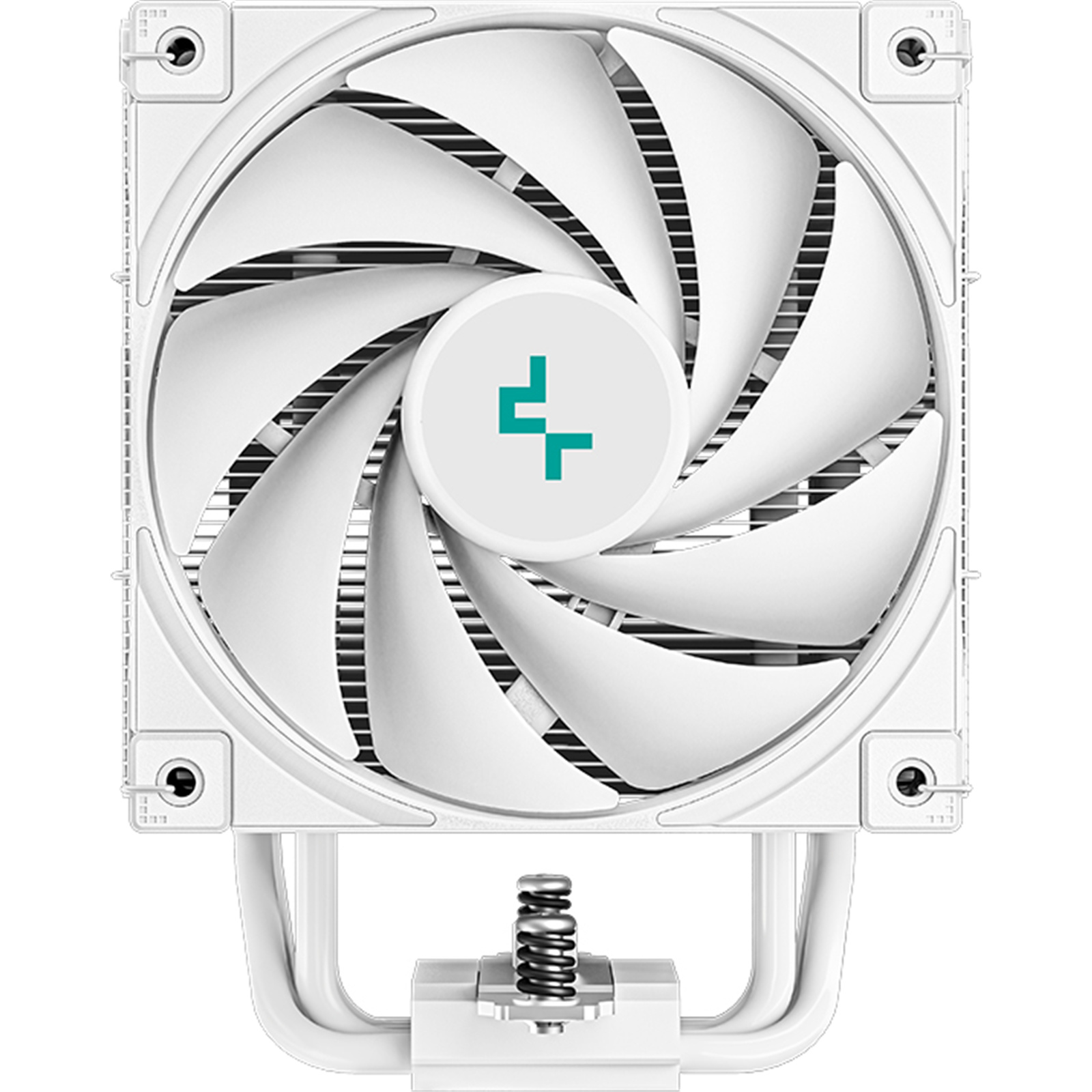

Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
PREMIUM DRAM COMPATIBILITY

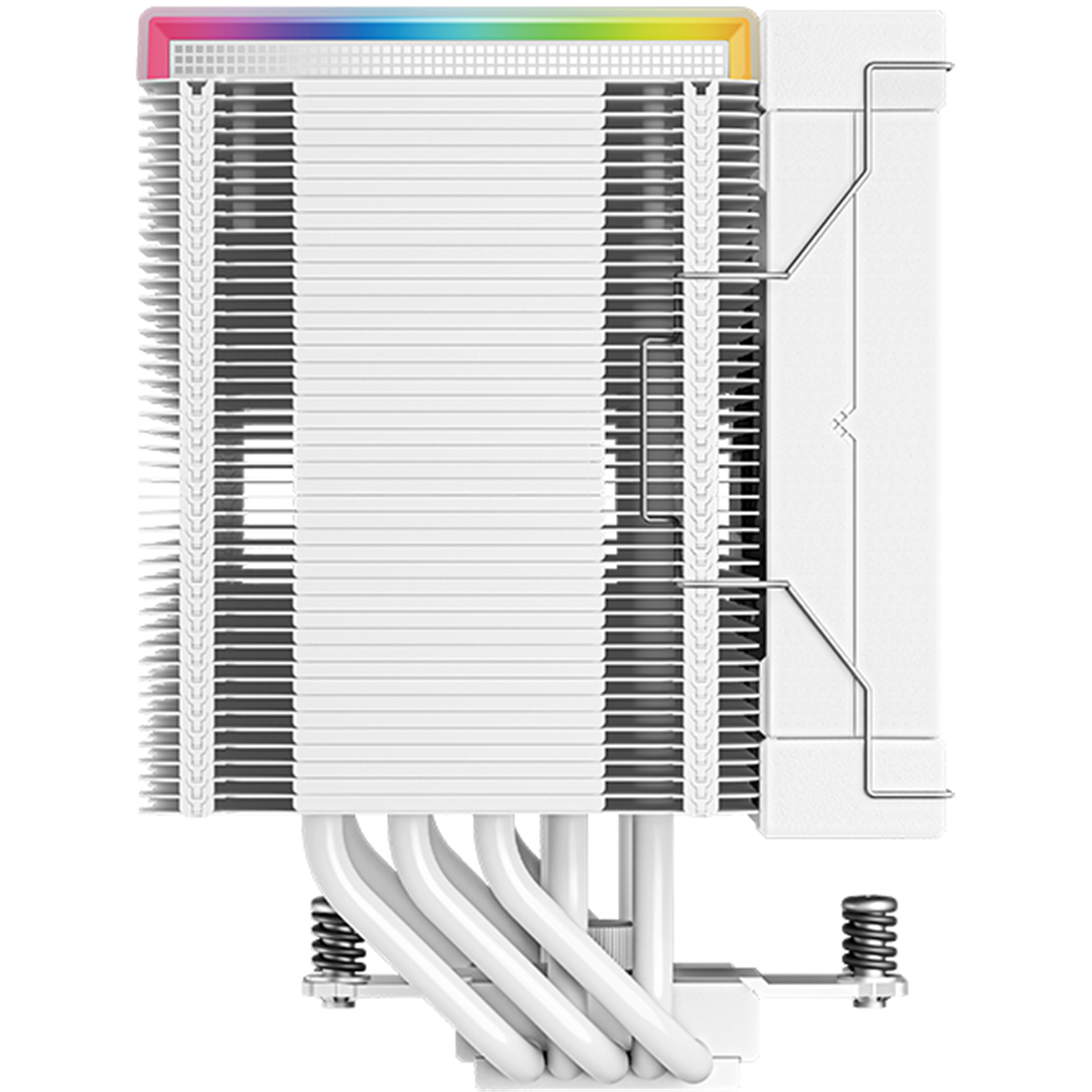

The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
SIMPLE AND SECURE INSTALLATION

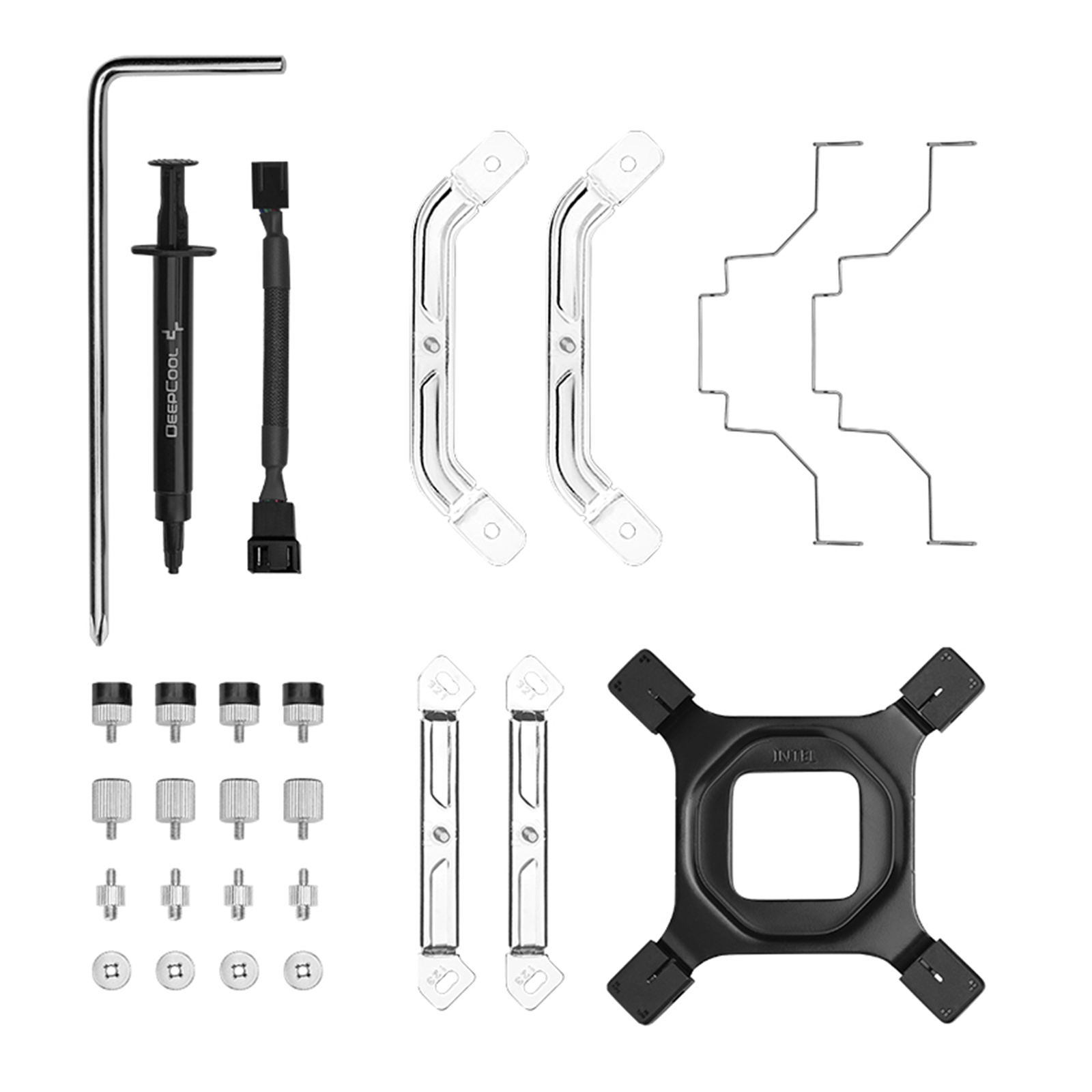

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Air Cooling
DEEPCOOL AK400 Black CPU Cooler 1x 120mm Fan, 155mm Clearance,...
DEEPCOOL AG200 CPU Cooler 1x 92mm Fan, 133mm Clearance, Support...
NOCTUA NH-D15 Chromax Black CPU Cooler 2x 140mm PWN Fans, 165mm...
DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support...
DEEPCOOL AK400 ZERO DARK PLUS CPU Cooler 2 x 120mm Fan, 155mm...
DEEPCOOL AK500 White Digital CPU Cooler 1x 120mm PWM Fan, 158mm Clearance, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
- Brand: DEEPCOOL
- MPN: AK500 DIGITAL WH
- Part #: FANDPC3053
Product URL: https://www.pbtech.com/pacific/product/FANDPC3053/DEEPCOOL-AK500-White-Digital-CPU-Cooler-1x-120mm-P
Features
AK500 DIGITAL WH
WELCOME TO THE DIGITAL ERA
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
PROVEN AK WH DESIGN
An all-white variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, a five heat pipe wide tower layout, a unique white matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
STELLAR COOLING
The exceptional cooling performance of the AK500 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
COOL, QUIET, AND POWERFUL
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
PREMIUM DRAM COMPATIBILITY
The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
SIMPLE AND SECURE INSTALLATION
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Specifications
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Product Dimensions
127×117×160 mm(L×W×H)
Heatsink Dimensions
127×92×156 mm(L×W×H)
Net Weight
1291 g
Heatpipe
Ø6 mm×5 pcs
Fan Dimensions
120×120×25 mm(L×W×H)
Fan Speed
500~1850 RPM±10%
Fan Airflow
68.99 CFM
Fan Air Pressure
2.19 mmAq
Fan Noise
=28 dB(A)
Fan Speed (with LSP)
500~1550 RPM±10%
Fan Airflow (with LSP)
52.24 CFM
Fan Air Pressure (with LSP)
1.2 mmAq
Fan Noise (with LSP)
=25.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.12 A
Fan Power Consumption
1.44 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage
5 VDC
LED Power Consumption
4.5 W
P/N
R-AK500-WHADMN-G
