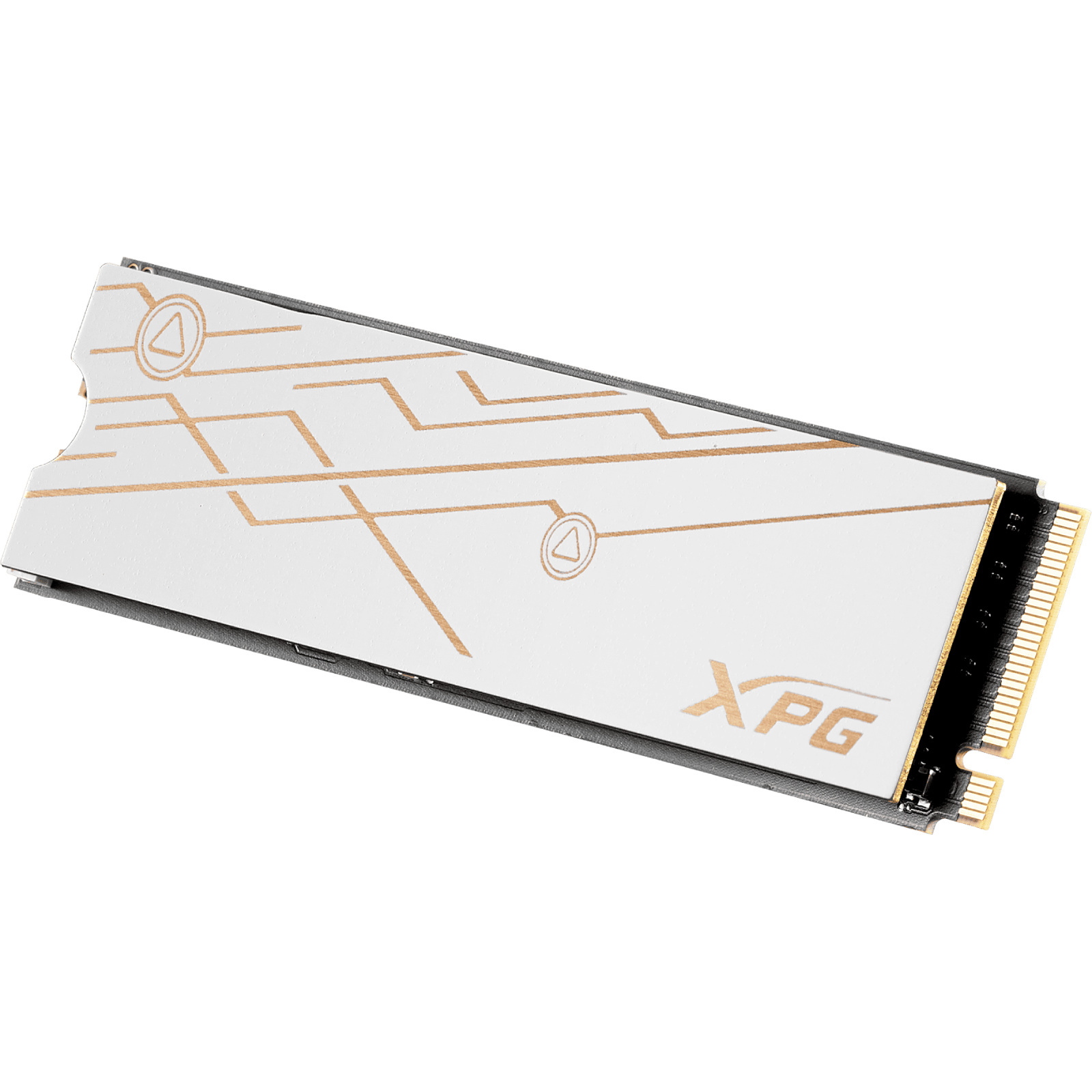

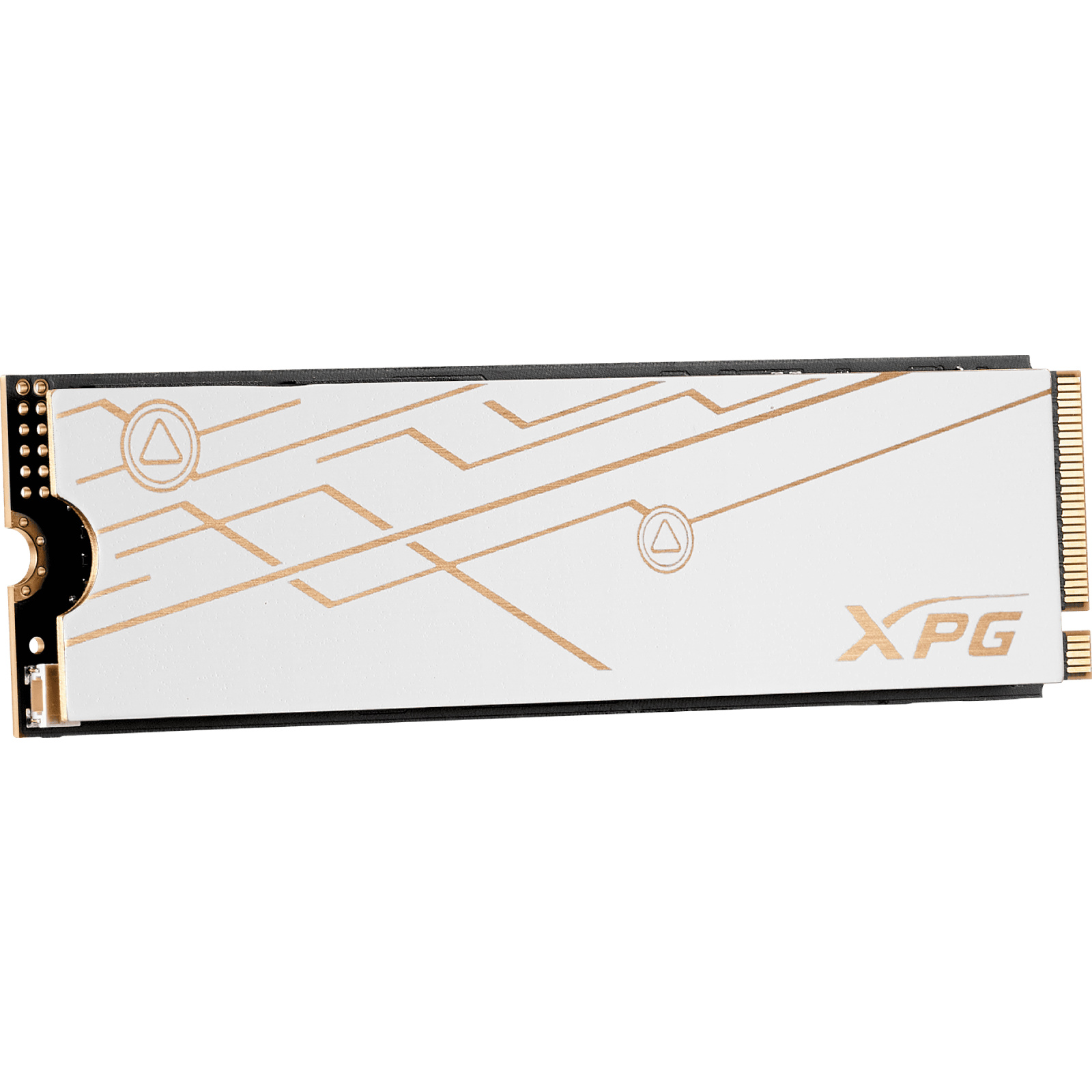

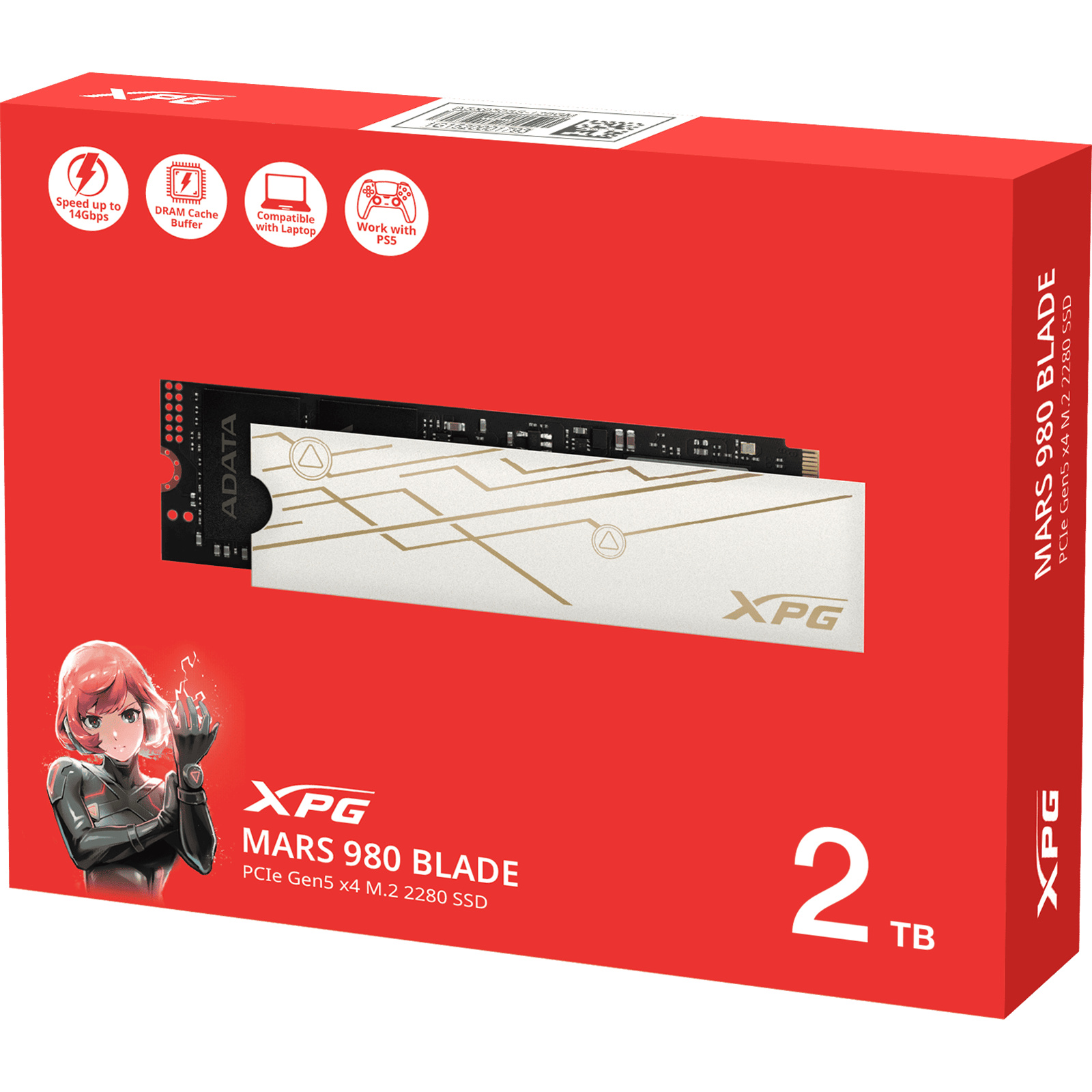

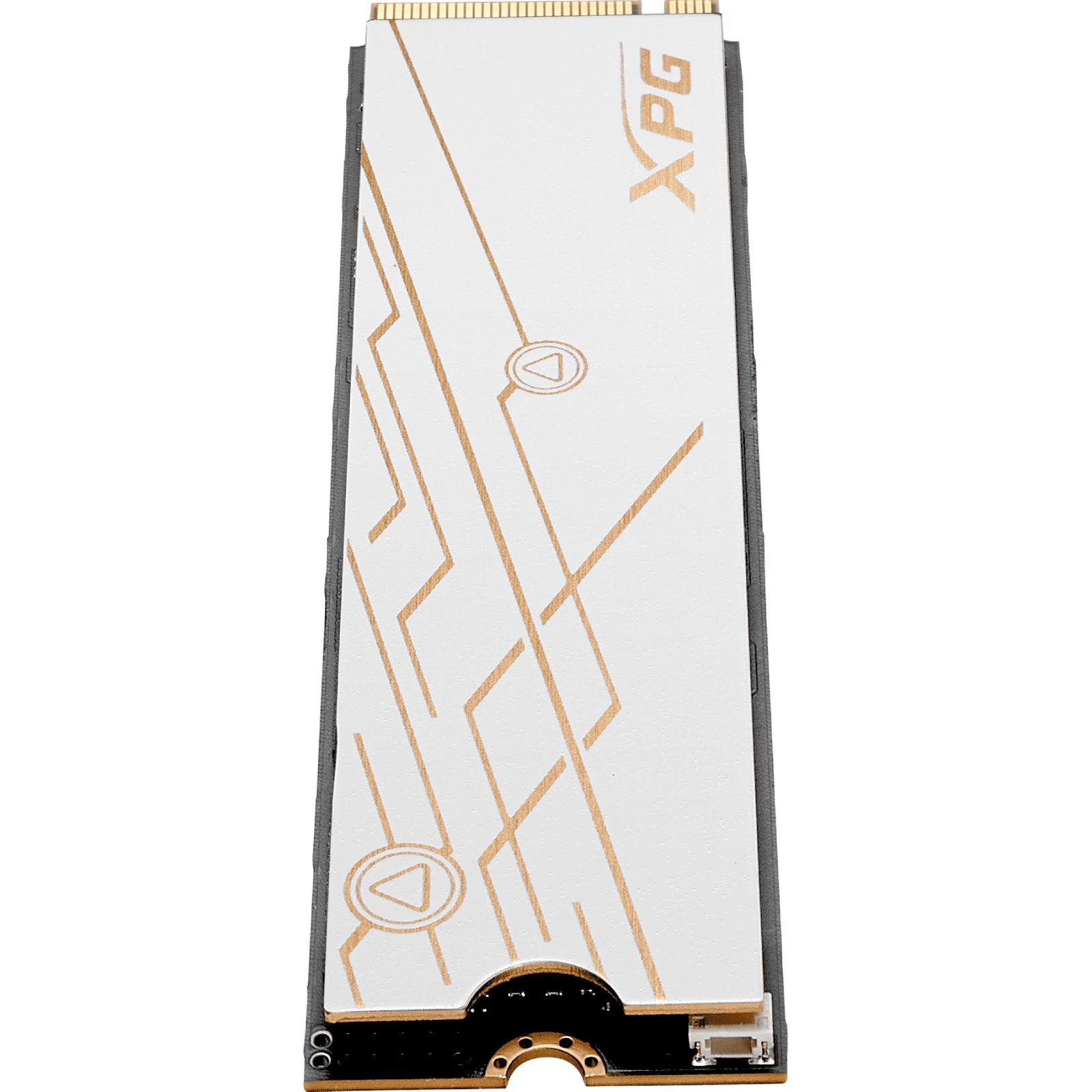

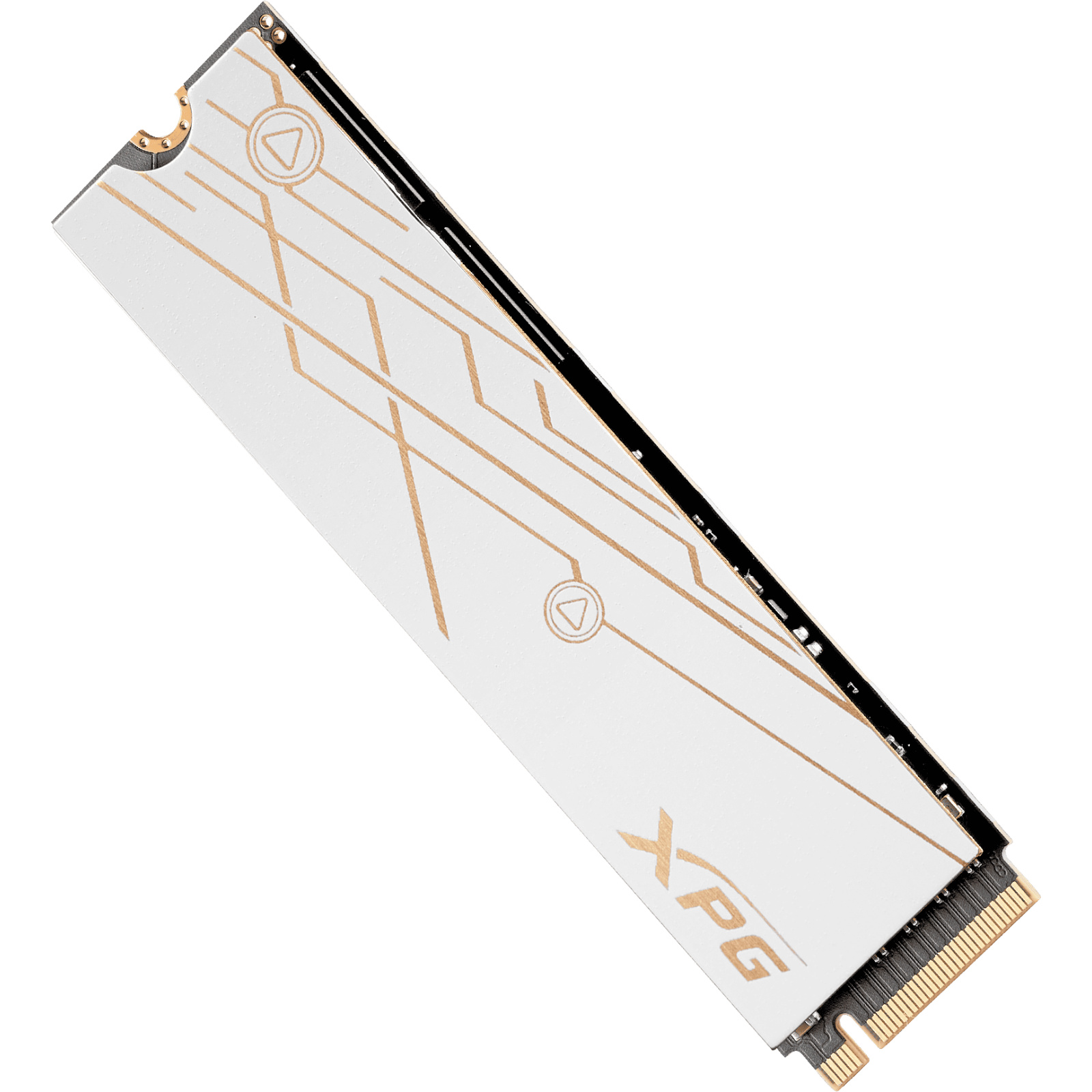

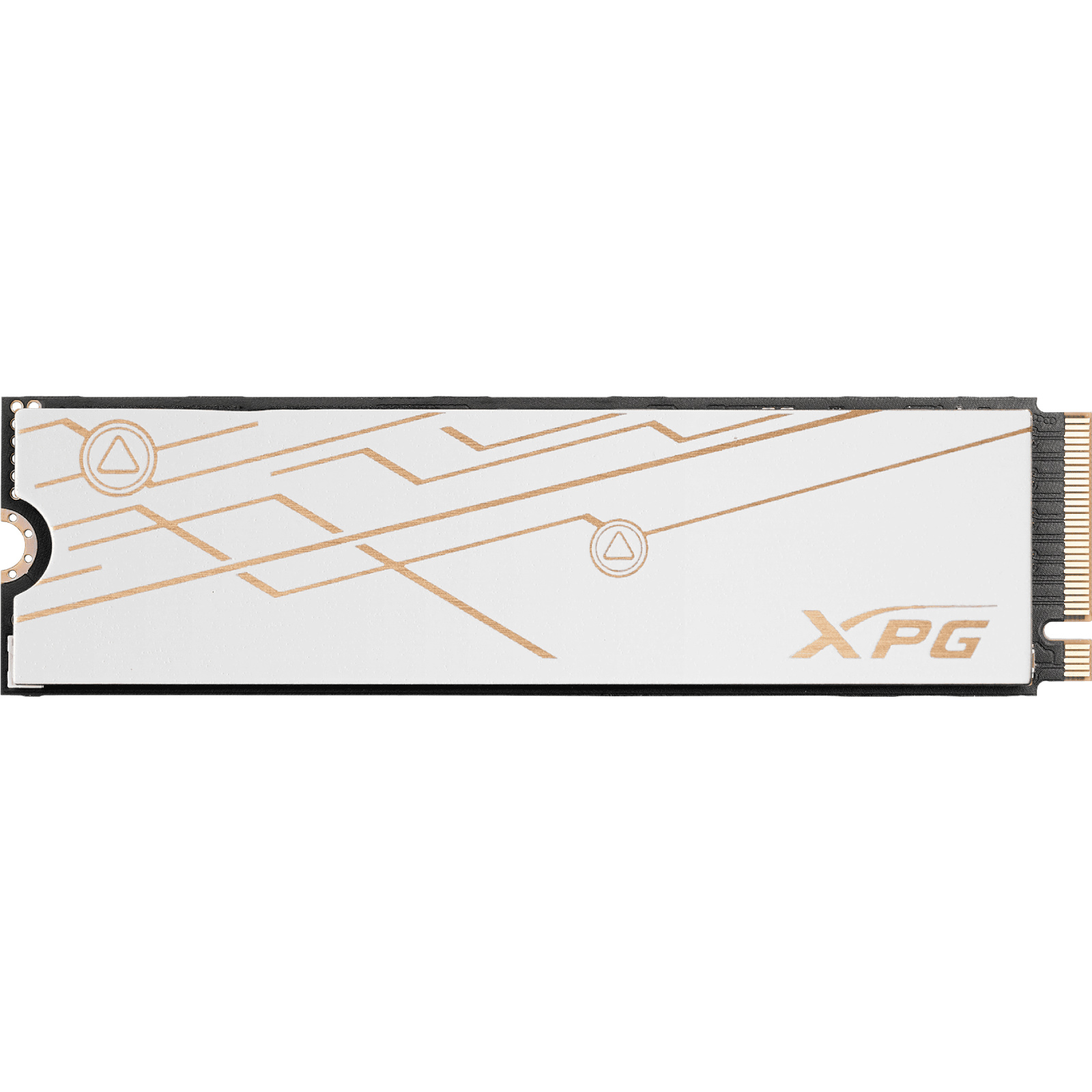

ADATA MARS 980 BLADE 2TB M.2 NVMe Internal SSD
PCIe Gen 5 - Up to 14000MB/s Read - Up to 13000MB/s Write - 5 Years Warranty
ADATA MARS 980 BLADE 2TB M.2 NVMe Internal SSD
PCIe Gen 5 - Up to 14000MB/s Read - Up to 13000MB/s Write - 5 Years Warranty
- Brand: ADATA
- MPN: SMAR-980B-2TCS
- Part #: HDDADS13320
- UPC: 842243035667
- Brand: ADATA
- MPN: SMAR-980B-2TCS
- Part #: HDDADS13320
- UPC: 842243035667
COMBO DEALS: Buy Together and SAVE!






Cruxtec NVMe & NGFF Dual Protocol M.2 SSD to USB-C Enclosure - Aluminum, 10Gbps, up to 4TB
$34.62
$34.62


Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics,...
$11.54
$11.54


$6.86
$6.86
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular M.2 SSD





ADATA MARS 980 BLADE 2TB M.2 NVMe Internal SSD PCIe Gen 5 - Up to 14000MB/s Read - Up to 13000MB/s Write - 5 Years Warranty
- Brand: ADATA
- MPN: SMAR-980B-2TCS
- Part #: HDDADS13320
- UPC:842243035667

Product URL: https://www.pbtech.com/pacific/product/HDDADS13320/ADATA-MARS-980-BLADE-2TB-M2-NVMe-Internal-SSD-PCIe
Features
MARS 980 BLADE
Bladefast. Sharp Unstoppable.
The Gaming Gen5 SSD for Laptops
It's finally here! MARS 980 BLADE is a gaming Gen5 SSD built for laptops, featuring PCIe Gen5 x4 and NVMe 2.0 support. Its compact design ensures stable performance even in tight spaces, optimized for AI workloads and compatible with the latest Intel and AMD platforms. No matter where it's installed, it's built to go beyond the limits.
Clutch Moment. Legendary Move.
The MARS 980 BLADE features a sequential read/write speed of 14,000/13,000MB per second, which is double the performance of PCIe Gen4 SSDs and 8x faster than standard Gen3 SSDs. It is fully backward compatible with PCIe 4.0 and 3.0 platforms. Complete every challenge in mere seconds!
6nm Control, Game Changer
Built with TSMC's advanced 6nm process, the MARS 980 BLADE delivers superior performance-to-power efficiency, reducing heat generation in PCIe 5.0 SSDs and eliminating the need for bulky cooling-making it ideal for laptops and compact systems.
Expand PS5 Storage Capacity
The MARS 980 BLADE utilizes a PCIe 5.0 transmission interface and can be installed in the PS5 as an expansion hard drive to alleviate PS5 storage insufficiency issues. Not only does the MARS 980 BLADE fit perfectly into the PS5'a drive slot, it also provides a smooth and no-lag gaming experience while enjoying triple A masterpieces.
*According to Sony, even if the read and write speed is higher than the official standard, not all games can actually experience the same performance as the PS5 console's built-in SSD.
**Maximum sequential read speed is measured at 6,500MB/s when the PS5 console is operating.
Attention! Large Capacity Incoming!
Carefully selected 232-layer 3D NAND flash memory allows the MARS 980 BLADE to feature an ultra-large capacity of up to 4TB, and the SSD uses a variety of data protection and error correction technologies to greatly improve TBW (Total Bytes Written) and durability to meet high load requirements.
Beyond Elite
MARS 980 BLADE comes with SLC Caching and DRAM Cache Buffer for advantages in system loading and data caching. It features 4K random read/write of up to 2000K/1650K IOPS for smoother multitasking.
SSD Toolbox value-added software for real-time status monitoring
SSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
Specifications
Capacity
2TB
Form Factor
M.2 2280
NAND Flash
3D NAND
Controller
SM2508
Dimensions (L x W x H)
80 x 22 x 4.5mm / 3.15 x 0.87 x 0.18inch (w/ heatsink)
80 x 22 x 3.2mm / 3.15 x 0.87 x 0.13inch (w/o heatsink)
Weight
12g / 0.42oz (w/ heatsink)
8g / 0.28oz (w/o heatsink)
Interface
PCIe Gen5 x4
Sequential Read
Up to 14,000MB/s (PC/Laptop)*, up to 6,500MB/s (PS5)*
Sequential Write
Up to 13,000MB/s*
4KB Random Read IOPS
2,000K
4KB Random Write IOPS
1,650K
Operating temperature
0°C - 70°C
Storage temperature
-40°C - 85°C
Shock resistance
1,500G/0.5ms
MTBF
2,000,000 hours
Terabytes Written (TBW)
1,480TB**
Remark
* This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 5.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.
* This product is backward compatible with PCIe 4.0 and 3.0.
* Platform Information: M/B: ASUS ROG CROSSHAIR X670E HERO, CPU: AMD Ryzen 9 7950X3D 16-Core Processor 4.2GHz, BIOS Ver: 2604 x64, DRAM: DDR5 16GB*2 4800MHz, OS Ver: Windows 11 / 24H2
** The value is the minimum amount of terabyte written that could be reached.
