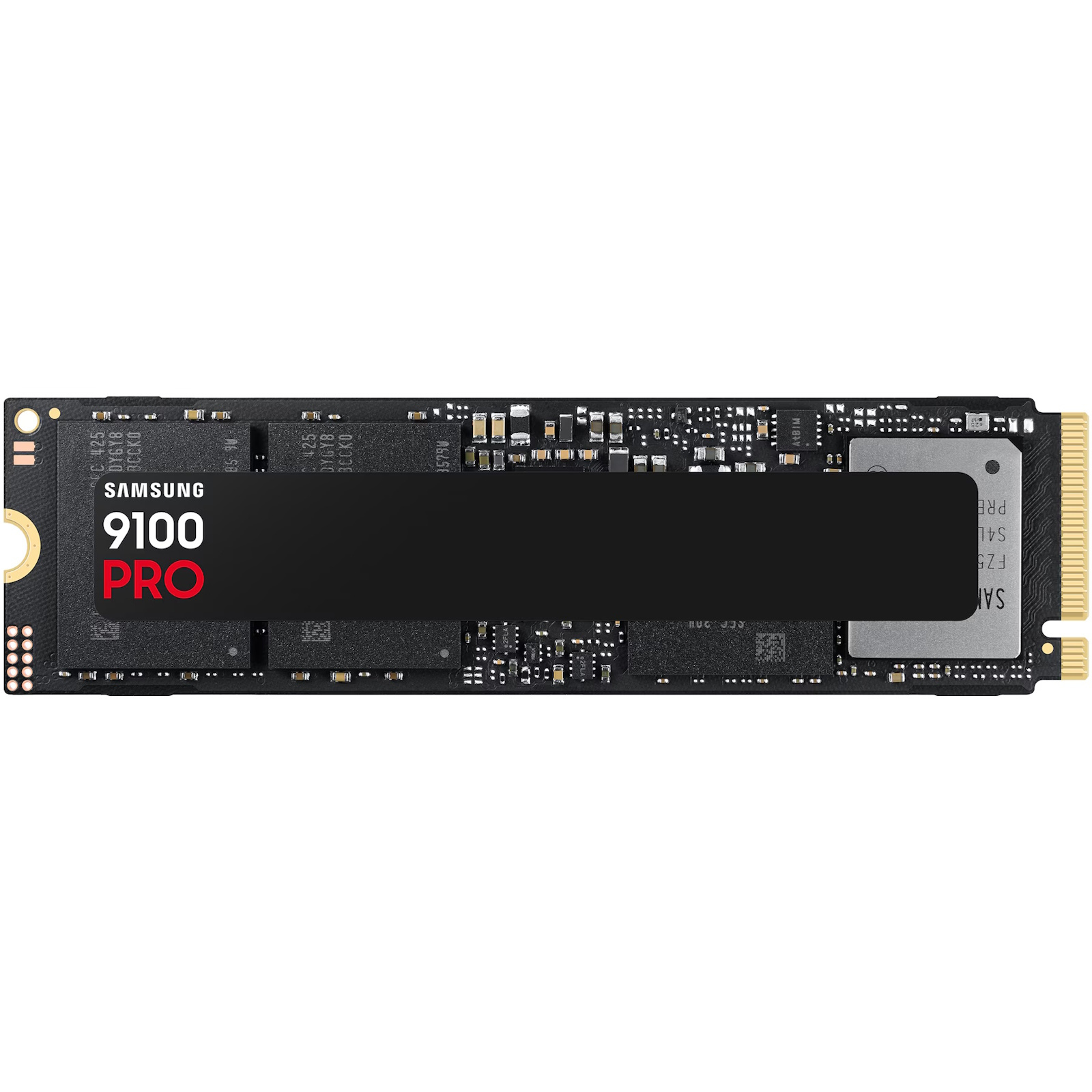

Samsung 9100 PRO 8TB M.2 NVMe Gen5 Internal SSD
PCIe 5.0 - Read up to 14800MB/s - Write up to 13400MB/s - 5 Years Warranty
Samsung 9100 PRO 8TB M.2 NVMe Gen5 Internal SSD
PCIe 5.0 - Read up to 14800MB/s - Write up to 13400MB/s - 5 Years Warranty
- Brand: Samsung
- MPN: MZ-VAP8T0BW
- Part #: HDDSAM993130
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"These NVME SSDs from Samsung have been my go to pick for every build I’ve ever had. They have never disappointed me in terms of read and write speeds. Great for a boot drive, or ...view more"
"One of the fastest SSD on the market, if your have a high budget and looking for building a high-end PC , this is the go for the SSD that you are choosing."
"You don't need these speeds. Nobody really needs these speeds. The functional difference for 99.99% of users between this and a 990 Pro or other PCI-e gen4 NVMe SSD will not be not ...view more"
COMBO DEALS: Buy Together and SAVE!





Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics,...
$11.54
$11.54


ADATA UV128 USB Flash Drive - 64GB - Black / Blue USB 3.2
$6.86
$6.86
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular M.2 SSD





Samsung 9100 PRO 8TB M.2 NVMe Gen5 Internal SSD PCIe 5.0 - Read up to 14800MB/s - Write up to 13400MB/s - 5 Years Warranty
- Brand: Samsung
- MPN: MZ-VAP8T0BW
- Part #: HDDSAM993130

Product URL: https://www.pbtech.com/pacific/product/HDDSAM993130/Samsung-9100-PRO-8TB-M2-NVMe-Gen5-Internal-SSD-PCI?is-review=1
Features
Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/ 13,400 MB/s, two times faster than 990 PRO*. Leave Gen4 limits behind with random read/write speeds up to 2,200K/ 2,600K IOPS, made possible by Gen5.
*Sequential and random write performance was measured with Intelligent Turbo Write technology activated, which only operates within a specific data transfer size. Performance may vary depending on SSD's firmware, system hardware & configuration and other factors. To maximise the performance of the 9100 PRO, please check whether your system supports PCIe® 5.0 on Intel or AMD website. For detailed information, please contact your local service center.
Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/ write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.
Create with AI
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO's exhilarating random read/write speeds up to 2,200K/ 2,600K IOPS*. Swift loads, smooth gameplay, seamless performance.
*Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.
Exceptional experience
Elevate your competitive edge. Breeze through video editing, 3D art, and streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on compatible devices, and choose the storage you need with expansive capacity up to 8TB*.
*Availability may vary depending on market and timing.
Extraordinary thermal efficiency
Consistent peak performance. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO*. Exceptional thermal control minimises disruption, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.
*990 PRO sequential read/write 1,221/1,255 MB/s per Watt, 9100 PRO sequential read/write 1,822/1,703 MB/s per Watt based on the internal test result of the 2TB capacity model.
Specifications
General Feature
Application
Client PCs, Game Consoles
Rated Capacity
8,000GB (1GB=1 Billion byte by IDEMA)
* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor
M.2 (2280)
Interface
PCIe® 5.0 x4, NVMe™ 2.0
Dimension (WxHxD)
Max 80.15 x Max 22.15 x Max 3.88 mm
Weight
Max 9.5g
Storage Memory
Samsung V-NAND TLC
Controller
Samsung in-house Controller
Cache Memory
Samsung 8GB Low Power DDR4X SDRAM
Special Feature
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes
Performance
Sequential Read
Up to 14,800 MB/s
* Performance may vary based on system hardware & configuration
Sequential Write
Up to 13,400 MB/s
* Performance may vary based on system hardware & configuration
Random Read
Up to 2,200,000 IOPS
* Performance may vary based on system hardware & configuration
Random Write
Up to 2,600,000 IOPS
* Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)
Average: Read 10.5 W / Write 8.8 W
* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Typical 9.3 mW
* Actual power consumption may vary depending on system hardware & configuration
Power Consumption (Device Sleep)
Typical 8.6 mW
* Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 ℃ Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
