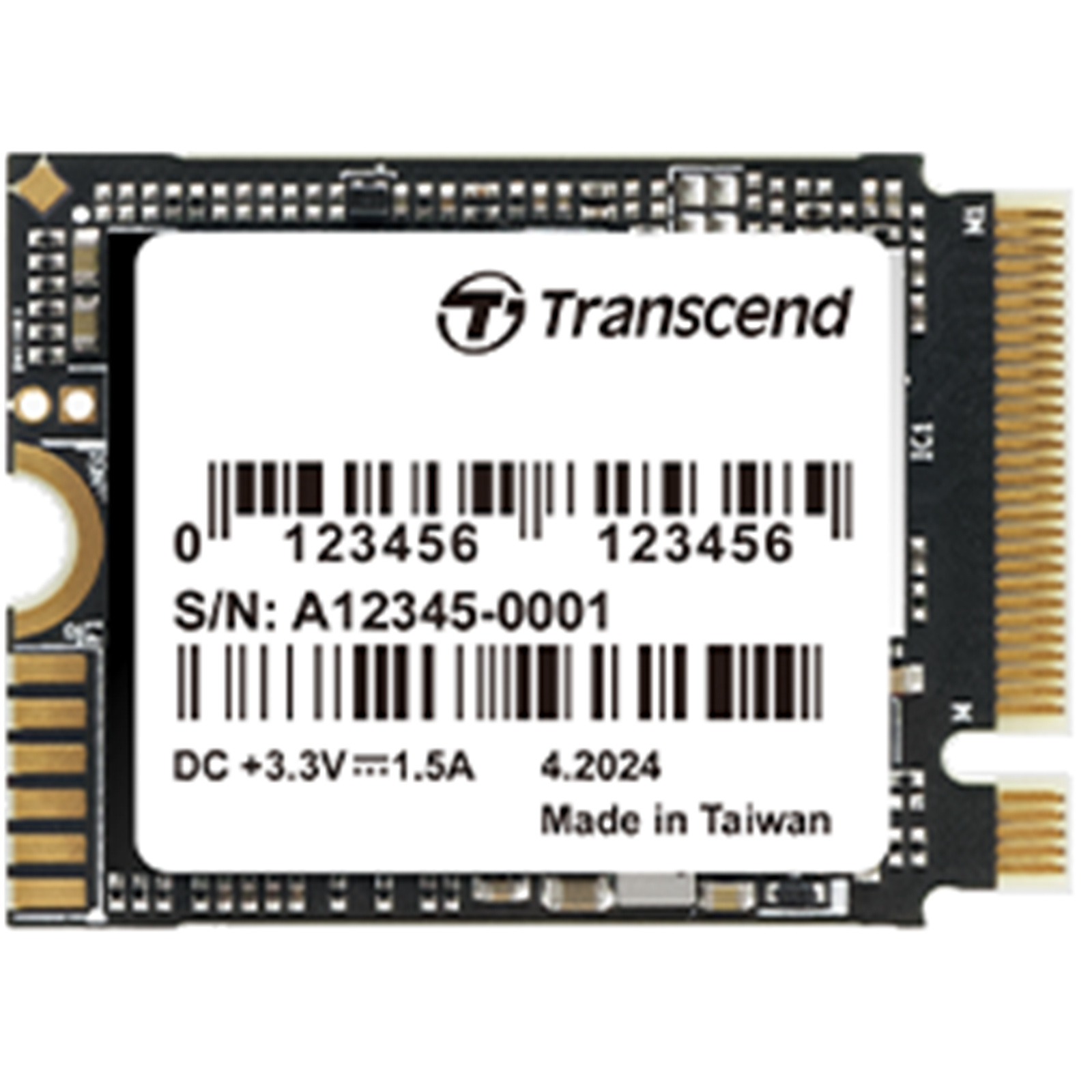

Transcend Embedded M.2 2230, 512GB, PCIe Gen4x4, NVMe, BiCS5, DRAM-less, PE: 3K, TCG OPAL, extended temp.

PB Tech price
PB Tech price
NZD $ 143 .37
$ 143 .37
$143.37  +GST
$143.37

Transcend Embedded M.2 2230, 512GB, PCIe Gen4x4, NVMe, BiCS5, DRAM-less, PE: 3K, TCG OPAL, extended temp.

PB Tech price
NZD $ 143 .37 $ 143 .37
In stock at Supplier
Delivery: Order now and it ships on 29 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$143.37  +GST
$143.37
Add To Compare
Stock Alerts
Click or hover over image to enlarge
Returns & Warranty Bulk Quote Print Page

Features

Transcend's M.2 SSD MTE380T is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards. Data is protected using the hardware-based AES 256-bit encryption and LBA (Logical Block Address)sector-specific permissions.

Transecnd's MTE380T features the 112-layer 3D NAND flash, a high-speed PCI Express (PCIe) Gen4 x4 interface, and a powerful controller, achieving never-before-seen transfer speeds. In addition, the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistors guarantee its reliability in harsh conditions. Transcend's MTE380T is also 100% chamber tested in-house for extended operating temperatures of -20?~75?.

Transcend also offers the MTE380T-I with wide temperature (-40?~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Firmware Features

- Supports NVM command
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Compliant with TCG Opal specifications and IEEE 1667 standards
- Power-saving DevSleep (Device Sleep) mode (optional)

Hardware Features

- Compliant with NVM Express specification 1.4
- Compliant with PCI Express specification 4.0
- Space-saving M.2 form factor (30mm) - ideal for mobile computing devices
- PCIe Gen 4 x4 interface
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available

Specifications

Appearance

Dimensions

30 mm x 22 mm x 2.23 mm (1.18" x 0.87" x 0.09")

Weight

4 g (0.14 oz)

M.2 Type

2230-S3-M

Form Factor

M.2 2230

Interface

Bus Interface

NVMe PCIe Gen4 x4

Storage

Capacity

512 GB

Flash Type

112-layer 3D NAND flash

Operating Environment

Operating Voltage

3.3V±5%

Operating Temperature

Extended Temp.-20°C (-4°F) ~ 75°C (167°F)
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)

Storage Temperature

-55°C (-67°F) ~ 85°C (185°F)

Humidity

5% ~ 95%

Shock

15 G, 11 ms, 3 axis

Vibration (Operating)

20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)

Power

Power Consumption (Operation)

3.3 watt(s)

Power Consumption (IDLE)

0.73 watt(s)

Performance

Sequential Read/Write (CrystalDiskMark)

Read: Up to 3,300 MB/s
Write: Up to 1,700 MB/s

4K Random Read/Write (IOmeter)

Read: Up to 123,000 IOPS
Write: Up to 390,000 IOPS

Mean Time Between Failures (MTBF)

3,000,000 hour(s)

Terabytes Written (TBW)

Up to 660 TBW

Drive Writes Per Day (DWPD)

1.2 (3 yrs)

Note

Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Warranty

Certificate

CE/UKCA/FCC/BSMI

Warranty

Three-year Limited Warranty

Warranty Policy

Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.

Manufacturer Part No:
TS512GMTE380T
Brand:
Transcend Embedded
Product Type:
M.2 2230,
UPC
760557866824
Product Family:
-
Shipping Weight:
0.25 kg
PB Part No:
HDDTRSI12149
Product Model:
-
Warranty: 12 months *
