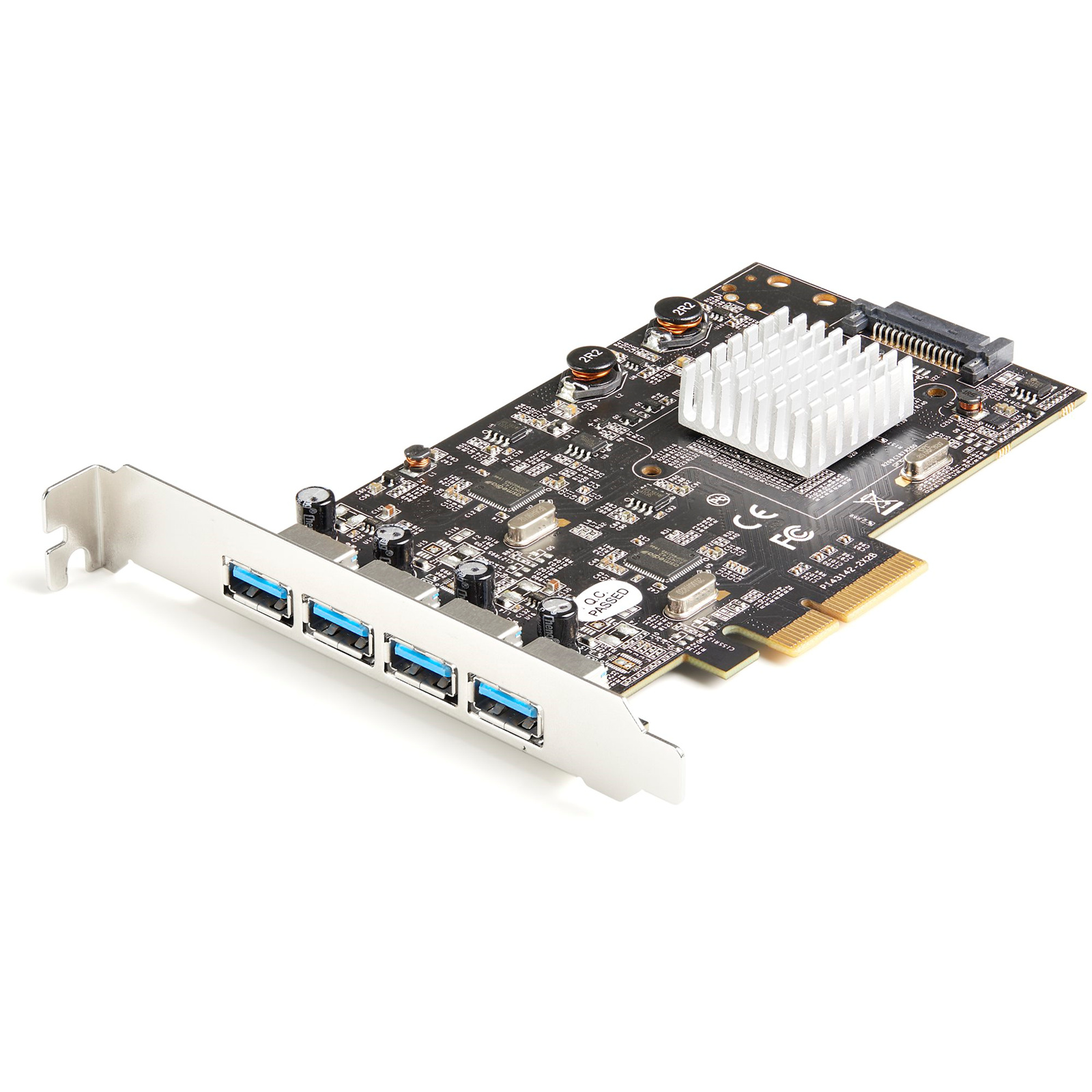

StarTech.com PEXUSB314A2V2 4-Port USB PCIe Card 3.1 Gen 2 - 2 Chips

  • Brand: StarTech.com
  • MPN: PEXUSB314A2V2
  • Part #: IDESTT5142547
  • UPC: 065030887410
PB Tech price
NZD $ 214 .78 $ 214 .78


Delivery: Order now and it ships on 26 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$214.78  +GST
$214.78
  • Brand: StarTech.com
  • MPN: PEXUSB314A2V2
  • Part #: IDESTT5142547
  • UPC: 065030887410

Features

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.

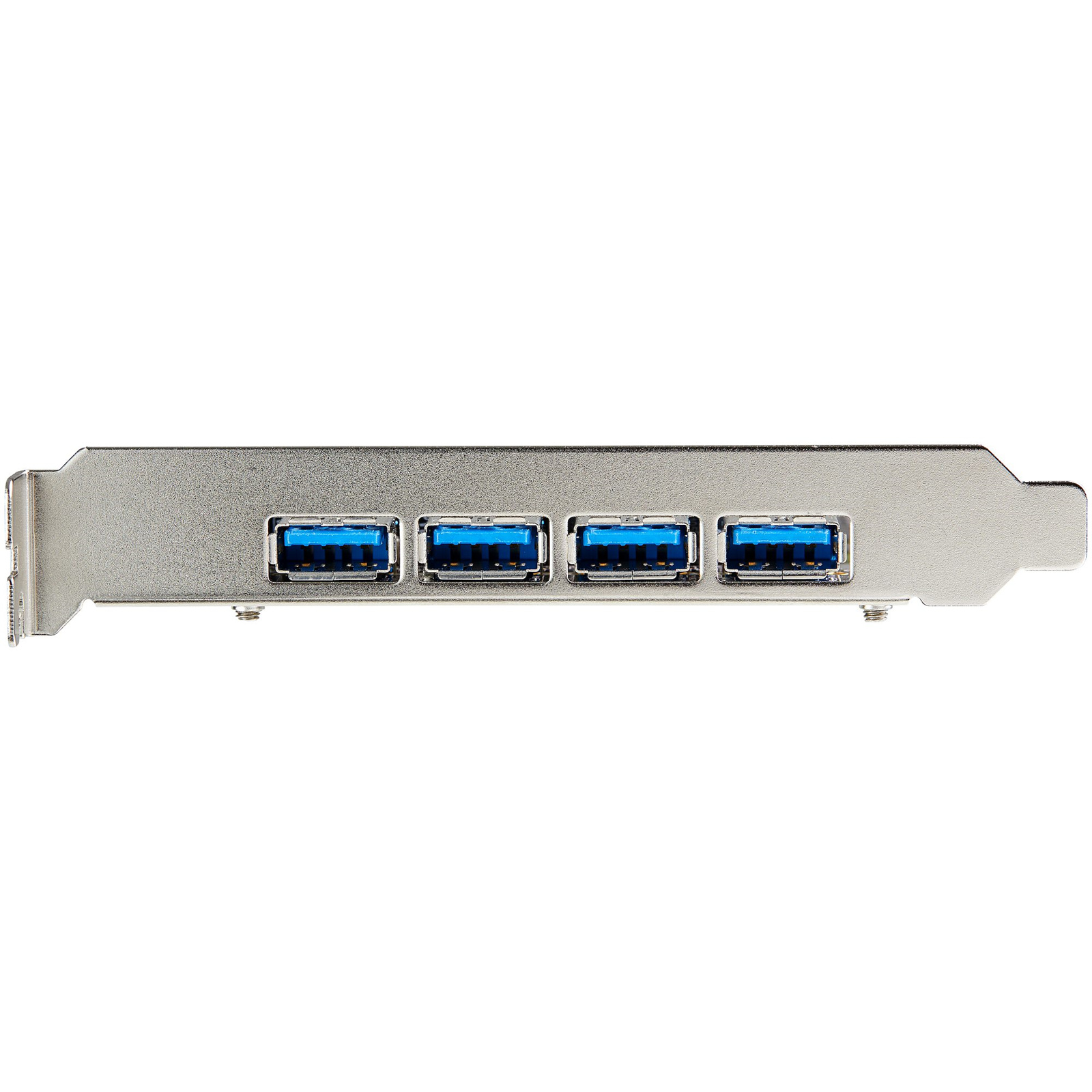

Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer

The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.0 and USB 3.1 (5 Gbps).

SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance

The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.1/3.0/2.0 devices

Specifications

Connector(s)

1 - Connector Type(s)

PCI Express x4

1 - Internal Ports

SATA Power (15 pin)

4 - External Ports

USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)

Environmental

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

20% ~ 80% RH

Hardware

Ports

4

Interface

PCI Express

Bus Type

USB 3.2 Gen 2 10Gbps

Card Type

Standard Profile

Port Style

Integrated on Card

Industry Standards

USB 3.1 Specification Rev. 1.0 USB Specification Rev. 2.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0

Chipset ID

ASMedia - ASM3142
ASMedia - ASM1812

Performance

Total USB Power Output

4.5W (5V @ 0.9A) nominal, per port - Ports trip before 2.1A (10.5W) for Over-Current Protection

Maximum Data Transfer Rate

10Gbps per port

Type and Rate

USB 3.1 Gen 2 - 10 Gbit/s

UASP Support

Yes

MTBF

40,000 Hours

Physical Characteristics

Color

Black

Product Height

0.7 in [1.9 cm]

Product Length

4.7 in [12.0 cm]

Weight of Product

4.4 oz [125.0 g]

Product Width

5.9 in [15.0 cm]



Manufacturer Part No:
PEXUSB314A2V2
Brand:
Product Type:
-
UPC
065030887410
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
IDESTT5142547
Product Model:
