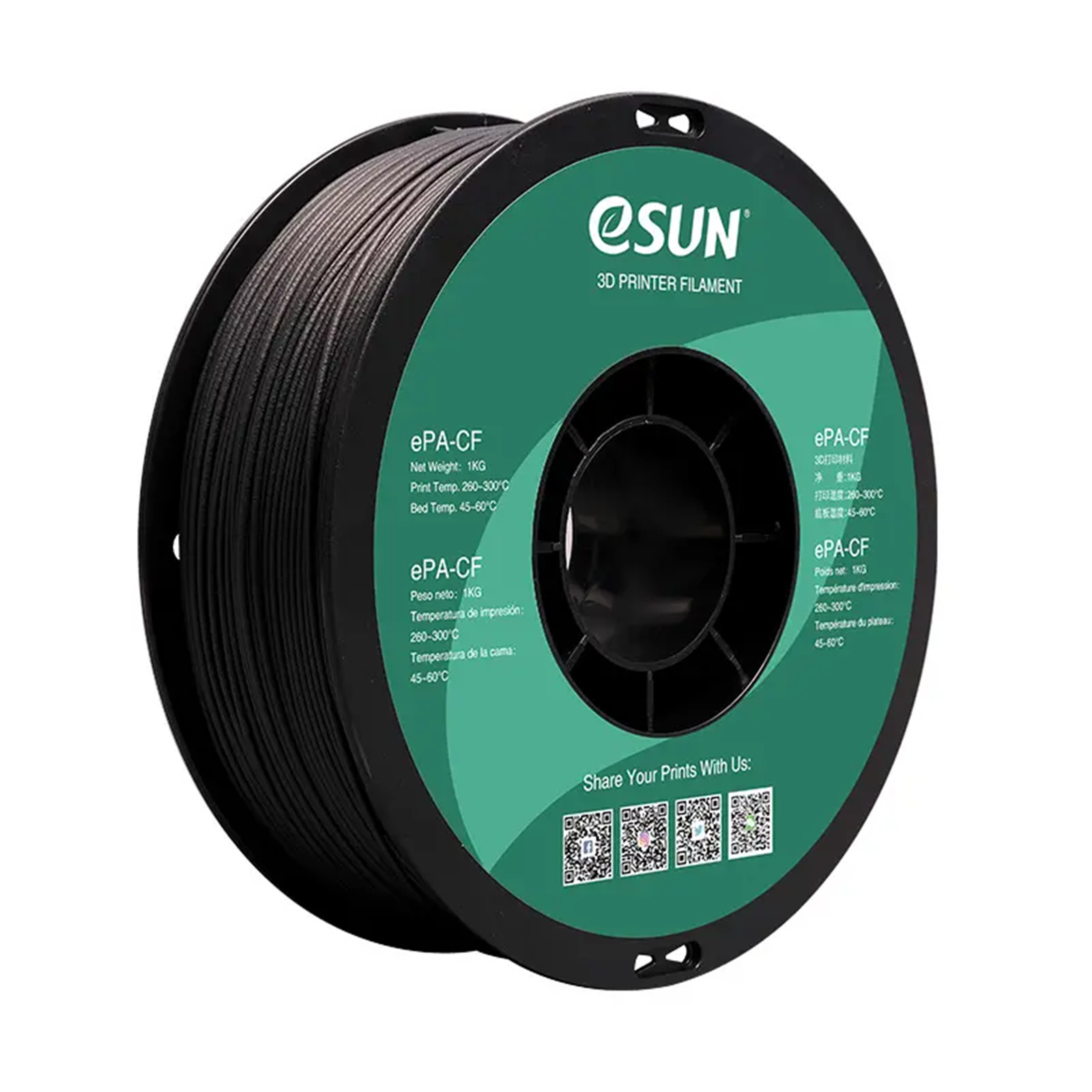

eSun ePA-CF Nylon (Based Carbon-Fiber) Filament - Natural
1kg Roll - 1.75mm - Compatible with Most FDM 3D Printers such as Creality / Bambu Lab / AnkerMaker / Raise3D / Flsun
eSun ePA-CF Nylon (Based Carbon-Fiber) Filament - Natural
1kg Roll - 1.75mm - Compatible with Most FDM 3D Printers such as Creality / Bambu Lab / AnkerMaker / Raise3D / Flsun
- Brand: eSun
- MPN: PA-CF175B1TZ1
- Part #: INKESN0080
- UPC: 840249147414
- Brand: eSun
- MPN: PA-CF175B1TZ1
- Part #: INKESN0080
- UPC: 840249147414
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular 3D Printer Filament & Resins





eSun ePA-CF Nylon (Based Carbon-Fiber) Filament - Natural 1kg Roll - 1.75mm - Compatible with Most FDM 3D Printers such as Creality / Bambu Lab / AnkerMaker / Raise3D / Flsun
- Brand: eSun
- MPN: PA-CF175B1TZ1
- Part #: INKESN0080
- UPC:840249147414

Product URL: https://www.pbtech.com/pacific/product/INKESN0080/eSun-ePA-CF-Nylon-Based-Carbon-Fiber-Filament---Na
Features
NOTE: The filament DOES NOT support multi-colour printing!
ePA-CF
Nylon carbon fiber filament is developed based on nylon 6/66 copolymer, adding 20% carbon fiber greatly enhances the strength, rigidity and toughness of nylon, and can replace metal materials in many occasions; Self-lubricating wear resistance makes this carbon fiber 3d printer filament suitable for printing gears;
With High toughness and impact resistance, eSUN nylon carbon fiber filament is suitable for printing durable parts. Carbon fiber 3d printer filament has high temperature resistance, heat deformation temperature up to 155?; Low shrinkage, carbon fiber filament is not easy to warp and crack when printing, and the surface of printed models is matte and delicate.
- Heat resistance
- High-intensity
- High rigidity
- High toughness
- High impact resistance
- Abrasive resistance
- High dimensional stability
- Matte surface effect
- Excellent printability
Specifications
Filament Properties Table
3D PRINTING FILAMENT
ePA-CF
Density(g/cm3)
1.24
Heat Distortion Temp(?,0.45MPa)
155
Melt Flow Index(g/10min)
11.46(275?/5kg)
Tensile Strength(MPa)
140
Elongation at Break(%)
10.61
Flexural Strength(MPa)
140
Flexural Modulus(MPa)
4363
IZOD Impact Strength(kJ/?)
18.67
Durability
10/10
Printability
8/10
Recommended printing parameters
Extruder Temperature(?)
260 - 300?
Recommended temperature: 280?
Bed temperature(?)
45 - 60°C
Fan Speed
0%
Printing Speed
40 - 100mm/s
Heated Bed
Optional
Recommended Build Surfaces
Masking paper, PVP solid glue, PEI
