ADLINK Express-BD7-D1508 Basic COM Express Type7 module with Intel Broadwell-DE D1508, 2C

PB Tech price

NZD $ 834 .71

$ 834 .71

ADLINK Express-BD7-D1508 Basic COM Express Type7 module with Intel Broadwell-DE D1508, 2C

Brand: ADLINK
MPN: 91-72129-2040
Part #: IPCADL00017
UPC:

PB Tech price

NZD $ 834 .71

In stock at Supplier

Delivery: Order now and it ships on 28 Nov

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

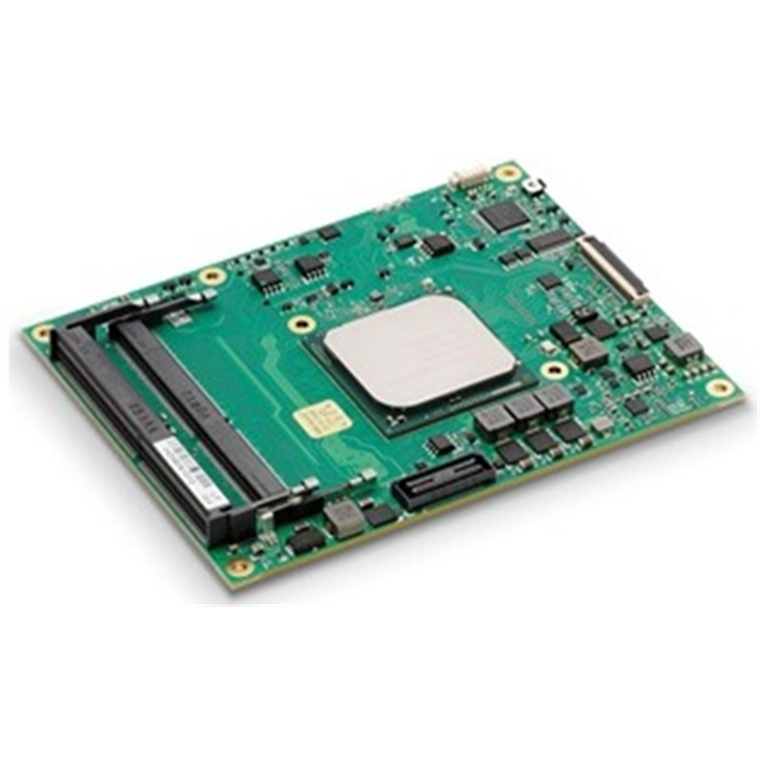

Click or hover over image to enlarge

Brand: ADLINK
MPN: 91-72129-2040
Part #: IPCADL00017
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The Express-BD7 is a COM Express COM.0 R3.0 Basic Size Type 7 module supporting the 64-bit Intel Xeon processor D and Intel Pentium D processor system-on-chip (SoC) (formerly "Broadwell-DE"). The Express-BD7 is specifically designed for customers who need excellent computing performance with balanced power consumption and multiple 10G Ethernet connectivity in a long product life solution.

The Express-BD7 features Intel® Virtualization Technology (including VT-x, VT-d, EPT), Intel® Hyper-Threading Technology (up to 16 cores, 32 threads), Intel Trusted Execution Technology, Intel AES-NI Technology, and DDR4 ECC (or non-ECC) dual-channel memory at 1866/2133/2400 MHz (dependent on SoC SKU) to provide excellent overall performance.

An integrated Intel 10G Ethernet controller supports two 10GBASE-KR interfaces, relevant sideband signals and NC-SI. The Express-BD7 is designed to serve customers with optimized computing capability per watt and high speed connectivity requirements who want to outsource the custom core logic of their systems for reduced development time.

The Express-BD7 has dual stacked SODIMM sockets supporting up to 32 GB of DDR4 ECC (or non-ECC) memory. Input/output features include 16 PCIe Gen3 lanes, up to 8 PCIe Gen2 lanes, a single onboard Gigabit Ethernet port, USB 3.0/2.0 ports, and SATA 6 Gb/s ports. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS with CMOS backup, supporting embedded features such as remote console, hardware monitor, and watchdog timer.

Specifications

Up to 16 cores Intel® Xeon D Series SoC (formerly codename: Broadwell-DE)
Up to 32GB dual channel DDR4 at 1867/2133/2400MHz ECC (dependent on SoC SKU)
Two 10G Ethernet and NC-SI support
Up to eight PCIe x1 (Gen2), one PCIe x16 (Gen3)
GbE, two SATA 6 Gb/s, four USB 3.0/2.0
Supports Smart Embedded Management Agent (SEMA®) functions
Extreme Rugged operating temperature: -40°C to +85°C (build option)

Manufacturer Part No:

91-72129-2040

Brand:

ADLINK

Product Type:

Express Type7 module

UPC

Product Family:

Express-BD7-D1508

Shipping Weight:

1 kg

PB Part No:

IPCADL00017

Product Model:

Basic COM

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
