ADLINK cExpress-BL-i7-5650U Compact COM Express Type 6 module with Intel Core i7-5650U at 2.2GHz/(3.1GHz turbo) with GT3 level graphics

PB Tech price

NZD $ 2,167 .61

$ 2,167 .61

ADLINK cExpress-BL-i7-5650U Compact COM Express Type 6 module with Intel Core i7-5650U at 2.2GHz/(3.1GHz turbo) with GT3 level graphics

Brand: ADLINK
MPN: 91-72211-0040
Part #: IPCADL00040
UPC:

PB Tech price

NZD $ 2,167 .61

In stock at Supplier

Delivery: Order now and it ships on 28 Nov

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

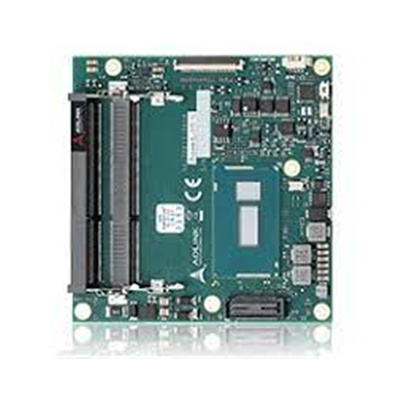

Click or hover over image to enlarge

Brand: ADLINK
MPN: 91-72211-0040
Part #: IPCADL00040
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The cExpress-BL is a COM ExpressR COM.0 R2.1 Type 6 Compact size module supporting the 64-bit 5th Generation Intel® Core™ i7/i5/i3 and ULT Processors and Intel® Celeron™ Processors with CPU, memory controller, graphics processor and I/O hub on the same chip. Leveraging the benefits provided by the Intel® Core™ i7/i5/3 ULT and Intel® Celeron™ System-on-Chip, the cExpress-BL is specifically designed for customers who need optimum processing and graphics performance with low power consumption in a long product life solution.

The cExpress-BL features the Intel® Core™ i7/i5/i3 processor and Intel® Celeron™ processor supporting Intel® Hyper-Threading Technology (up to 2 cores, 4 threads) and up to 32GB of non-ECC DDR3L dual-channel memory at 1333/1600 MHz in dual stacked SODIMM sockets to provide excellent overall performance.

Integrated Intel Generation 8 Graphics includes features such as OpenGL 4.2, DirectX 11.1, Intel® Clear Video HD Technology, Advanced Scheduler 2.0, 1.0, XPDM support, and DirectX Video Acceleration (DXVA) support for full AVC/VC1/MPEG2 hardware decode. Graphics outputs include dual-channel 18/24-bit LVDS (4lane eDP as option) and two DDI ports supporting HDMI / DVI / DisplayPort. The cExpress-BL is specifically designed for customers with high-performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time.

The cExpress-BL features a single onboard Gigabit Ethernet port, two USB 3.0 ports and six USB 2.0 ports, and 4 SATA 6 Gb/s ports. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS with CMOS backup, supporting embedded features such as remote console, CMOS backup, hardware monitor, and watchdog timer.

Specifications

5th Generation Intel® Core™ i7/i5/i3 and Celeron Processor System-on-Chip
Up to 32GB Dual Channel DDR3L at 1600/1333 MHz
Two DDI channels, one LVDS supporting 3 independent displays
Dual channel 18/24-bit LVDS (or optional eDP)
Four PCIe x1 or 1 PCIe x4
GbE, four SATA 6 Gb/s, two USB 3.0, six USB 2.0
Supports Smart Embedded Management Agent (SEMA®) functions
Extreme Rugged operating temperature: -40°C to +85°C (optional)

Manufacturer Part No:

91-72211-0040

Brand:

ADLINK

Product Type:

Express Type 6 module

UPC

Product Family:

cExpress-BL-i7-5650U

Shipping Weight:

1 kg

PB Part No:

IPCADL00040

Product Model:

Compact COM

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
