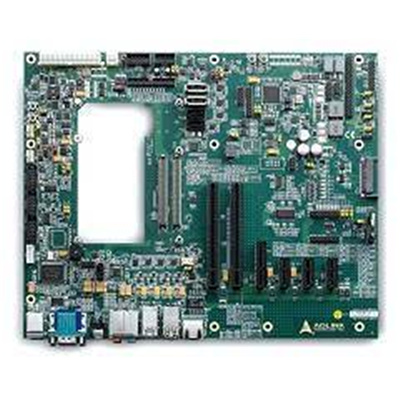

ADLINK Express-BASE7 COM Express type 7 Prototype/Evaluation Board with full size ATX form factor (for Basic and Compact size modules)

PB Tech price
PB Tech price
NZD $ 890 .80
$ 890 .80
$890.80  +GST
$890.80

ADLINK Express-BASE7 COM Express type 7 Prototype/Evaluation Board with full size ATX form factor (for Basic and Compact size modules)

  • Brand: ADLINK
  • MPN: 91-77105-0010
  • Part #: IPCADL00058
  • UPC:
PB Tech price
NZD $ 890 .80 $ 890 .80


Delivery: Order now and it ships on 01 Dec
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$890.80  +GST
$890.80

Features

The Express-BASE7 is an ATX size COM Express Type 7 reference carrier board. Together with the COM Express Type 7 module of your choice and off the shelf add-on cards, you can quickly emulate the functionality of your desired end product for software development and hardware verification.

The Express-BASE7 offers one PCIe x16 Express slot with 10GBASE-KR signals for 10GbE Adapter card (Optical and Copper type, up to four ports) and GbE with SDP pin that can be used for communication related application development. NC-SI and Lite version IPMI BMC can be used for remote management related application development. One PCI Express x16 slot, two PCI Express x8 slots, Serial ATA, USB 3.0/2.0 can be used for the system development require many more peripherals.

Specifications

Specifications

Supports up to four 10GBASE-KR and associated sideband signals
Supports NC-SI interface
One PCI Express x16 slot, one PCI Express x4 slot, three PCI Express x1 slots
Supports 10GbE adapter card via PCIe x16 slot
Dual BIOS (SPI bus)
Conforms to COM Express® Carrier Design Guide

Manufacturer Part No:
91-77105-0010
Brand:
Product Type:
type 7
UPC
-
Product Family:
Express-BASE7
Shipping Weight:
1 kg
PB Part No:
IPCADL00058
Product Model:
COM Express
Warranty: 12 months *
