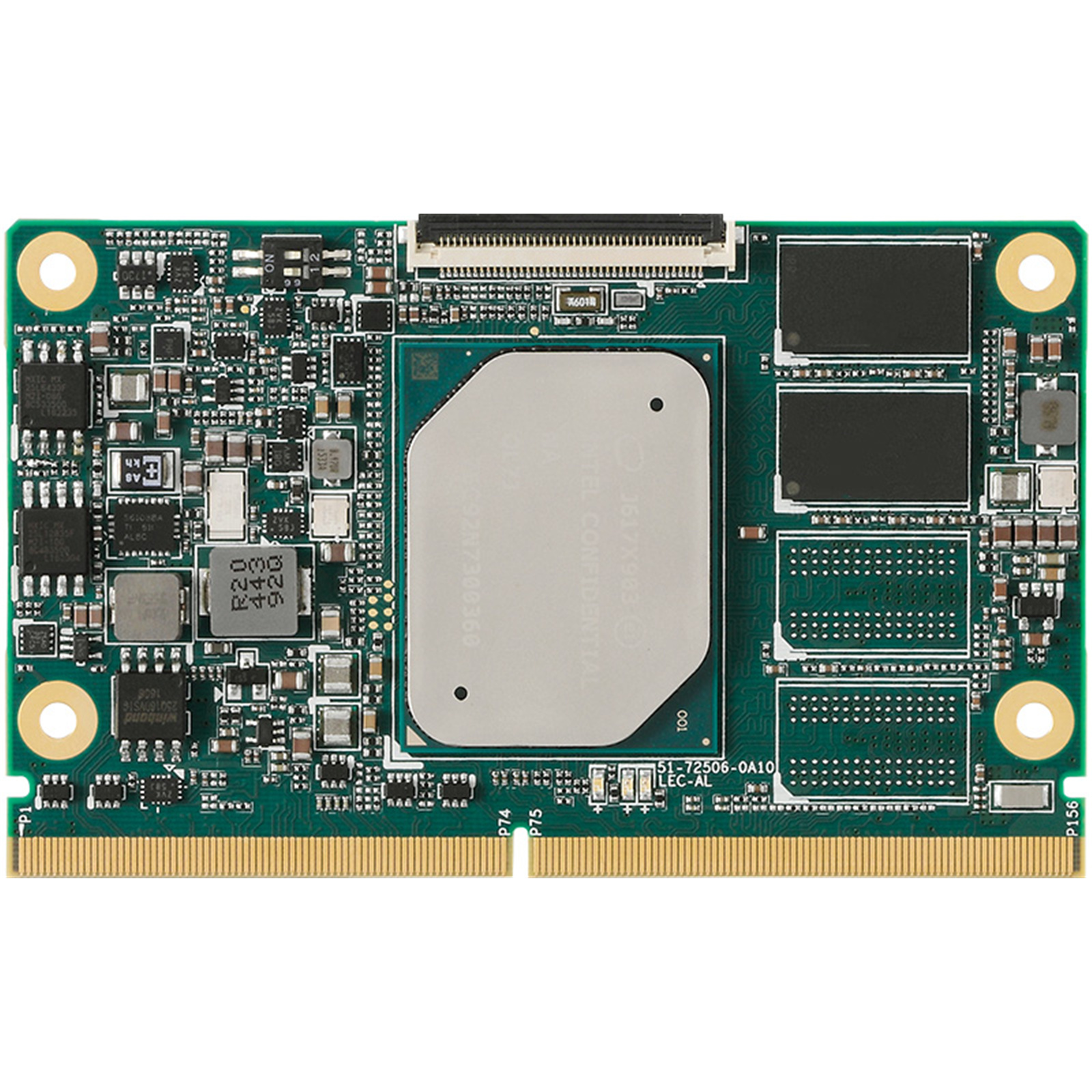

ADLINK LEC-AL-E3930-2G-16G-ER SMARC Short Size Module with Intel Atom E3930, dual core, 2 GB DDR3L, 16GB eMMC, -40 C to 85 C

PB Tech price

NZD $ 560 .88

$ 560 .88

ADLINK LEC-AL-E3930-2G-16G-ER SMARC Short Size Module with Intel Atom E3930, dual core, 2 GB DDR3L, 16GB eMMC, -40 C to 85 C

Brand: ADLINK
MPN: 91-72506-700E
Part #: IPCADL10073
UPC:

PB Tech price

NZD $ 560 .88

In stock at Supplier

Delivery: Order now and it ships on 01 Dec

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: ADLINK
MPN: 91-72506-700E
Part #: IPCADL10073
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The LEC-AL Computer-On-Module (COM) combines the SMARC® 2.0 standard with the latest Intel Atom® E-Series and Pentium® and Celeron® N-series System-on-Chips (SoCs), providing ideal solutions for low power consumption and high performance requirements. The module provides the high integration, high performance, low power, and ruggedness favored by Internet- of-Things (IoT) applications such as retail transactional clients, digital signage, and in-vehicle infotainment systems. The LEC-AL module utilizes the latest Intel E-series and N-series SoCs, which are based on the Intel 64 Architecture, the new HD Graphics 500/505 engine, and a faster, 4-vector image processing unit. The SoCs are manufactured on Intel's industry-leading, tri-gate 14nm process, improving system performance by supporting more than 4 GB of both virtual and physical memory.

The module primarily targets embedded intelligent systems used in several vertical market segments such as healthcare, industrial controllers and real-time systems, retail systems, edge IOT gateways, in-vehicle infotainment systems, printers, thin clients, industrial and ruggedized tablets, and many others. The LEC-AL supports contemporary, high-bandwidth interfaces such as Ultra HD HDMI, dual-channel LVDS, PCI Express Gen2, Gigabit Ethernet, USB 2.0/3.0, SATA Gen3, enhanced MIPI CSI camera, and a state-of-the-art HD Audio interface.

The module generates its own LVDS (18/24bit), TMDS, and Display Port ++ video signals using eDP and DDI output from the SoC. Two SPI Flash chips implement a fail-safe BIOS, allowing the user to boot the module even if current BIOS settings have corrupted the system. Under the management of the BMC chip (Board Management Controller), the SEMA utility (Smart Embedded Management Agent) provides system control, security, and failure protection- counting, monitoring, and measuring hardware and software events, and using the SMBus to send corrective commands to the SoC.

Specifications

Dual or quad-core Intel Atom® E3900 Series or Pentium™ N4200 or Celeron™ N3350 Processor SoC
Up to 8 GB DDR3L at 1867 MHz
Triple display support
HEVC H.265, Dual channel LVDS, HDMI/DP++, DP++, and 2x MIPI CSI camera (2/4 lanes)
1x GbE with IEEE1588 (PTP) supported
1x SATA 3.0, onboard eMMC
4x PCIe x1
Windows 10 IoT Enterprise/Core and Yocto Linux supported

Manufacturer Part No:

91-72506-700E

Brand:

ADLINK

Product Type:

SMARC Short Size Module

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCADL10073

Product Model:

LEC-AL-E3930-2G-16G-ER

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
