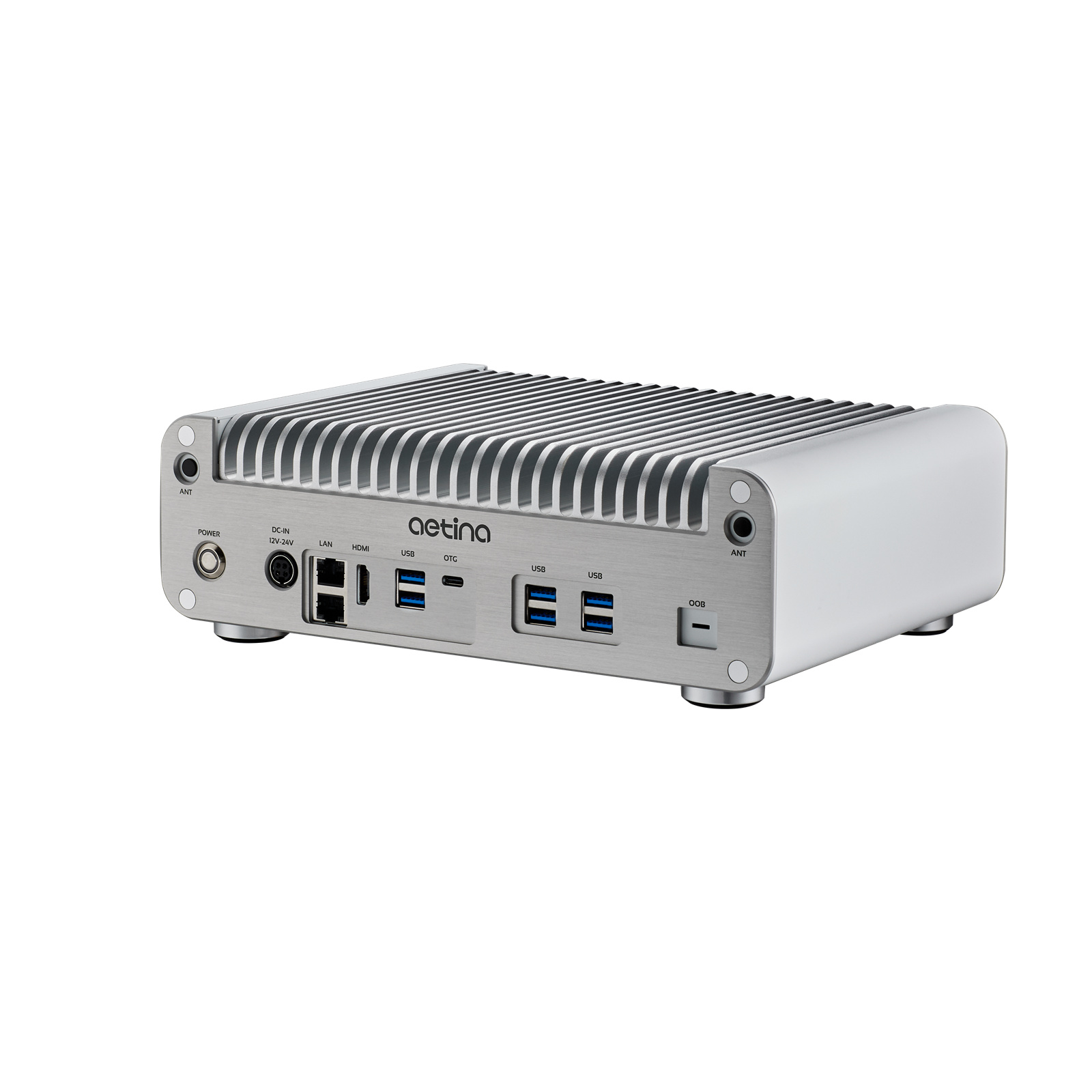

Aetina Fanless System ORIN NX 16GB 1 x HDMI, 2 x GbE, 6 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25 C + 55 C

PB Tech price
PB Tech price
NZD $ 3,007 .06
$ 3,007 .06

Out of stock

Aetina Fanless System ORIN NX 16GB 1 x HDMI, 2 x GbE, 6 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25 C + 55 C

  • Brand: Aetina
  • MPN: AIE-PN43-6USB
  • Part #: IPCAEA10012
  • UPC:
PB Tech price
NZD $ 3,007 .06 $ 3,007 .06
Out of stock
Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Aetina
  • MPN: AIE-PN43-6USB
  • Part #: IPCAEA10012
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

 Support NVIDIA Jetson Orin™ NX and Orin Nano™ module

 6 x USB 3.2, 1 x OTG Type-C

 2 x RJ-45 GbE ports

 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot

 Wide input voltage range from 12 to 24 VDC

 Operating Temperature -25°C ~ +55°C

 Fanless Design

 Supports device remote management via EdgeEye



Spotting as a reliable and powerful AI inference device, the Aetina fanless and versatile expansion edge AI system-AIE-PN33/43-6USB is designed to incorporate 6 x USB 3.2 enable to support up to 6 USB camera connectivity. Coupled with versatile I/O and expansion options, it meets various needs of AI deployment. Powered by an NVIDIA® Jetson Orin™ NX, the AIE-PN33/43-6USB delivers up to 100 TOPS of AI performance and is also compatible with the NVIDIA® Jetson Orin Nano™ module, as demonstrated by our release of the AIE-PO23/33-6USB. Both systems offer users full bandwidth and power package to complement and scale video inputs for AI inference at the edge.



? Up to 100 TOPS AI performance enables AI inference on the Edge
AIE-PN33/43-6USB and AIE-PO23/33-6USB are fully compatible with NVIDIA Jetson Orin NX and Orin Nano modules, delivering exceptional AI performance. Thanks to the 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores embedded in an NVIDIA Jetson Orin NX, AIE-PN33/43-6USB drives up to 100 TOPS AI performance for high-resolution data processing and real-time inferencing.
? Comprehensive M.2 expansion and USB ports
AIE-PN33/43-6USB and AIE-PO23/33-6USB are fanless systems with high expansion ability, built-in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for NVMe expansion storage with fast data transmission. Its on-board 6 x USB 3.2 ports can supply a total of six USB type cameras or devices. By integrating with Aetina's BSP and NVIDIA Jetpack toolkit supporting, both AIE-PN33/43-6USB and AIE-PO23/33-6USB are ideal for real-time visual inspection such as security alert, defect detection, AOI inspection, automatic high-resolution sorting.
? Support EdgeEye for Device Remote Management

AIE-PN33/43-6USB and AIE-PO23/33-6USB ease remote management burdens through integrated support for EdgeEye. IT staff can use the EdgeEye cloud platform to monitor, control, and reboot distributed edge systems conveniently from a central management console.

Specifications

Model Number

AIE-PN43-6USB

Module Compatibility

NVIDIA Jetson Orin NX 16GB

AI Performance

100 TOPS

GPU

1024 Core NVIDIA Ampere, with 32 Tensor Cores

CPU

8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3

Memory

16GB 128-bit LPDDR5 102.4 GB/s

Storage

1 x M.2 NVMe M-Key 2242 (128GB built-in)

Display

1 x HDMI 2.0 Type A

TPM

Not supported

LAN

2 x RJ-45 GbE ports

USB

2 x USB 3.2 Gen2 Type A (support up to 10 Gbps shared)
4 x USB 3.2 Gen1 Type A
1 x OTG Type-C

I/O Interfaces

5 x GPIO,
1 x UART,
1 x I2C,
1 x RS-232,
1 x RS-422/485,
1 x CAN (isolation; support CAN FD)

Expansion

1 x M.2 B-Key 3042/3052 (LTE/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)

MISC. Function

1 x Power Button / 1 x Recovery Button / 1 x Reset Button

Power Input/Connector

DC-in 12-24VDC / 4-Pin DC Jack Power Connector

Power Consumption

Idle: 6.413
Full Loading: 47.13* W
*For more test condition information, please refer to user manual

Dimension (WxDxH)

270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)

Mounting

Wall Mount (optional) / Din Rail (optional)

Net Weight

TBC Kg (TBC lb)

Vibration

1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock

10 G, IEC 60068-2-27, half sine, 11 ms duration

Temperature

Operating Temp. -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)

Humidity

95% @ 40°C (104°F) (non-condensing)

Software Support

Linux (Support Jetpack 5.0 above)

Certification

CE / FCC Class A / UKCA

Manufacturer Part No:
AIE-PN43-6USB
Brand:
Aetina
Product Type:
-
UPC
-
Product Family:
Fanless System
Shipping Weight:
1 kg
PB Part No:
IPCAEA10012
Product Model:
ORIN NX 16GB
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
