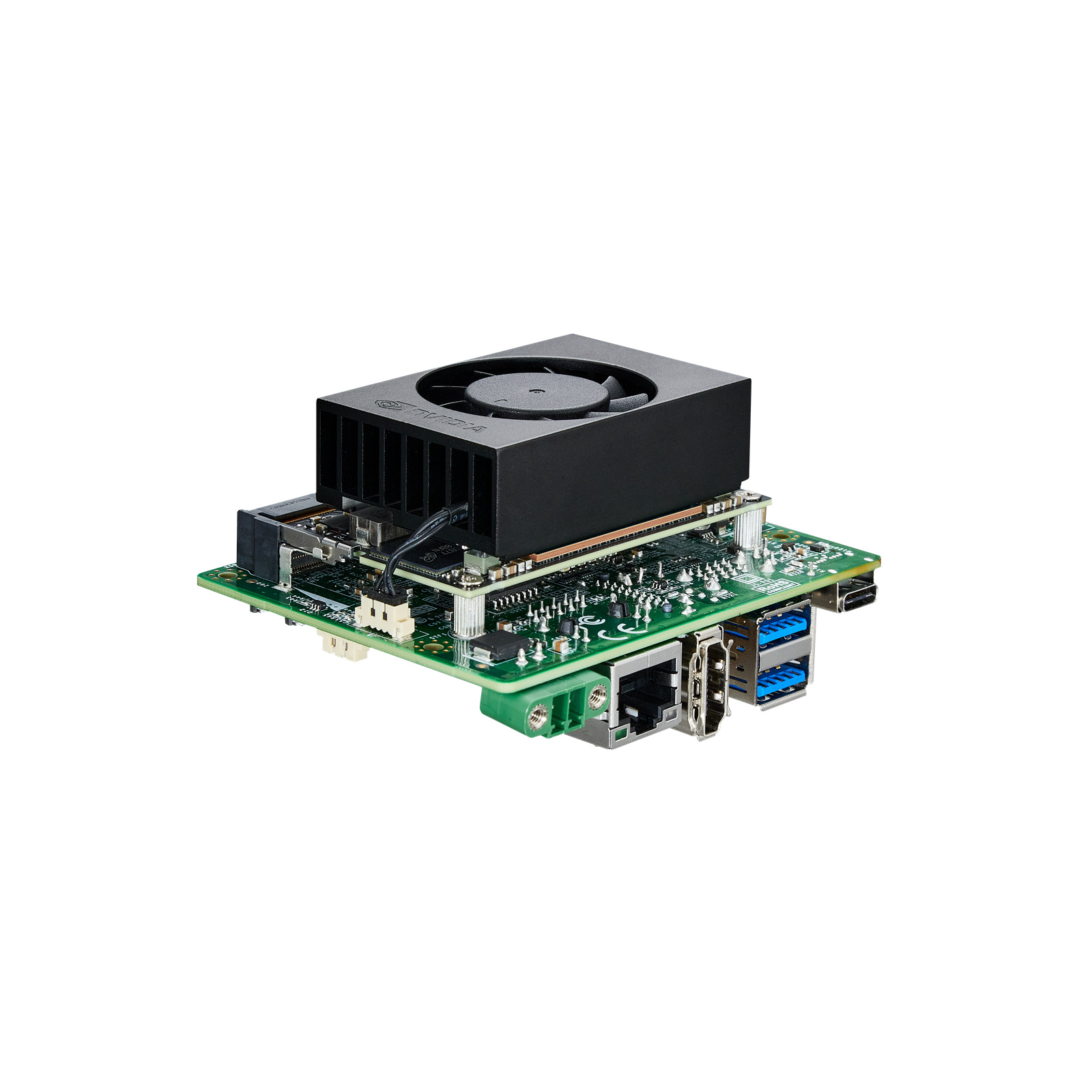

Aetina Platform ORIN NANO 8GB 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -25 C + 80 C
- Brand: Aetina
- MPN: AIB-SO31
- Part #: IPCAEA10041

Product URL: https://www.pbtech.com/pacific/product/IPCAEA10041/Aetina-Platform-ORIN-NANO-8GB-1-x-HDMI-1-x-GbE-2-x
Features
Supports NVIDIA Jetson Orin™ NX and Orin Nano™ module
Wide input voltage range from 12 to 24VDC
1 x M.2 E-Key, 1 x M-Key (NVMe 128GB built-in)
Supports Innodisk Out-of-Band Remote Management Module (optional)
Operating temperature -25°C ~ +80°C
? Up to 80 x AI performance enables AI inference in the smallest Jetson form factor
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.
? Sufficient M.2 for internal and external storage expansion
AIB-SO31 are edge computing platforms, built in 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIB-SO31 support external M.2 2242 NVMe with fast data transmission.
? Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIB-SO31 support operating temperature ranging from -25°C to 80°C and wide input power from 12 to 24VDC.
Specifications
Model Number
AIB-SO31
Module Compatibility
NVIDIA Jetson Orin Nano 8GB
AI Performance
40 TOPS
GPU
1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU
6-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory
8GB 128-bit LPDDR5 68GB/s
Storage
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
Display
1 x HDMI 2.0 Type A
Audio
Line-out / Line-in / Mic (optional with daughter board)
RTC
With super capacitor, battery (optional)
MIPI Camera Input
2 x 4-Lane MIPI CSI-2 22-Pin Connector
LAN
1 x RJ-45 GbE ports
USB
2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
1 x OTG Type-C
I/O Interfaces 5 x GPIO,
1 x I2C,
1 x I2S,
1 x RS-232,
1 x UART,
1 x UART (Debug Only ),
1 x SPI, 1 x CAN (isolation; support CAN FD)
Expansion
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
MISC. Function
1 x Power / 1 x Recovery / 1 x Reset Button
Power Consumption
Idle: 5.4 W
Full Loading: 27.08* W
*For more test condition information, please refer to user manual
Power Input/Connector
DC-in 12-24VDC / 2-Pin Terminal Block
Dimension (WxDxH)
87.4 x 67.4 x 28.45 mm (3.44 x 2.65 x 1.12 in)
Net Weight
0.144 kg (0.32 lb) w/ Fansink
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature
Operating Temp. -25°C ~ +80°C (-13°F ~ +176°F)
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)
Humidity
95% @ 40°C (104°F) (non-condensing)
Software Support
Linux (Support Jetpack 5.0 above)
Certification
CE / FCC Class A / UKCA
