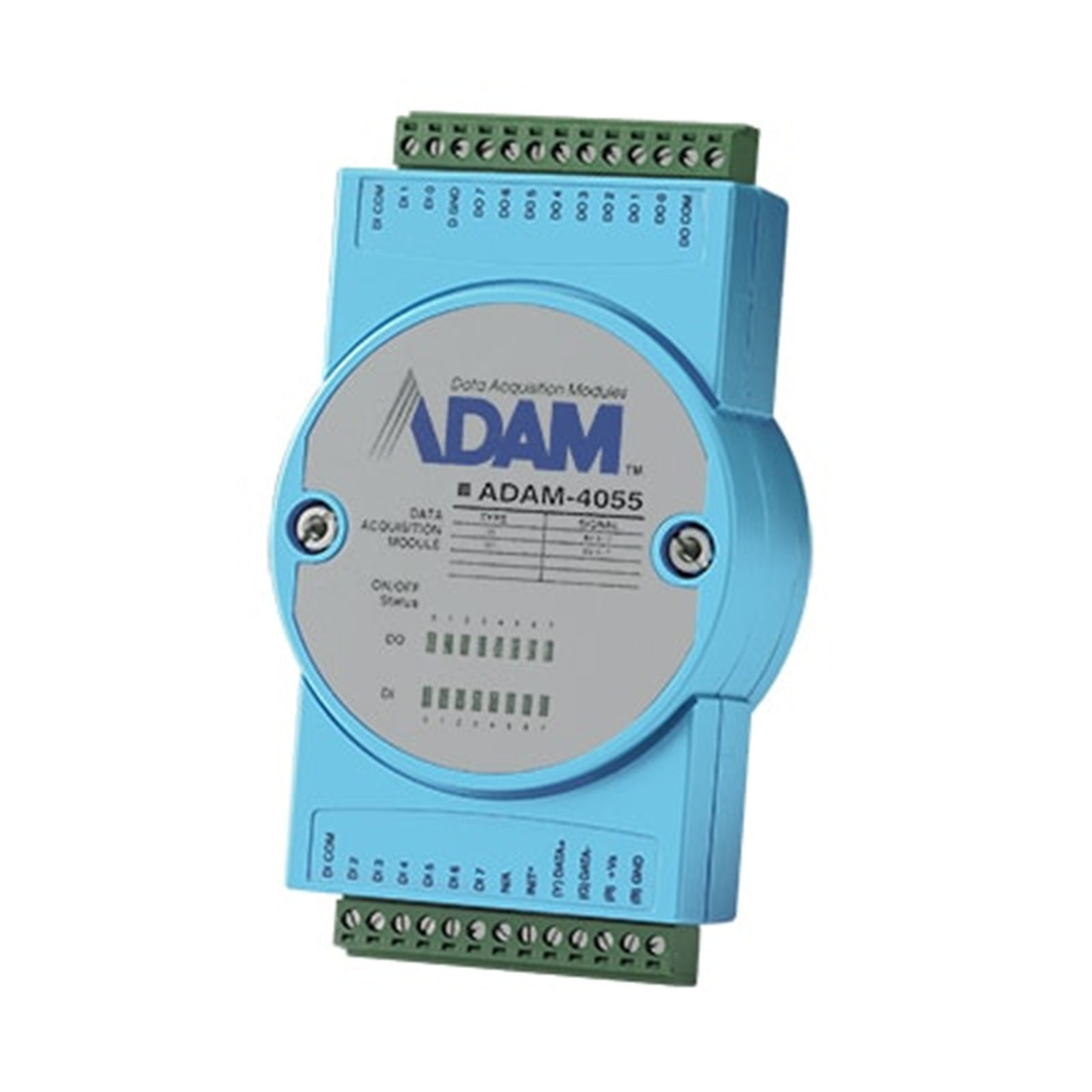

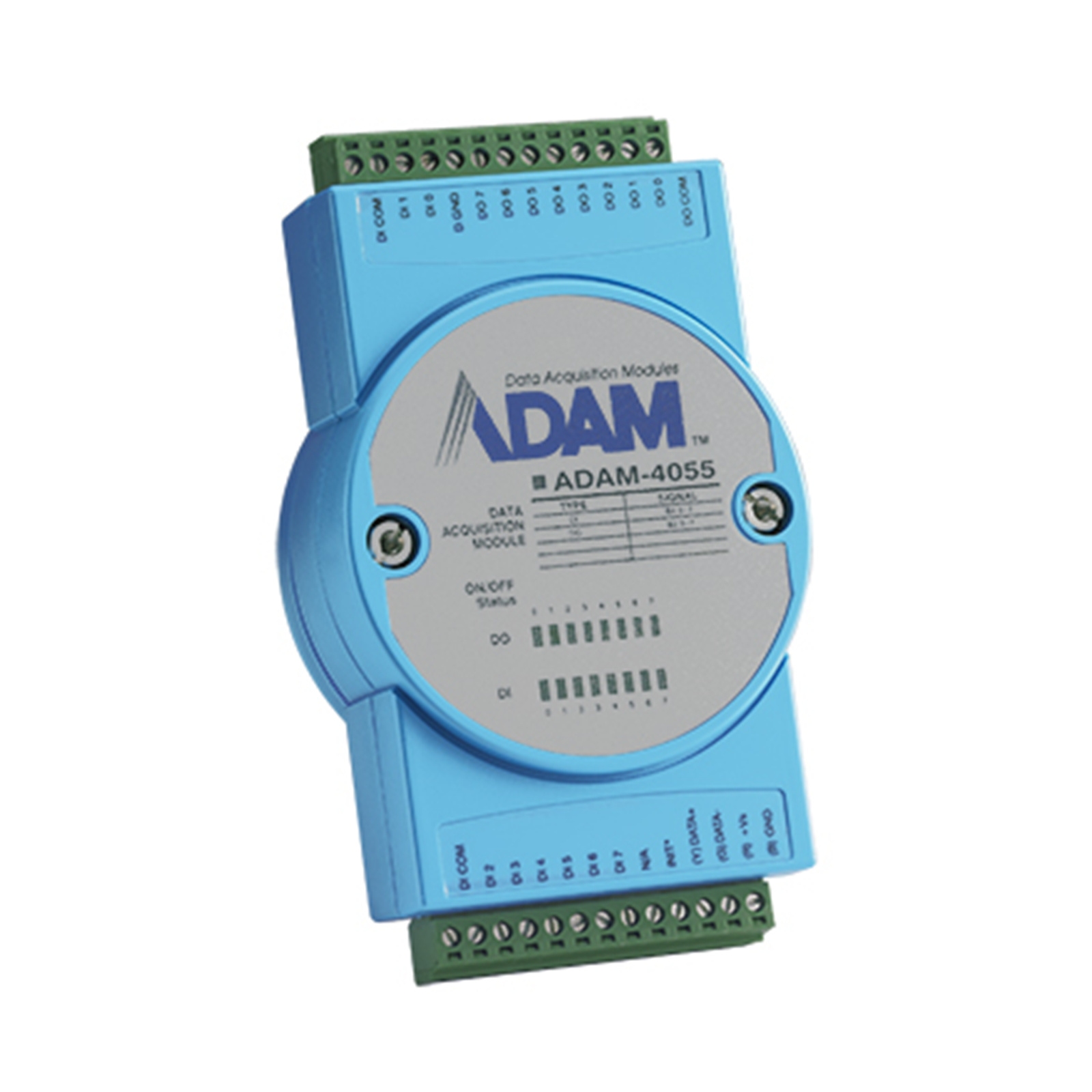

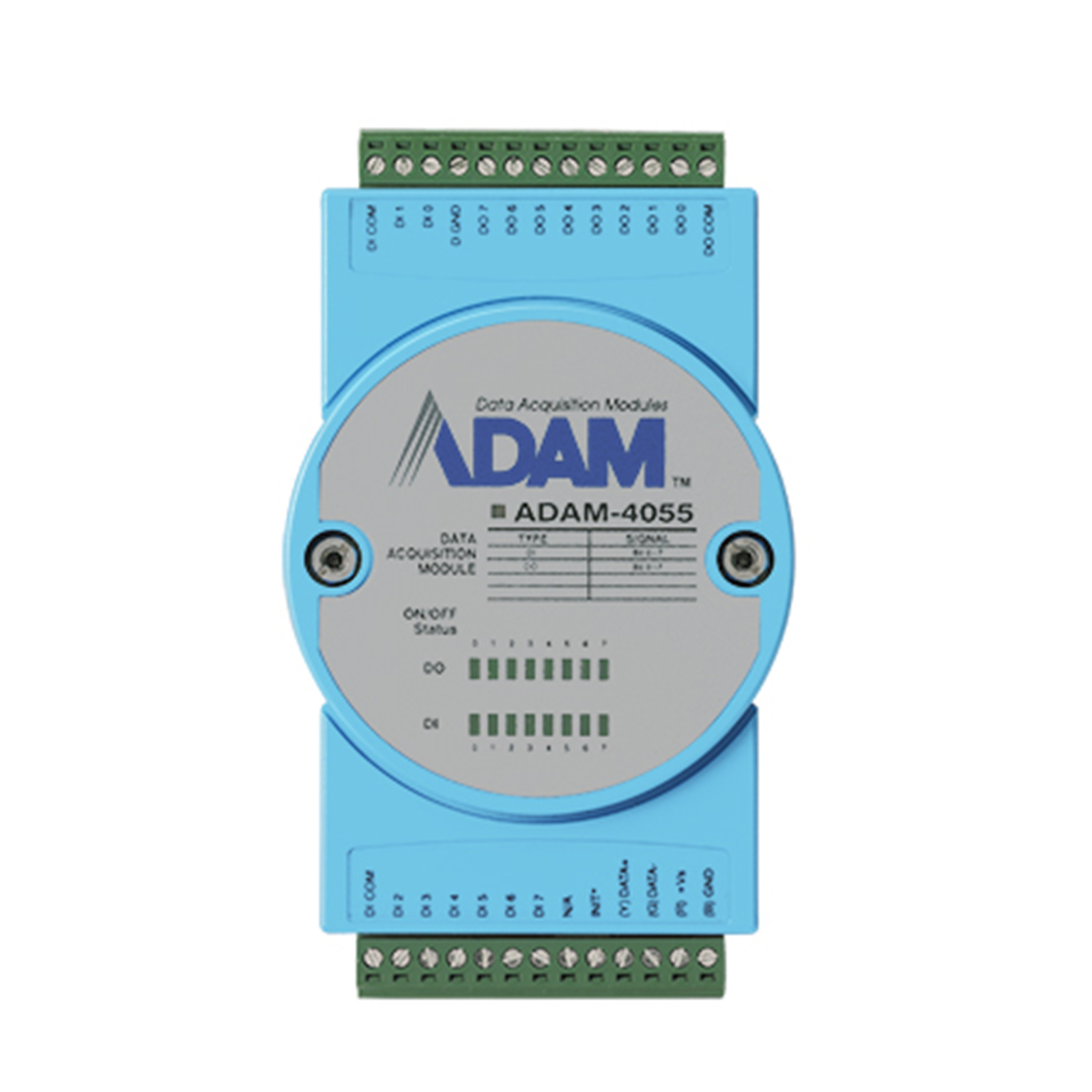

Advantech ADAM-4055-C 16-Ch Isolated DI/DO Module w/ LED & Modbus
- Brand: Advantech
- MPN: ADAM-4055-C
- Part #: IPCAVH010003

Product URL: https://www.pbtech.com/pacific/product/IPCAVH010003/Advantech-ADAM-4055-C-16-Ch-Isolated-DIDO-Module-w
Features
The ADAM-4055 offers 8-ch. isolated digital inputs and 8-ch. isolated digital outputs for critical applications. The inputs accept 10~50 V voltage, and the outputs supply 5~40 VDC open collector. Considered to be user-friendly. The ADAM-4055 is also built with LED indicator for easy status reading.
- 8ch digital input/8ch digital output
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 2500VDC isolation protection
Specifications
Connectors
2 x plug-in terminal blocks (#14 ~ 28 AWG)
Power Consumption
1 W @ 24 V DC typ.
1.7 W @ 24 V DC max.
Watchdog Timer
System (1.6 second) & Communication
Supported Protocols
ASCII command and Modbus/RTU
Isolation Voltage
2,500 VDC
LED Indicators
Yes
?Channel
8
Input Level
Dry Contact
Logic level 0: open
Logic level 1: close to GND
Wet Contact
Logic level 0: 3 V max.
Logic level 1: 10 ~ 50 V
Overvoltage
70 VDC
Digital Output
Channels 8, open collector to 40 V (200 mA max. load)
Power Dissipation
Channel: 1 W max.
Total: 2.2 W (8 Channels)
