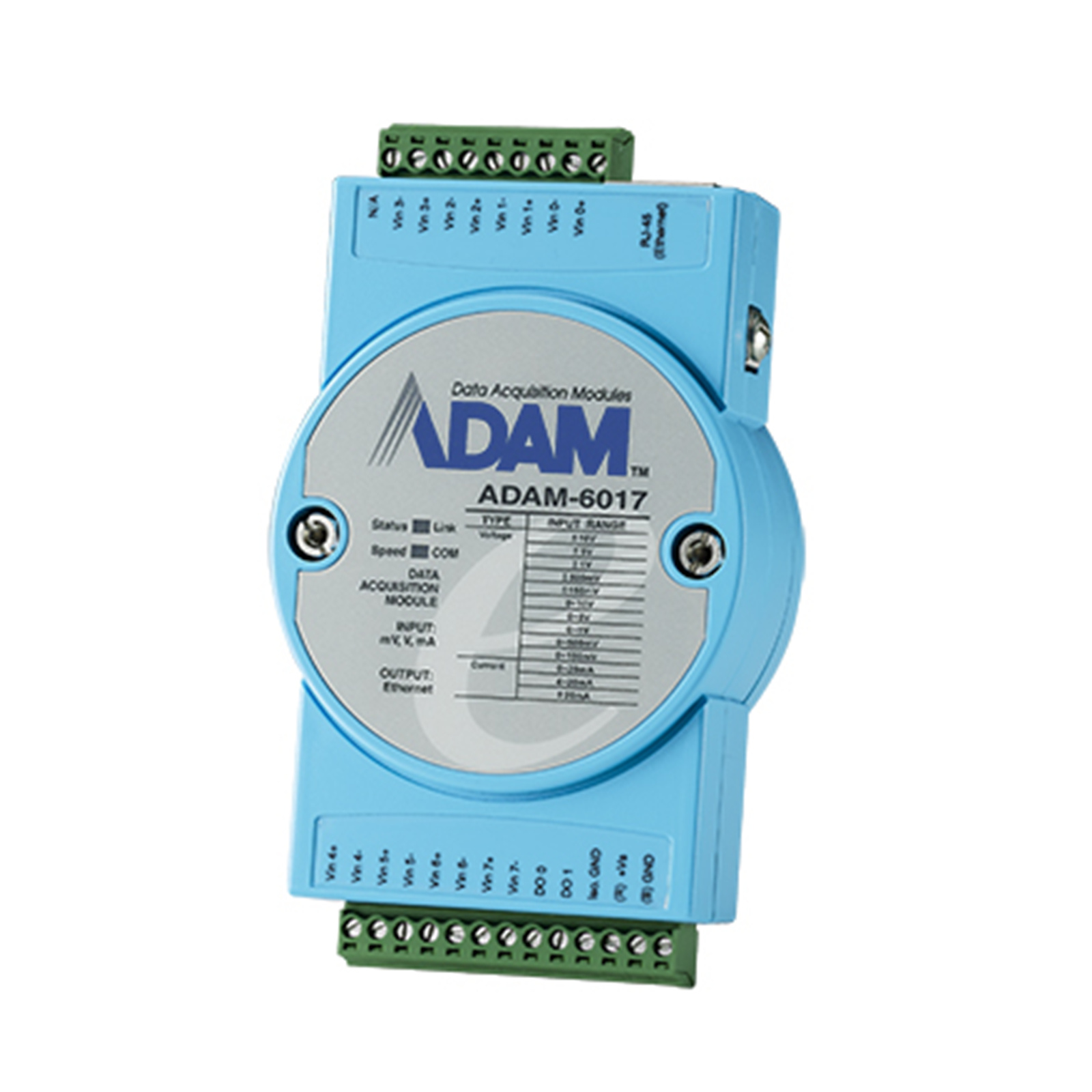

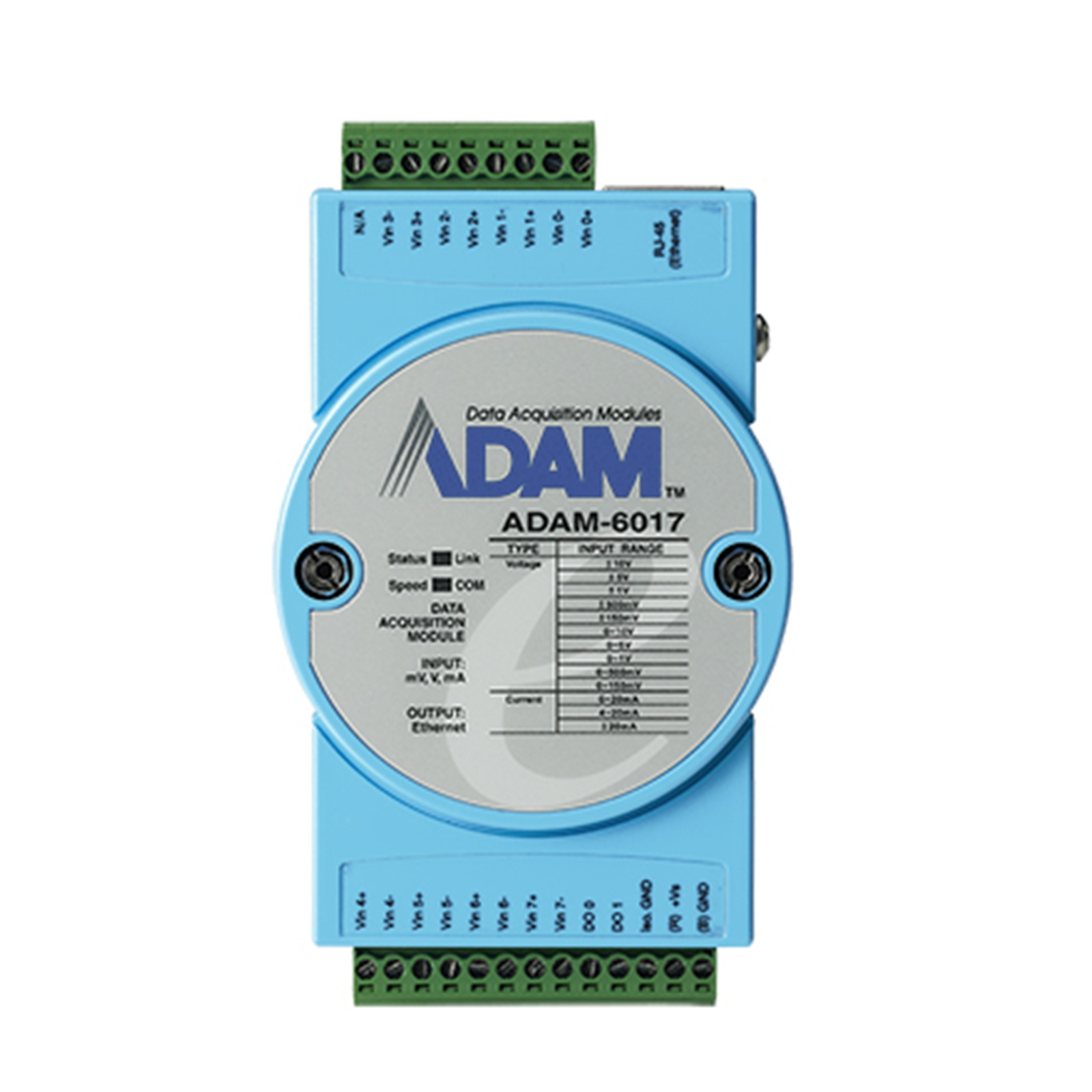

Advantech ADAM-6017-D 8AI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O
- Brand: Advantech
- MPN: ADAM-6017-D
- Part #: IPCAVH010020

Product URL: https://www.pbtech.com/pacific/product/IPCAVH010020/Advantech-ADAM-6017-D-8AI2DO-IoT-ModbusSNMPMQTT-Et
Features
The ADAM-6017 is designed with 8 analog inputs and 2 digital outputs to satisfy all plant needs. Each analog channel is allowed to configure an individual range for variety of applications.
- 8ch analog input(voltage or current)/2ch digital output
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the system
Specifications
Channels
8
Input Range
±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V
lnput Type
V, mV, mA
Resolution(Bits)
16-bit
Sampling Rates(S/s)
100 S/s (sum)
Interface
Ethernet
Isolation Voltage
2,000 VDC
Operating Temperature
-40~70 °C (-40~158 °F)
Connectors
1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Channels
2
Output Type
Sink
Output Voltage
0~30 VDC
Sink Current
100 mA max./channel
Input Voltage
10~30 VDC
