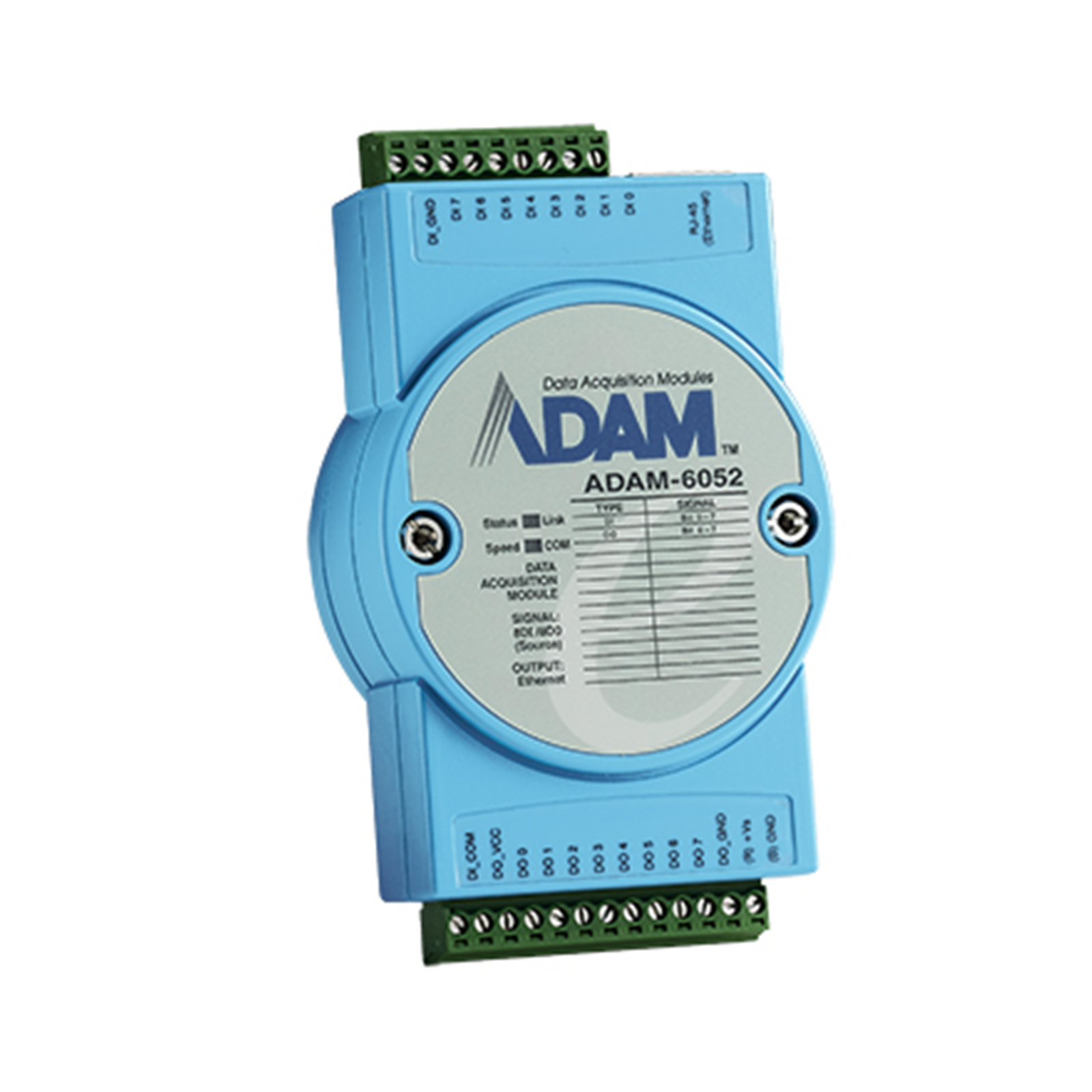

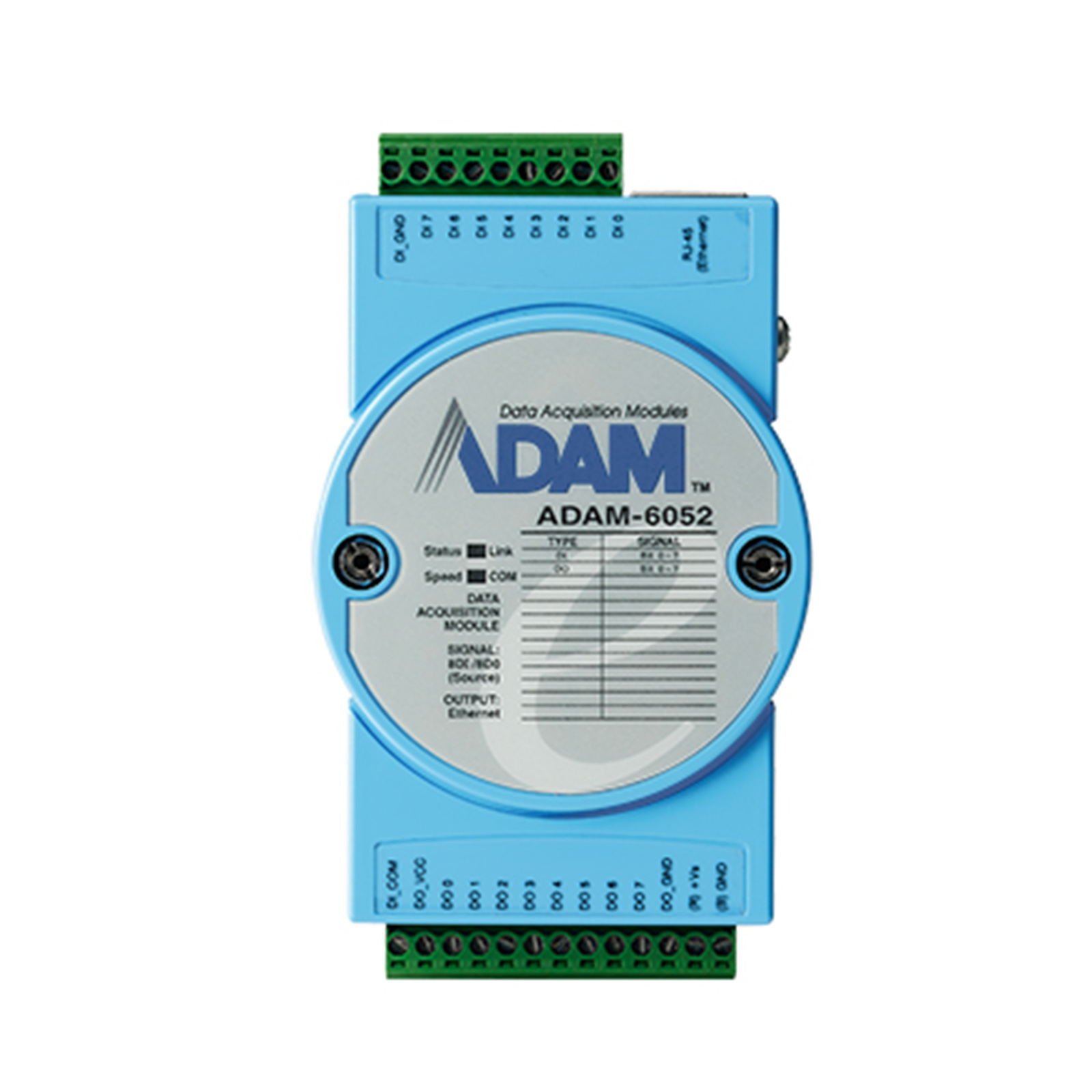

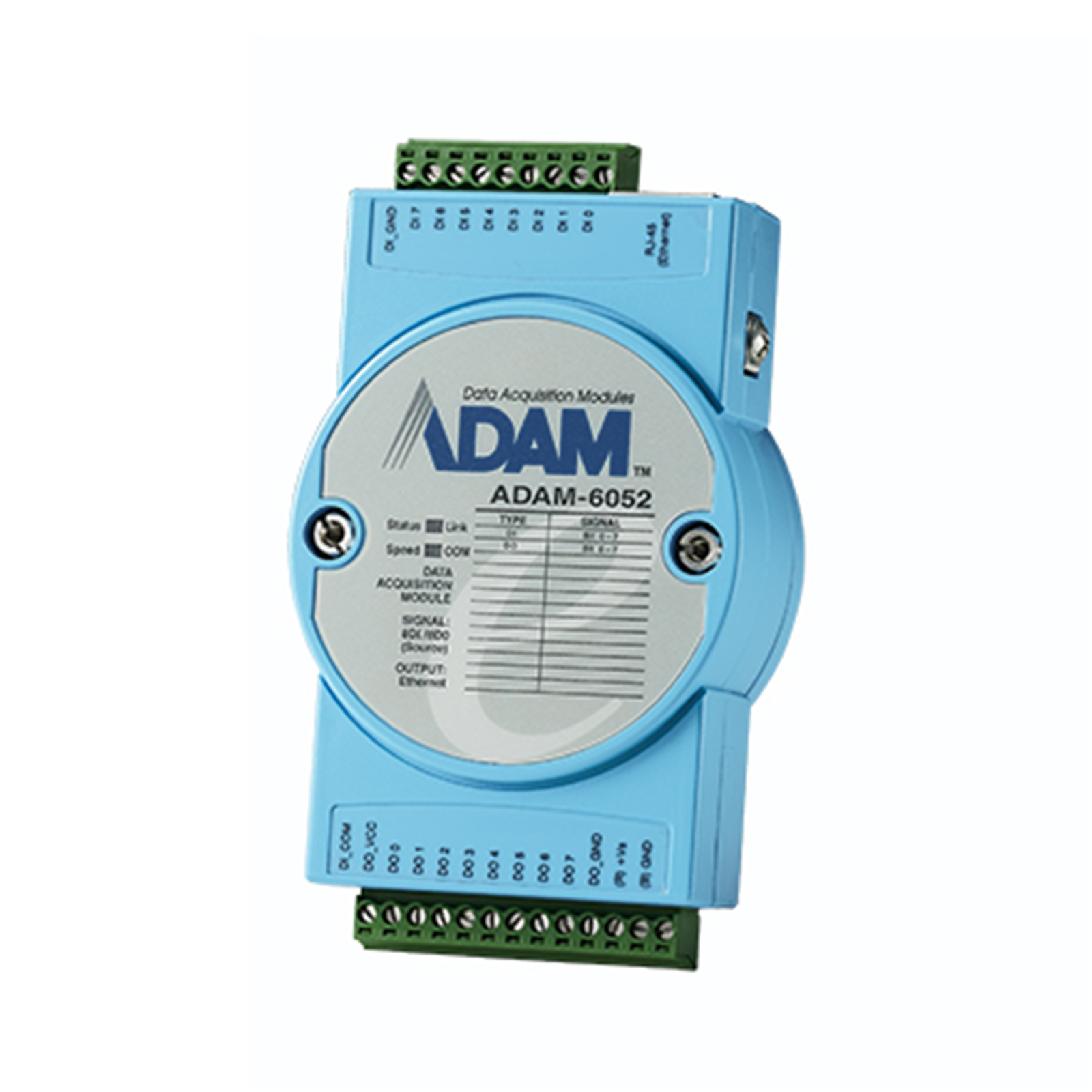

Advantech ADAM-6052-D 8DI/8DO(source type) IoT Modbus/SNMP/MQTT Ethernet Remote I/O

PB Tech price

NZD $ 380 .30

$ 380 .30

Advantech ADAM-6052-D 8DI/8DO(source type) IoT Modbus/SNMP/MQTT Ethernet Remote I/O

Brand: Advantech
MPN: ADAM-6052-D
Part #: IPCAVH010025
UPC:

PB Tech price

NZD $ 380 .30

In stock at Supplier

Delivery: Order now and it ships on 24 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: ADAM-6052-D
Part #: IPCAVH010025
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.

- 8ch digital input(counter)/8ch source type digital output(pulse output)
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the system

Specifications

Interface

Ethernet

Isolation Voltage

2,000 VDC

Operating Temperature

-40~70 °C (-40~158 °F)

Connectors

1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command

Channels

Input Voltage

Dry Contact
Logic level 0: close to GND
Logic level 1: open
Wet Contact
Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC

Channels

Output Type

Source

Output Voltage

10~35 VDC

Sink Current

1 A max./channel

Input Voltage

10~30 VDC

Max. Input Frequency

3 kHz

Channels

Manufacturer Part No:

ADAM-6052-D

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

0.2 kg

PB Part No:

IPCAVH010025

Product Model:

ADAM-6052-D

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
