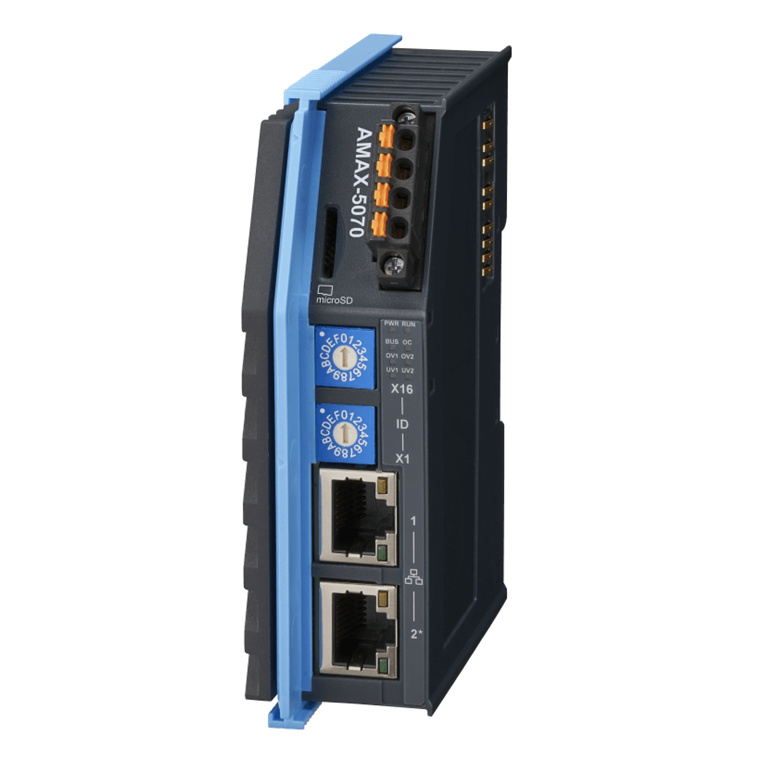

Advantech AMAX-5070-A Modbus/TCP Coupler with ID Switch Coupler

PB Tech price

NZD $ 500 .04

$ 500 .04

Advantech AMAX-5070-A Modbus/TCP Coupler with ID Switch Coupler

Brand: Advantech
MPN: AMAX-5070-A
Part #: IPCAVH011005
UPC:

PB Tech price

NZD $ 500 .04

In stock at Supplier

Delivery: Order now and it ships on 07 Nov

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: AMAX-5070-A
Part #: IPCAVH011005
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Modbus TCP Coupler with ID Switch Slice IO Module

- User-friendly Group ID technology. Quick and accurate setup.
- Cable redundancy for enhanced connectivity. Ensures reliable and stable communication with connected devices.

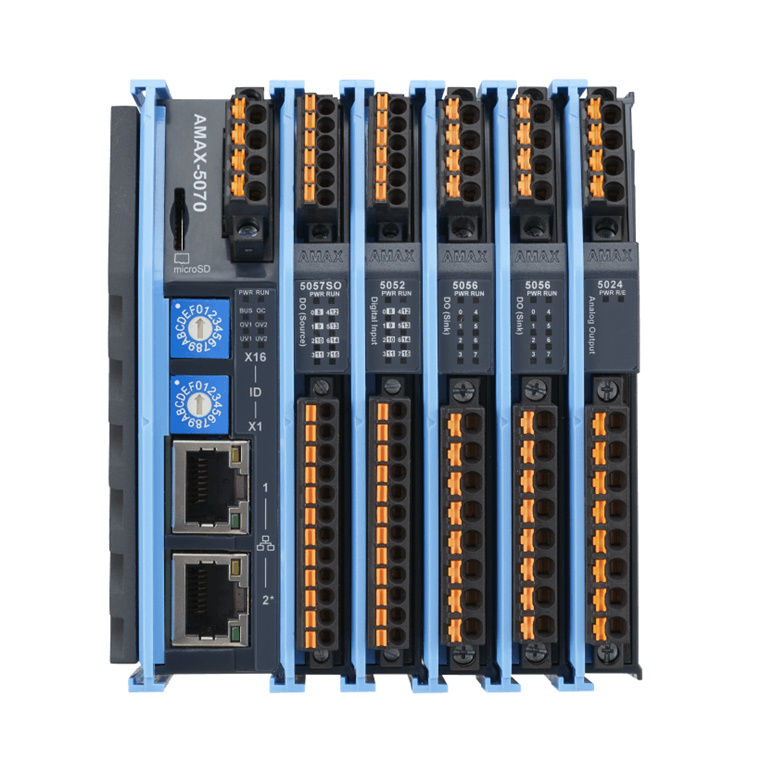

- High-density design. Supports up to 256 AMAX-5000 Slice I/O: Allows for extensive data collection and connectivity options.
- Compact size: 11 x 3 cm form factor. Space-saving and efficient utilization of equipment space.
- Function diversity. AMAX-5000 provides 15 functional I/O modules.

Specifications

Coupler

Function

Coupling EtherCAT I/O modules to Modbus TCP network

Number of Configurable IDs

0~255

TCP Connection No.

BUS Interface

2 x RJ45 (1 x Input, 1 x Output)

Cable

Ethernet/ EtherCAT cable (min. Cat. 5), shielded

Distance between Stations

Max. 100 m (100BASETX)

General

Rated Voltage

24 VDC (±20%)

Max Current on Bus

2 A

Diagnosis Function

Over/under voltage for input 1&2
Over current output on bus

Protocol

Modbus/TCP

Hardware

Dual Power Input

Supported

Certification

CE, FCC class A

LED Indicators

PWR, RUN / ERROR, Power Diagnosis LED

Power Consumption

3 W @ 24 VDC

Environment

Isolation Voltage

2,000 VDC

Operating Temperature

-25~60 °C (-13~140 °F)

Relative Humidity

95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

Storage Humidity

95% RH (non-condensing)

Mechanical

Enclosure

PC + Aluminum Alloy

Mounting

DIN-rail

Weight (Net)

167 g

Dimension (W x H x D)

28.9 x 105.9 x 93.0 mm

Manufacturer Part No:

AMAX-5070-A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH011005

Product Model:

AMAX-5070-A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
