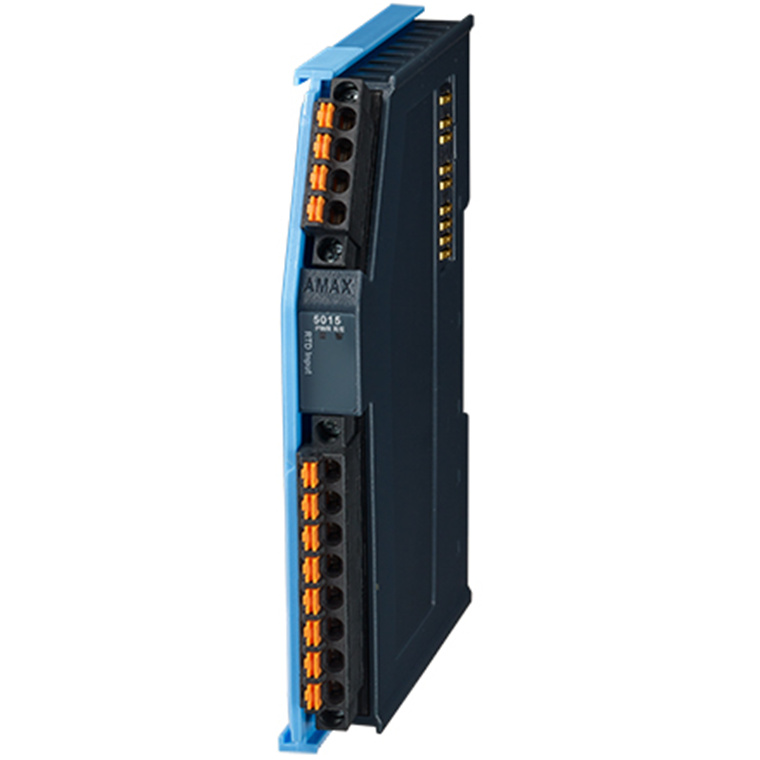

Advantech AMAX-5015-A 2-ch Power Input with 4-ch Digital Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5015-A
- Part #: IPCAVH011008

Product URL: https://www.pbtech.com/pacific/product/IPCAVH011008/Advantech-AMAX-5015-A-2-ch-Power-Input-with-4-ch-D
Features
4-ch RTD Input EtherCAT Slice IO Module
- RTD Input
- Channels : 4
- Input Connections : 2 or 3 wire
- Resolution : 16 bit with ±0.1% FSR accuracy
- Sample Rate: 100 sample/s (per channel)
- Burn-out detection: Yes
Specifications
Analog Input
Channels
4
Burn-out Detection
Yes
Sampling Rates(S/s)
100 S/s (per channel)
RTD Input
Input Type
Pt 100, Pt 1000, Balco 500, Ni 518
Resolution
16-bit
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR
Power Consumption
2 W@ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
82 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
