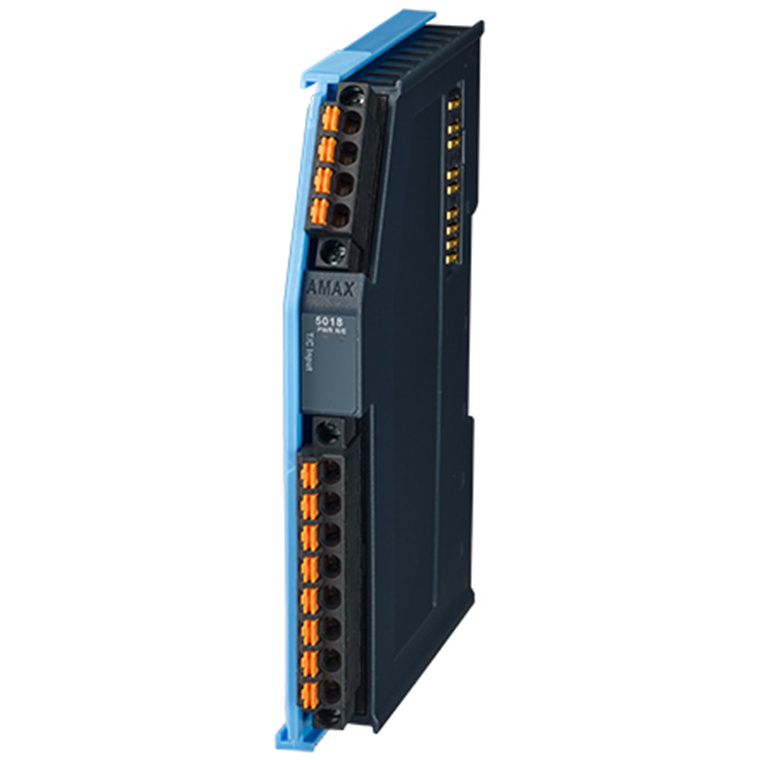

Advantech AMAX-5018-A 6-ch Thermocouple Input EtherCAT Slice IO Module

PB Tech price

NZD $ 422 .64

$ 422 .64

Advantech AMAX-5018-A 6-ch Thermocouple Input EtherCAT Slice IO Module

Brand: Advantech
MPN: AMAX-5018-A
Part #: IPCAVH011012
UPC:

PB Tech price

NZD $ 422 .64

In stock at Supplier

Delivery: Order now and it ships on 06 Nov

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: AMAX-5018-A
Part #: IPCAVH011012
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

6-ch Thermocouple Input EtherCAT Slice IO Module

- Channels: 6 differential
- Input Type: V, mV, Thermocouple
- Input Impedance: >2MO
- Voltage Range: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
- Resolution: 16-bit
- FSR accuracy: 16-bit with ±0.1% @25°C
- Sample Rage: 100 Sample/Second (per channel)

Specifications

Thermocouple Input

Channels

Temperature Range

Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C), Type N (-200~1300° C)

Voltage Range

±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V

Sample Range

100 S/s (per channel)

Input Impedance

> 2 MO

Analog Input

Resolution(Bits)

16-bit with ±0.1% FSR accuracy @25°C

General

Connectors

1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal

Protocol

EtherCAT

Cycle Time

100 µs

Hardware

Certification

CE, FCC class A

LED Indicators

PWR, RUN / ERROR

Power Consumption

2 W@ 24 VDC

Environment

Isolation Voltage

2,000 VDC

Operating Temperature

-25~60 °C (-13~140 °F)

Relative Humidity

95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

Storage Humidity

95% RH (non-condensing)

Mechanical

Enclosure

Mounting

DIN-rail

Weight (Net)

87 g

Dimension (W x H x D)

14.6 x 105.9 x 94.7 mm

Manufacturer Part No:

AMAX-5018-A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH011012

Product Model:

AMAX-5018-A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
