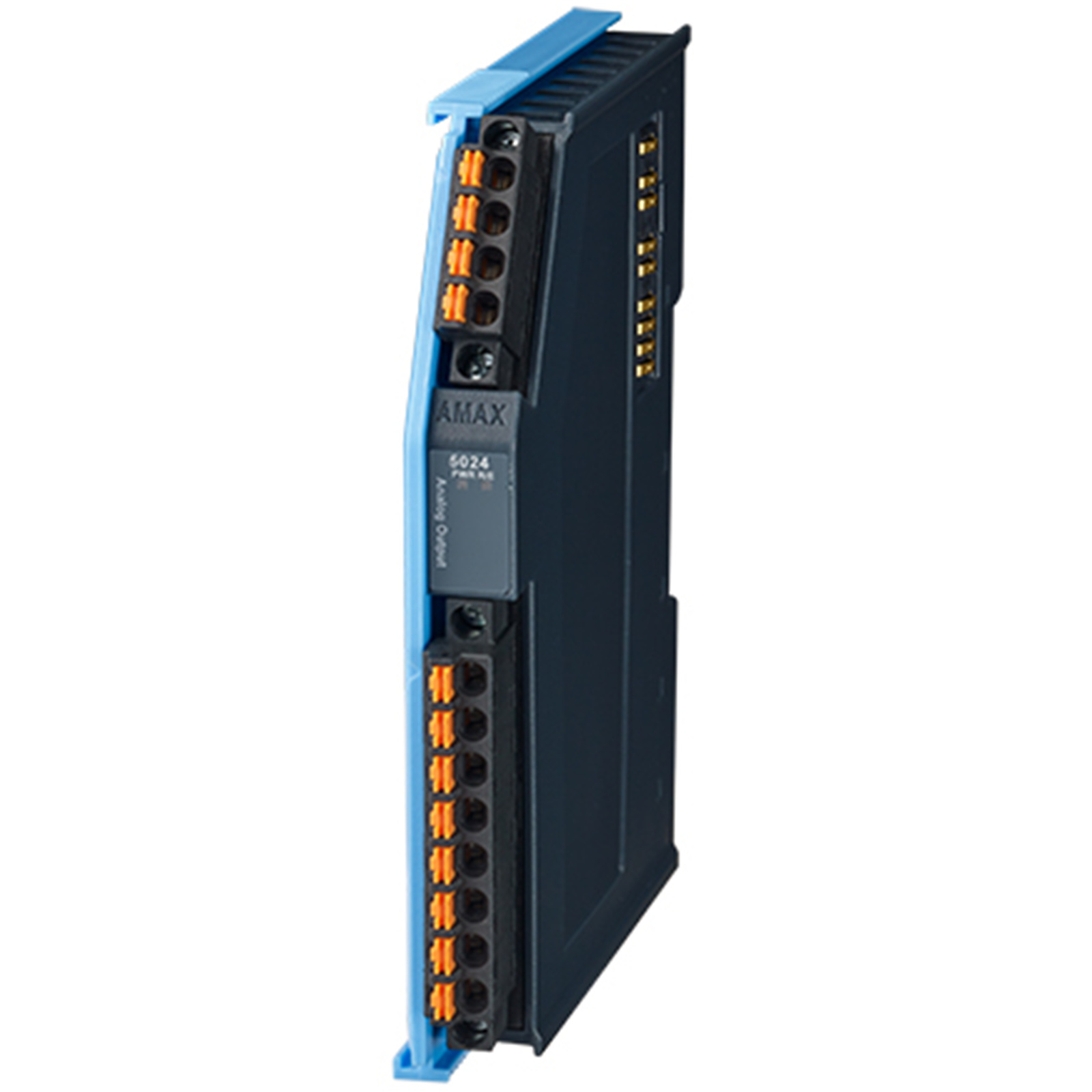

Advantech AMAX-5024-A 4-ch Analog Output EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5024-A
- Part #: IPCAVH011013

Product URL: https://www.pbtech.com/pacific/product/IPCAVH011013/Advantech-AMAX-5024-A-4-ch-Analog-Output-EtherCAT
Features
4-ch Analog Output EtherCAT Slice IO Module
- Channels: 4
- Output Type: V, mV, mA
- Output Range: 0~5V, 0~10V, ±5V, ±10V, 4~20mA, 0~20mA
- Resolution: 16-bit with accuracy, 0.01% FSR @ 25°C
- Slew Rate: Configurable
- Drift: ± 50 ppm/°C
- Current Load Resistor: Max. 500 O
- Voltage Load Resistor: Min. 1KO
Specifications
Analog Output
Channels
4
Output Ranges
0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Output Type
mV, V, mA
Resolution
16-bit
Drift
±50 ppm/°C
Slew Rate
Configurable
Load
> 1 kO (voltage output); < 500 O (current output)
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR
Power Consumption
3.5 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
87 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
