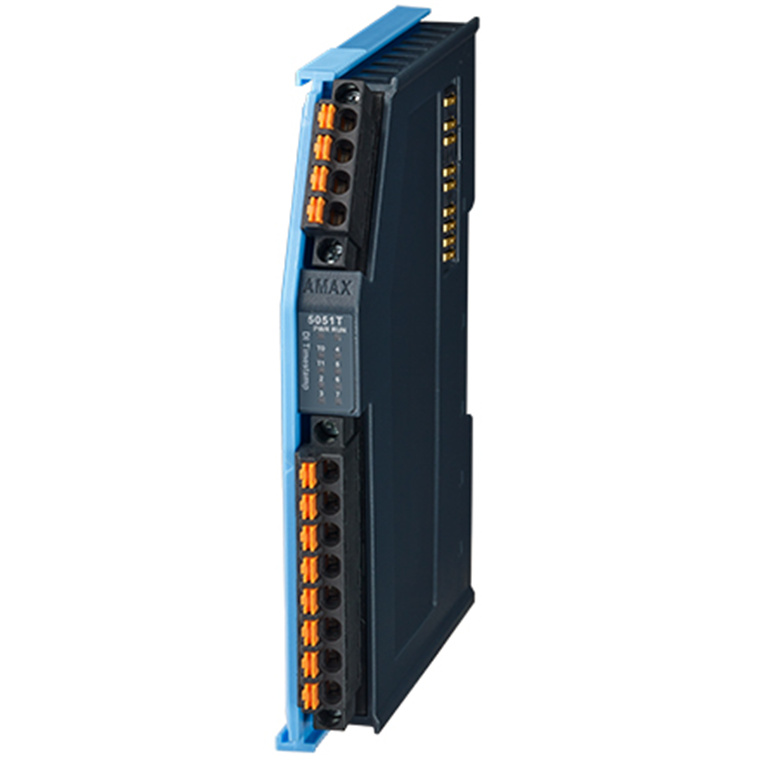

Advantech AMAX-5051T-A 8-ch Digital Input (2-ch Timestamp & 6-ch without Timestamp) EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5051T-A
- Part #: IPCAVH011015

Product URL: https://www.pbtech.com/pacific/product/IPCAVH011015/Advantech-AMAX-5051T-A-8-ch-Digital-Input-2-ch-Tim
Features
8-ch Digital Input (2-ch Timestamp & 6-ch without Timestamp) EtherCAT Slice IO Module
- Precise and Deterministic Digital Input
- 2-ch Timestamp Digital Input
- 6-ch Regular Digital Input
- Timestamp resolution: 1ns
- Rising Edge & Falling Edge DI Latch
Specifications
Digital Input
Channels
8
Input Voltage
Wet Contact
Logic level 1: 11~30 VDC
Logic level 0: -3~5 VDC
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, DI status
Power Consumption
2 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
80 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
