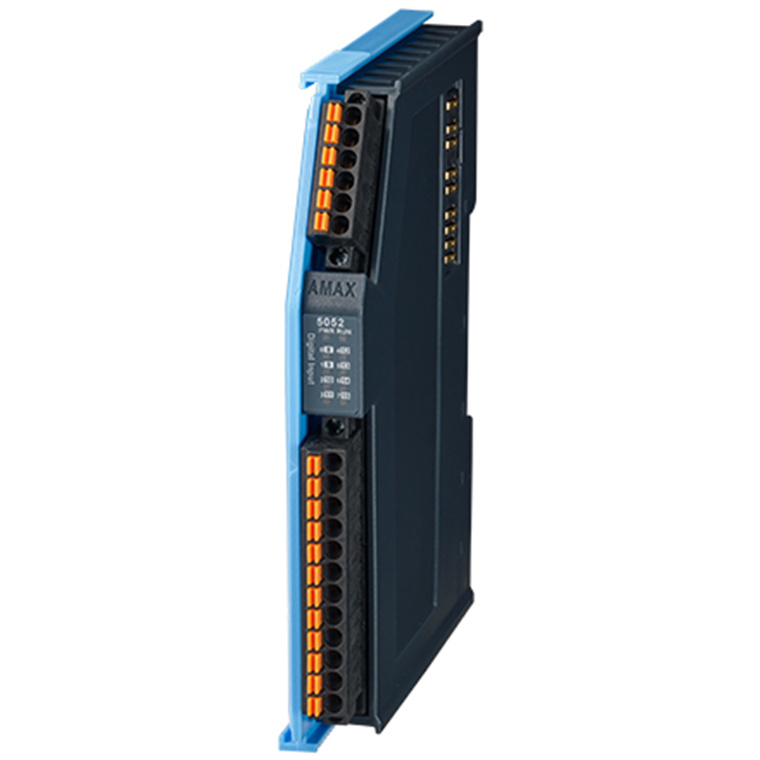

Advantech AMAX-5052-B 16-ch Digital Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5052-B
- Part #: IPCAVH011016

Product URL: https://www.pbtech.com/pacific/product/IPCAVH011016/Advantech-AMAX-5052-B-16-ch-Digital-Input-EtherCAT
Features
16-ch Digital Input EtherCAT Slice IO Module
- Channels:16
- Digital Input;Dry Contact;Logic level 1: close to Iso.GND;Logic level 0: open;Wet Contact;Rated voltage: 24VDC;Logic level 1: 10~30 VDC;and -10~-30 VDC;Logic level 0: -3~3 VDC
- Input Delay:From logic level 0 to 1: 4ms;From logic level 1 to 0: 4ms
- Digital Filter: 3ms
Specifications
Digital Input
Channels
16
Digital Filter
3 ms
Input Delay
From logic level 0 to 1:
4 ms
From logic level 1 to 0:
4 ms
Input Voltage
Dry Contact
Logic level 1: close to Iso.GND
Logic level 0: open
Wet Contact
Rated voltage: 24 VDC
Logic level 1: 10~30 VDC and -10~-30 VDC
Logic level 0: -3~3 VDC
General
Connectors
1 x 6-pin plug-in screw terminal, 1 x 12-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, DI status
Power Consumption
2 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
80 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
