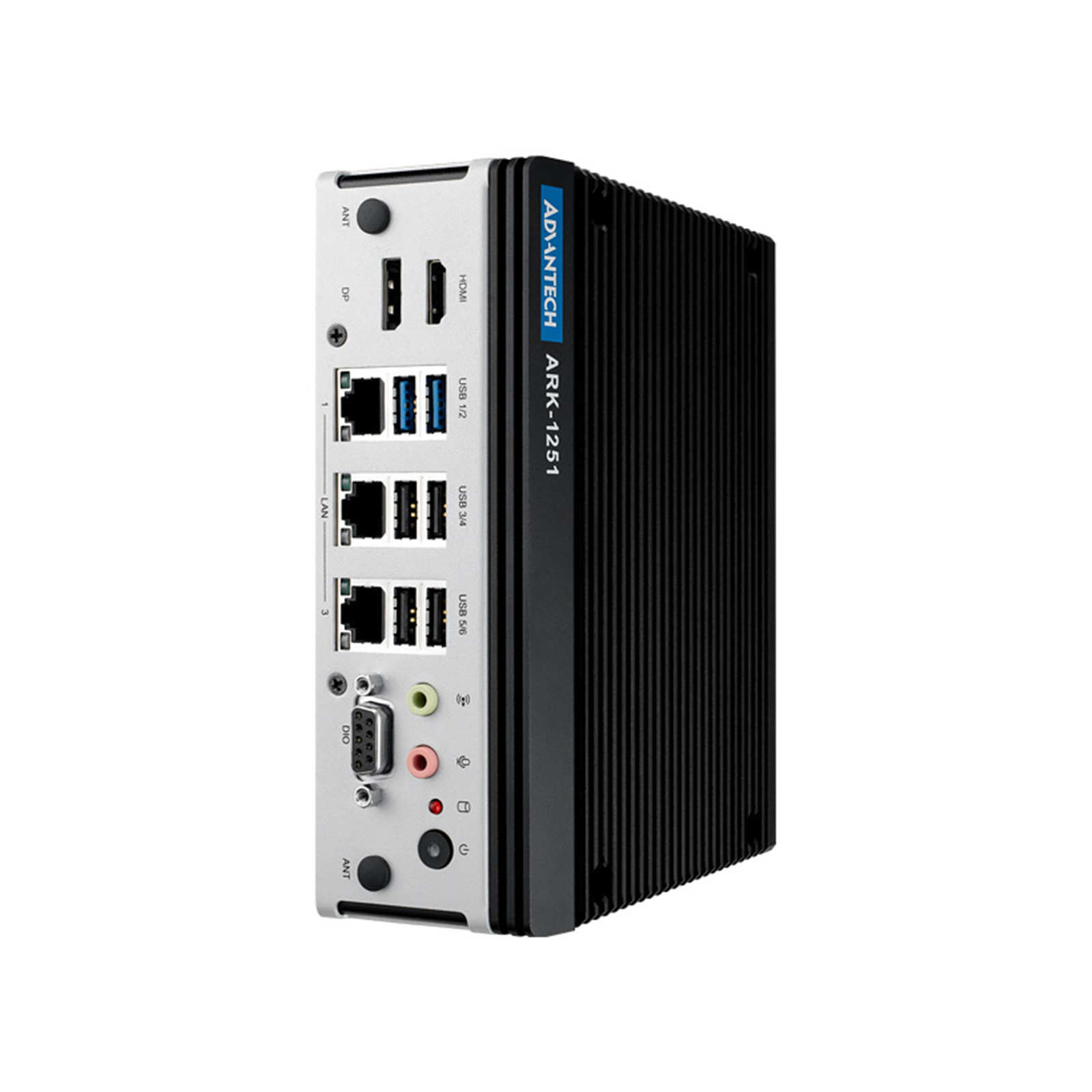

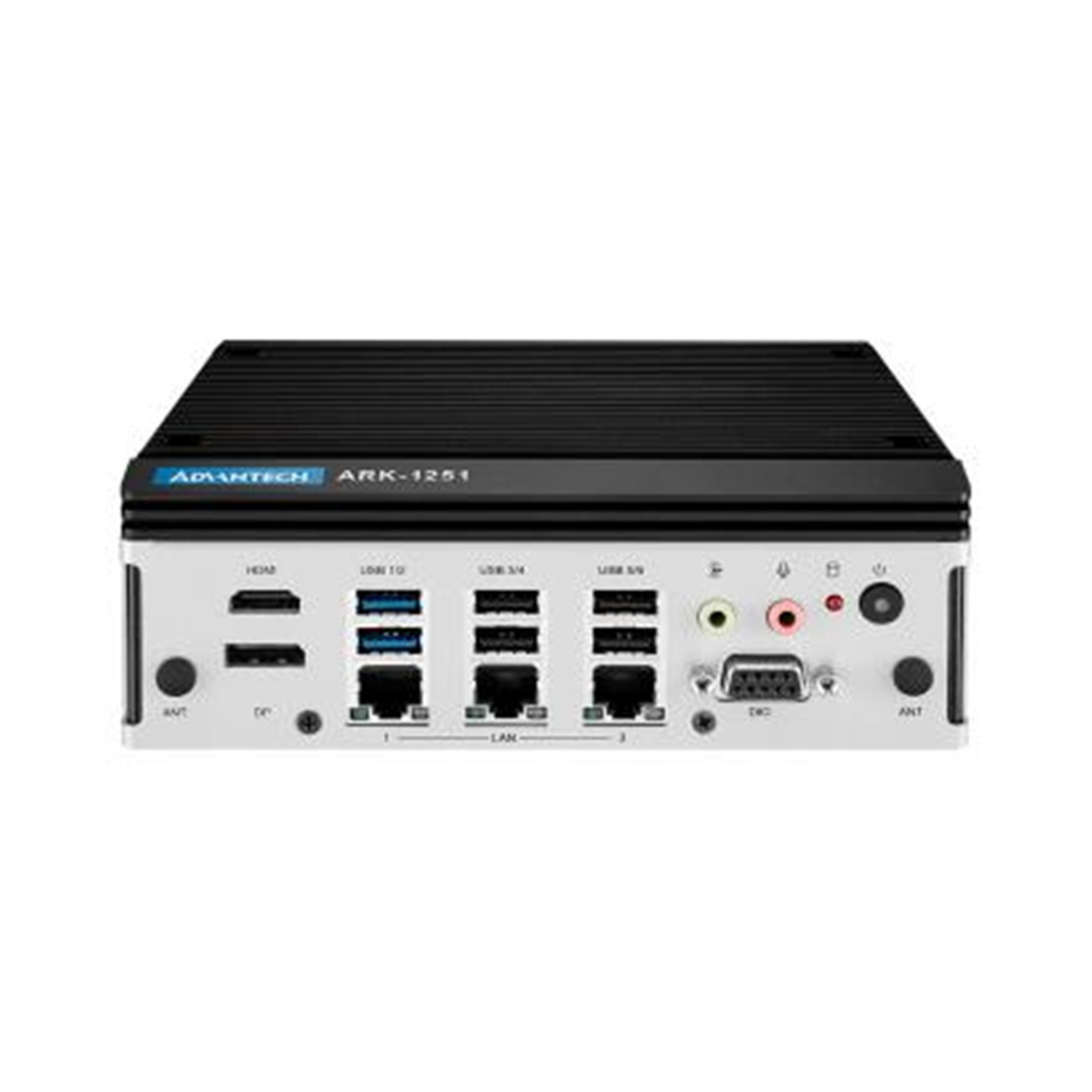

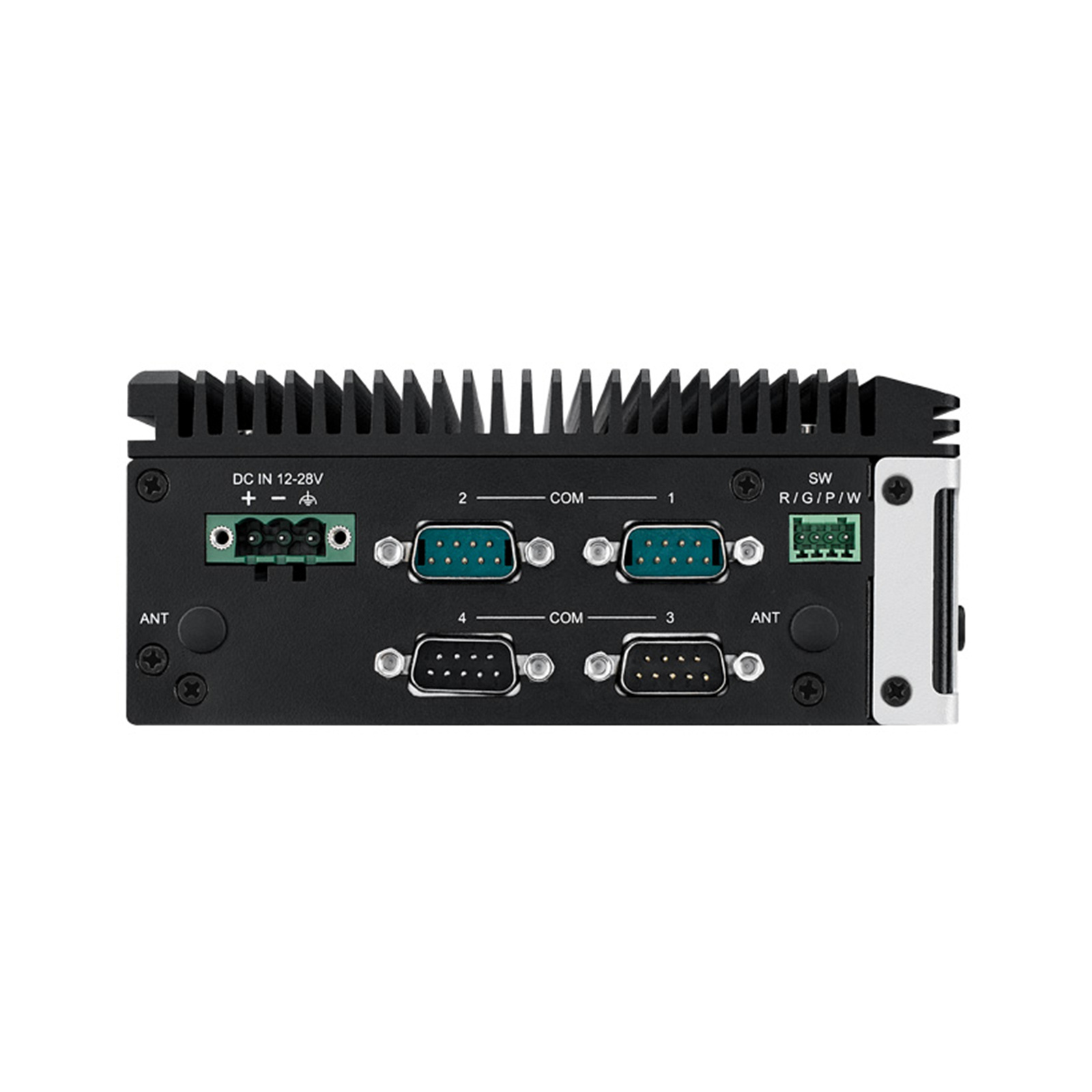

Advantech Ultra Slim Fanless ARK-1251-S3A1 Intel Core Ultra 5 125U, 8G, 512GB with HDMI+DP+3*GbE+4*COM, Remote Switch, USB x 6

PB Tech price
PB Tech price
NZD $ 2,616 .00
$ 2,616 .00
$2,616.00  +GST
$2,616.00

Advantech Ultra Slim Fanless ARK-1251-S3A1 Intel Core Ultra 5 125U, 8G, 512GB with HDMI+DP+3*GbE+4*COM, Remote Switch, USB x 6

  • Brand: Advantech
  • MPN: ARK-1251-S3A1/8G/512GB
  • Part #: IPCAVH020008A
  • UPC:
NEW ARRIVAL
PB Tech price
NZD $ 2,616 .00 $ 2,616 .00


Delivery: Order now and it ships on 26 Nov
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$2,616.00  +GST
$2,616.00

Features

  • Intel® Core Ultra 5
  • 8G DDR5-5600 SO-DIMM memory support up 96G
  • 512GB M.2 E Key, B Key and M Key for storage and wireless module installation
  • Up to 3 x Intel GbE, 4 x serial ports, 8-bit DIO, optional CANBus
  • Dual displays with 1 x 8K HDMI + 1 x 4K DP
  • 2 x USB 3.2 and 4 x USB 2.0
  • 12V ~ 28V wide range power input
  • -20 ~ 60 °C extended operating temperature

Specifications

Processor

CPU

Intel® Core™ Ultra 5 125U

Core Number

12

Frequency

1.7GHz

BIOS

AMI EFI 256 Mbit

Memory

Technology

DDR5 5600 MHz

Max. Capacity

96 GB (up to 48GB per DIMM)

Socket

2 x 260-pin SO-DIMM

ECC Support

No

Graphics

HDMI

1 x HDMI 2.1: Up to 7680x4320@60Hz

DP

1 x DP 1.4a: Up to 7680x4320@60Hz

Dual Display

HDMI + DP

Audio

Main System

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

Ethernet

Controller

3

LAN1

10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN

LAN2

10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN

LAN3

10/100/1000 Mbps Intel i210 GbE, support Wake On LAN

I/O Interface

Serial

4

Serial Port

2 x RS-232/422/485, 2 x RS-422/485, with auto flow control

USB Interface

2 x USB 3.2, 2 x USB 2.0

GPIO

8-bit

Optional I/O

1 x CANBus 2.0 (DB9 connector)

Expansion

M.2

1x M.2 2230 E key (NVMe, PCIe x2), 1x M.2 2280 B key with nano SIM holder (NVMe/SATA, PCIe x2), 1x M.2 2280 M key (NVMe, PCIe x4)

Storage

SATA and PCIe/NVMe

1x M.2 2280 M key (NVMe, PCIe x4) (default), 1x M.2 2280 B key with nano SIM holder (NVMe, PCIe x2/ SATA)

Others

Watchdog timer

255 levels timer interval, setup by software

TPM

TPM 2.0

Software Support

Microsoft Windows

Windows 10/11 IoT Enterprise LTSC

Linux

Ubuntu 24.04

Operating System

Ubuntu

V

Power

Power Type

AT/ATX

Input Voltage

12 ~ 28 VDC

Power Consumption

Typical

18.19W

Max.

61.74W

Environment

Vibration During Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD/mSATA: 30G

Temperature (Operating)

-20 ~ 60° C (-4 ~ 140° F)

Storage Temperature

- 40 ~ 85° C (-40 ~185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Mechanical

Construction

Aluminum housing

Mounting

DIN-rail/Wall Mount

Dimensions

60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in)

Weight

1.5 kg (3.3lb)

Certification

EMC

CE/FCC Class B, CCC, BSMI, UKCA

Safety Certifications

UL, CB, CCC

Manufacturer Part No:
ARK-1251-S3A1/8G/512GB
Brand:
Product Type:
-
UPC
-
Product Family:
Ultra Slim Fanless
Shipping Weight:
1.5 kg
PB Part No:
IPCAVH020008A
Product Model:
ARK-1251-S3A1
Warranty: 12 months *
