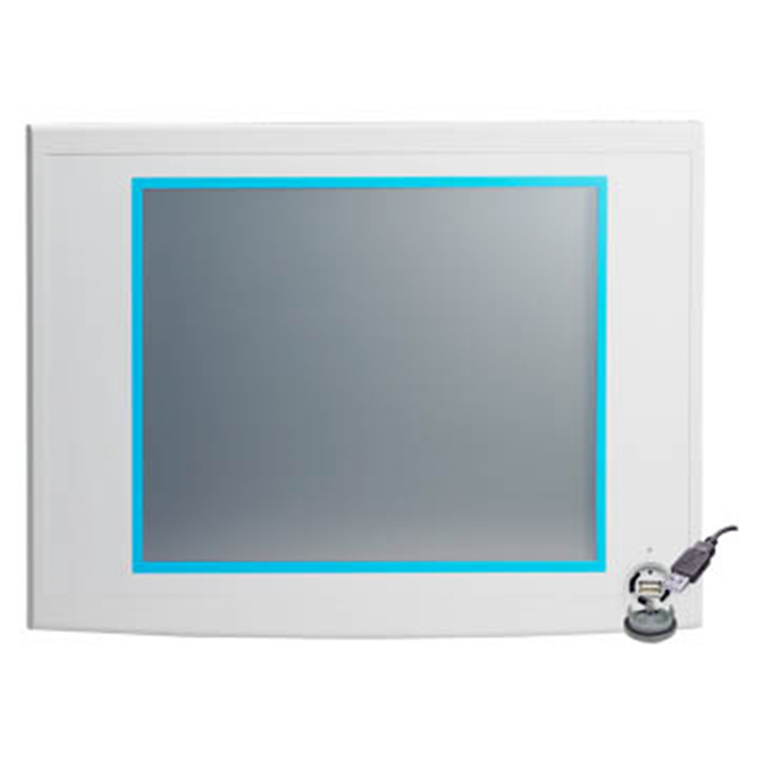

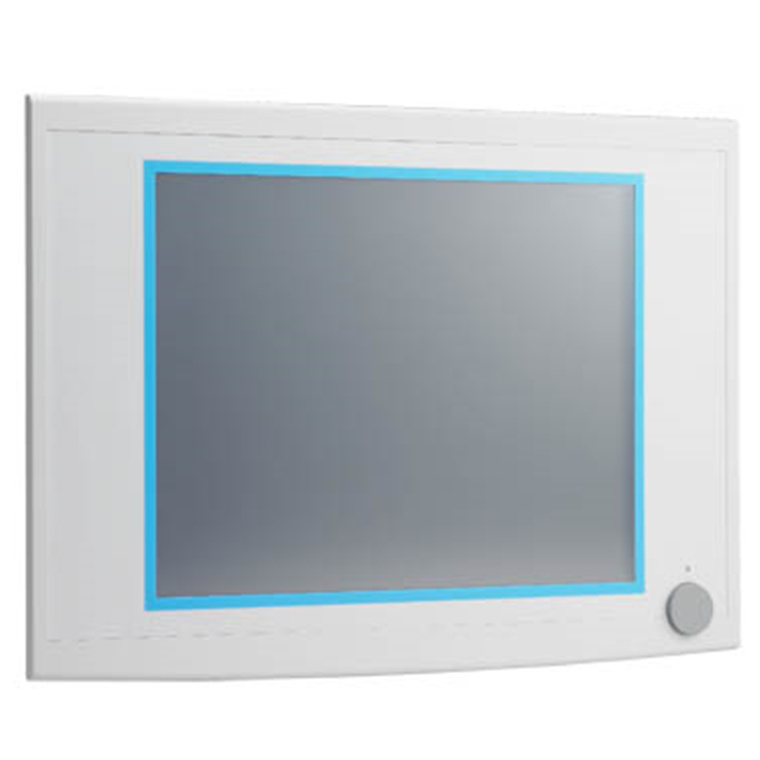

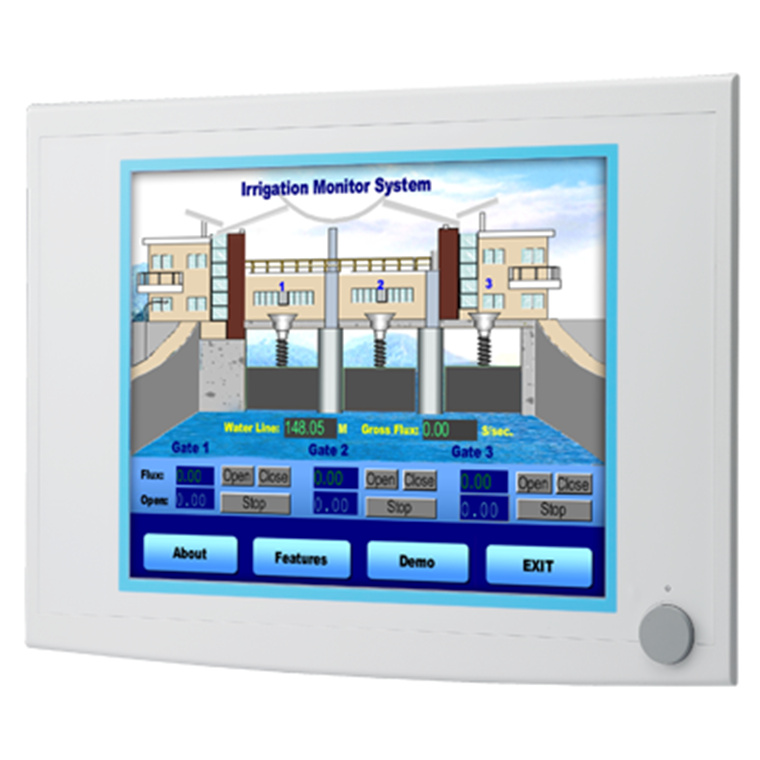

Advantech FPM-5171G-R3BE 17" SXGA Ind.LED Monitor w/ Resistive TS (Combo)

PB Tech price

NZD $ 1,868 .34

$ 1,868 .34

Advantech FPM-5171G-R3BE 17" SXGA Ind.LED Monitor w/ Resistive TS (Combo)

Brand: Advantech
MPN: FPM-5171G-R3BE
Part #: IPCAVH060007
UPC:

PB Tech price

NZD $ 1,868 .34

In stock at Supplier

Delivery: Order now and it ships on 24 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: FPM-5171G-R3BE
Part #: IPCAVH060007
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

17" SXGA Industrial Monitors with Resistive Touchscreens, Direct-VGA, and DVI Ports

- 17" SXGA with 50,000 backlight lifetime
- Direct VGA and DVI-D input interfaces
- Lockable OSD keys with 2 user-defined contrast/brightness controls
- Flat, sealed, IP65-rated front panel
- Robust design with anti-rust chassis and aluminum die cast front panel
- Front-accessible USB connector
- Combo RS-232 & USB interface for touchscreen functionality (switchable)
- Supports 10 ~ 30 VDC power input with Phoenix jack

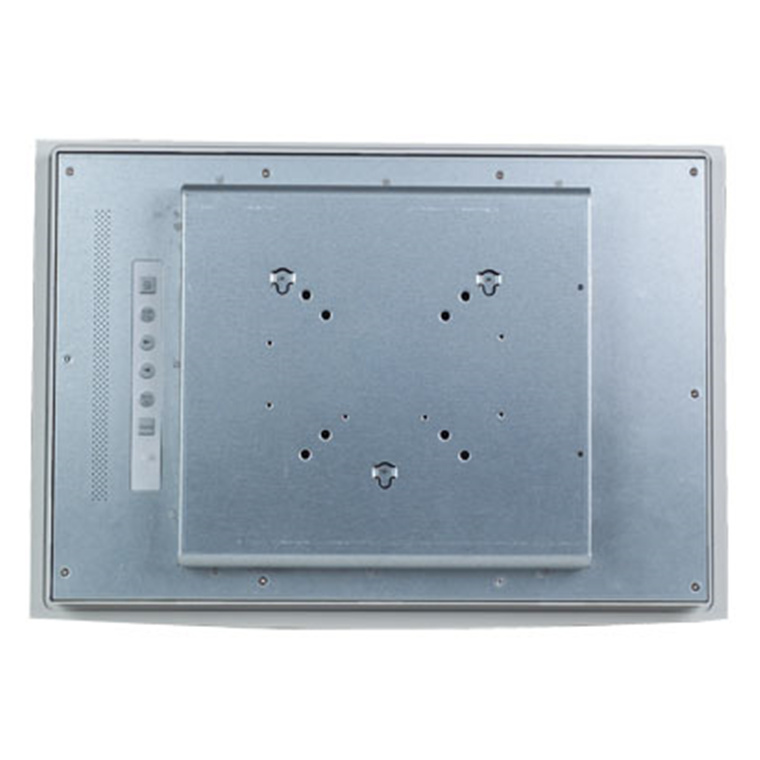

- Supports panel, wall, desktop, rack or VESA arm mounting

For more information: https://advdownload.advantech.com/productfile/PIS/FPM-5171G/file/FPM-51x1G_DS(122622)20230106151003.pdf

Specifications

General

OSD Controls

Lockable OSD control buttons on rear panel

Certification

BSMI, CCC, CE, FCC Class A, UL

Dimensions (W x H x D)

5171G: 481.93 x 355.87 x 55 mm (18.97 x 14.01 x 2.17 in)

Enclosure

Front panel: Aluminum and flat-sealed
Rear cover: Anti-rust coating

Mount Options

Panel, wall, desktop, VESA arm, or 19" rackmount

Power Input

Phoenix Jack: 10 ~ 30 VDC input
Optional external 57 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 4.7A output

Power Consumption

31 W + 20%

USB

Front-facing USB for easy access

Video Port

VGA & DVI-D

Weight (Net)

7 kg (17.63 lb)

LCD Display

Display Type

SXGA

Display Size

17"

Max. Resolution

1280 x 1024

Max. Color

16.7M

Viewing Angle (H/V °)

160/140

Luminance (cd/m² )

350

Backlight Life

50,000 hr

Contrast Ratio

800:1

Touchscreen

Sensor

AMT

Drive

Penmount 6000

Type

5-wire resistive

Interface

RS-232 & USB

Lifespan

10 million with R8 silicone rubber finger, 2 x 250g presses per second

Light Transmission

> 80%

OS Support

Windows XP, Vista,7, 8,10,XPe and Linux

Power Consumption

+5 V @ 100 mA

Touch Resolution

Linearity

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Humidity (Storage)

10 ~ 90% non-condensing

IP Rating

Front panel is compliant with IP65

Vibration

5 ~ 500 Hz, 1 Grms (Operating, Random)

Manufacturer Part No:

FPM-5171G-R3BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH060007

Product Model:

FPM-5171G-R3BE

Warranty: 12 months *
