Advantech MIC-710AI AI INFERENCE SYSTEM NVIDIA NAN

PB Tech price

NZD $ 3,976 .98

$ 3,976 .98

Advantech MIC-710AI AI INFERENCE SYSTEM NVIDIA NAN

Brand: Advantech
MPN: MIC-720AI-00A1
Part #: IPCAVH080003
UPC:

PB Tech price

NZD $ 3,976 .98

In stock at Supplier

Delivery: Order now and it ships on 24 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: MIC-720AI-00A1
Part #: IPCAVH080003
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

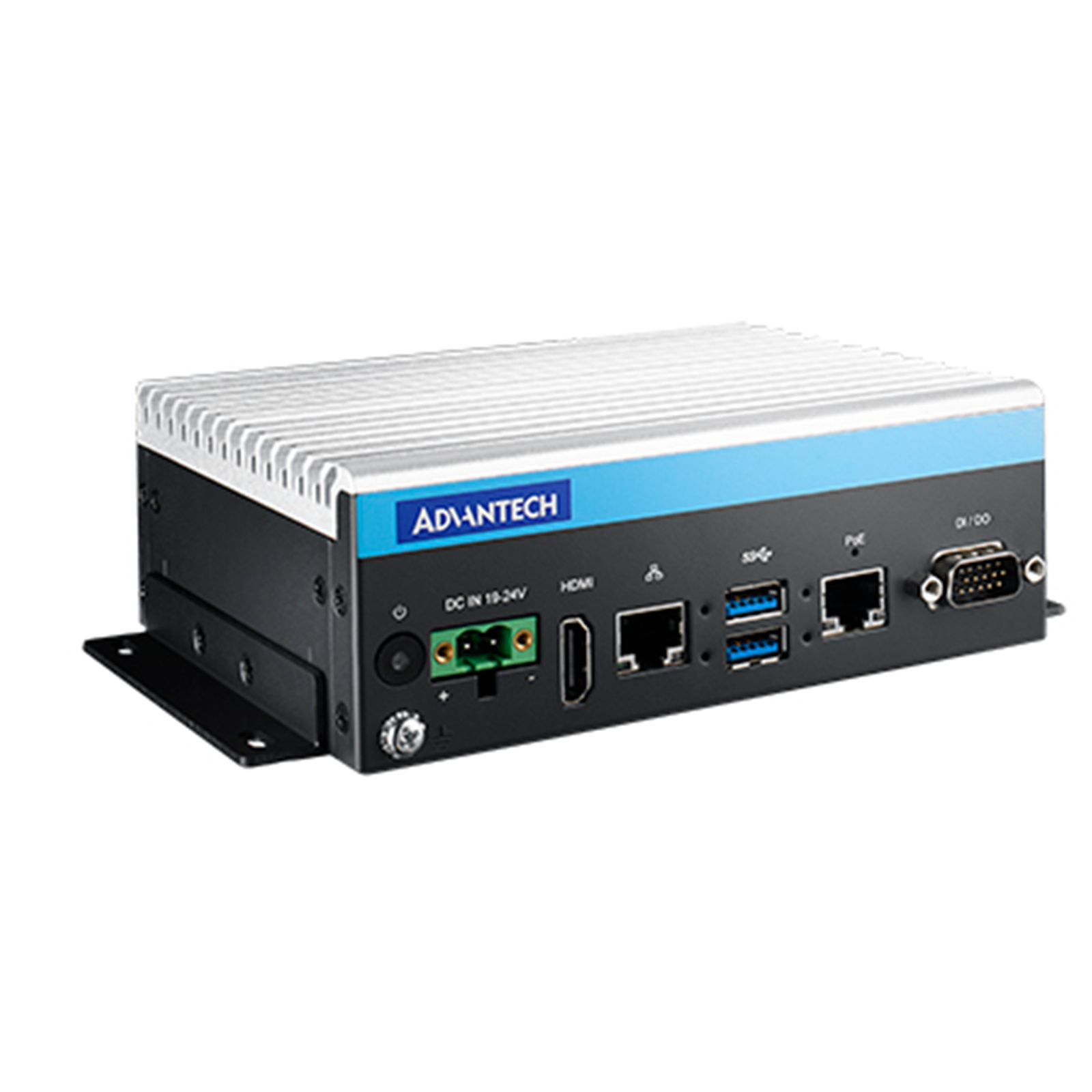

MIC-720AI is the ARM based system which integrated NVIDIA® Jetson™ Tegra X2 System-on-Module processor, providing 256 CUDA® cores on the NVIDIA® Pascal™architecture. It is designed for the edge applications support rich I/O with low power consumption. The system has 4GB LPDDR4 memory, 4K video decode/encode, 2 USB3.0,POE and mSATA expansion. With wall mount brackets and fanless design which can help you easily install in rugged environment. This small embedded system is an ideal system for AI inference edge and deep learning applications.

- Fanless and compact design
- Supports NVIDIA Jetson® Tegra X2
- 2 USB 3.0 ports and 1 internal USB 2.0
- 1 IEEE 802.3af POE port
- Linux OS with BSP (board support package)
- Supports deep learning trained models
- Wide operating temperature
- Support wireless without RED Certification

Specifications

CPU

NVIDIA TX2 Dual Core nVidia Denver2.0 + Quad Core ARM Cortex A57

Memory

8GB LPDDR4

Flash

32G of eMMC

Ethernet

Interface

RJ-45

Controller

Intel® i210IT

Speed

10/100/1000 Mbps 1G

I/O

Digital I/O

8 bit

USB

2 x USB 3.0 & 1x USB 2.0(internal)

Button

1 x Power on/off switch

Expansion

Storage

1 x mSATA slot

Power

Supply Voltage

19-24V DC-in

Power Type

DC-Jack

Power Consumption

Typical: 6.3W (Max-Q Mode)&Maximum: 48.3W (Max-N Mode)

Environment

Operating Temperature

-20 ~ 60 °C with 0.7 m/s air flow (Max-Q mode)

Operating Humidity

95% @ 40 °C, non-condensing

Vibration

With SSD: 2 Grms @ 5 ~ 500 Hz, random, 1 hr/axis, With 2.5" HDD: 0.5 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Mechanical

Dimension

147 x 118 x 52 mm (5.7" x 4.6" x 2.4")

Weight

1.2 kg

Install

Desktop/Wall-mounting

Linux

Ubuntu 16.04

Manufacturer Part No:

MIC-720AI-00A1

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH080003

Product Model:

MIC-710AI

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
