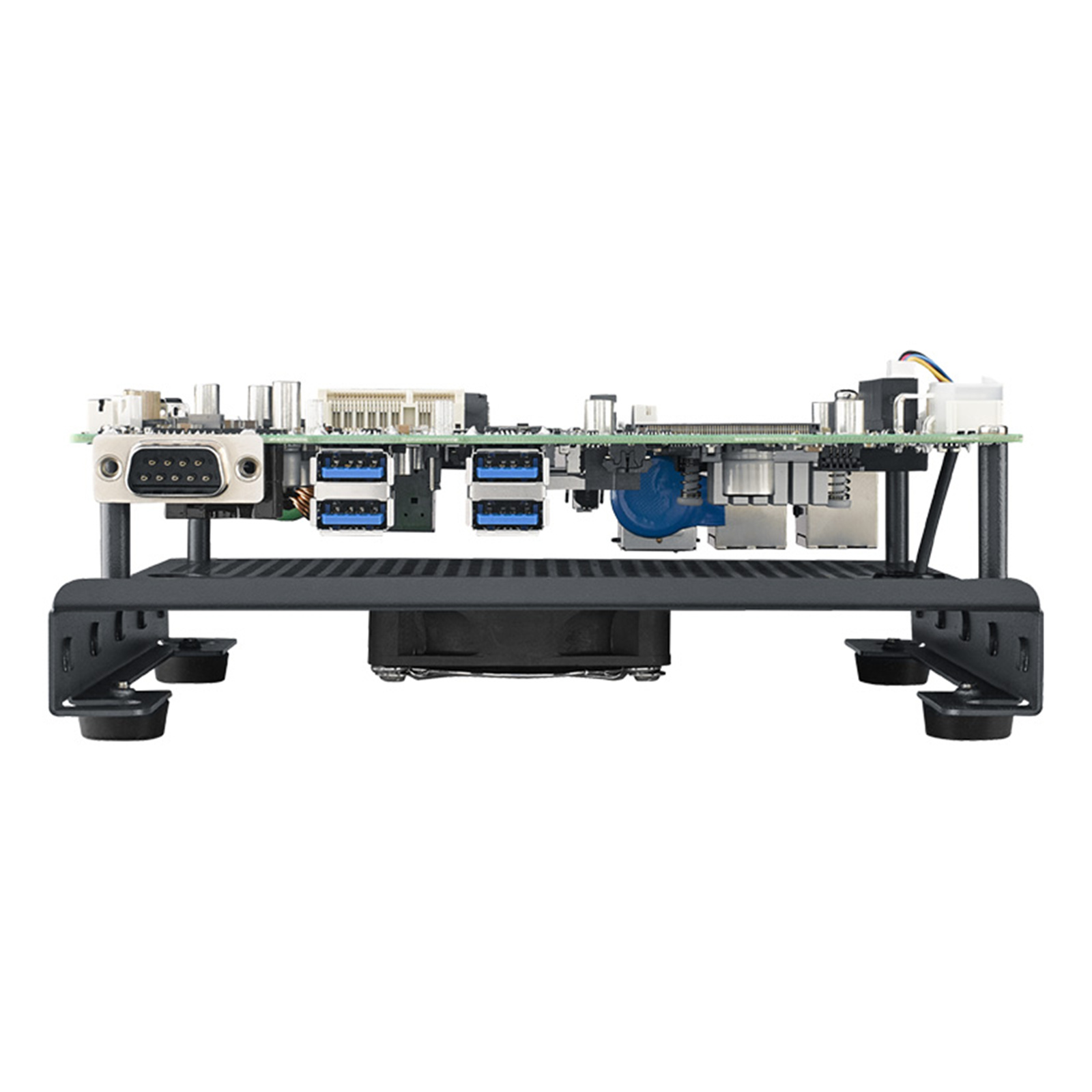

Advantech MIC-713S-ON2A1 Orin Nano 4GB Solution Kit w/128GB SSD

PB Tech price
PB Tech price
NZD $ 1,629 .62
$ 1,629 .62
$1,629.62  +GST
$1,629.62

Advantech MIC-713S-ON2A1 Orin Nano 4GB Solution Kit w/128GB SSD

  • Brand: Advantech
  • MPN: MIC-713S-ON2A1
  • Part #: IPCAVH080028
  • UPC:
PB Tech price
NZD $ 1,629 .62 $ 1,629 .62


Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,629.62  +GST
$1,629.62

Features

AI Solution Kit Based on NVIDIA® Jetson Orin™ Nano

- Open-frame solution kit design
- Embedded with NVIDIA® Jetson Orin™ Nano up to 40 TOPS
- Supports 5 x GbE, 6 x USB 3.2 Gen 2
- Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment

Specifications

Processor System

CPU

4GB: 6-core NVIDIA Arm Cortex A78AE v8.2 64-bit CPU

GPU

4GB: 512 core NVIDIA Ampere GPU with 16 Tensor Cores

Memory

4GB: 4GB LPDDR5

Flash

-

I/O

Ethernet

5 x 10/100/1000 Mbps

Display

HDMI (Max. resolution 3840x2160 @ 60Hz)

USB

External: 6 x USB 3.2 Gen 2

Digital I/O

4-ch DI, 4-ch DO

Serial Port

2 x RS-232/422/485 (On-board pin header)

CANBus

1

OTG USB

1 x Micro USB

Expansion

PCIe

1 x PCIe x4 slot (PCIe x4 link, Gen 4)

Mini PCIe

1 x mPCIe (Signal: PCIe + USB 2.0)

M.2

1 x M.2 3052 (Signal: USB)

SIM

2 x Nano SIM slots

TPM ( Optional)

1 x TPM 2.0

GMSL (Optional)

2-ch GMSL2.0 with FAKRA connectors

Storage

M.2

1 x M.2 2280 (Signal: PCIe x1, Gen 4)

SD Card

1 x Micro SD

Fan

Dimension

60 x 60 x 13 mm (2.36" x 2.36" x 0.51")

RPM

5400 RPM

Power

Mode

AT

Input Voltage

9 ~ 36 VDC

Environment

Operating Temperature

-10 ~ 60 °C with 0.7 m/s air flow

Operating Humidity

95% @ 40 °C (non-condensing)

Vibration

3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Shock

10G / 11ms

Mechanical

Dimensions (W x D x H)

181.4 x 180 x 81.71 mm (7.14" x 7.09" x 3.22")

Weight

0.75 kg (1.65 lb)

Installation

Desktop

BSP

Jetpack

Above 5.1

Certifications

Certifications

CE/FCC (No RED certification)

Manufacturer Part No:
MIC-713S-ON2A1
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH080028
Product Model:
MIC-713S-ON2A1
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
