Advantech MIC-715-OX4A1 NVIDIA Jetson Orin NX 16GB Ruggedized AI w/128GB SSD
- Brand: Advantech
- MPN: MIC-715-OX4A1
- Part #: IPCAVH080032

Product URL: https://www.pbtech.com/pacific/product/IPCAVH080032/Advantech-MIC-715-OX4A1-NVIDIA-Jetson-Orin-NX-16GB
Features

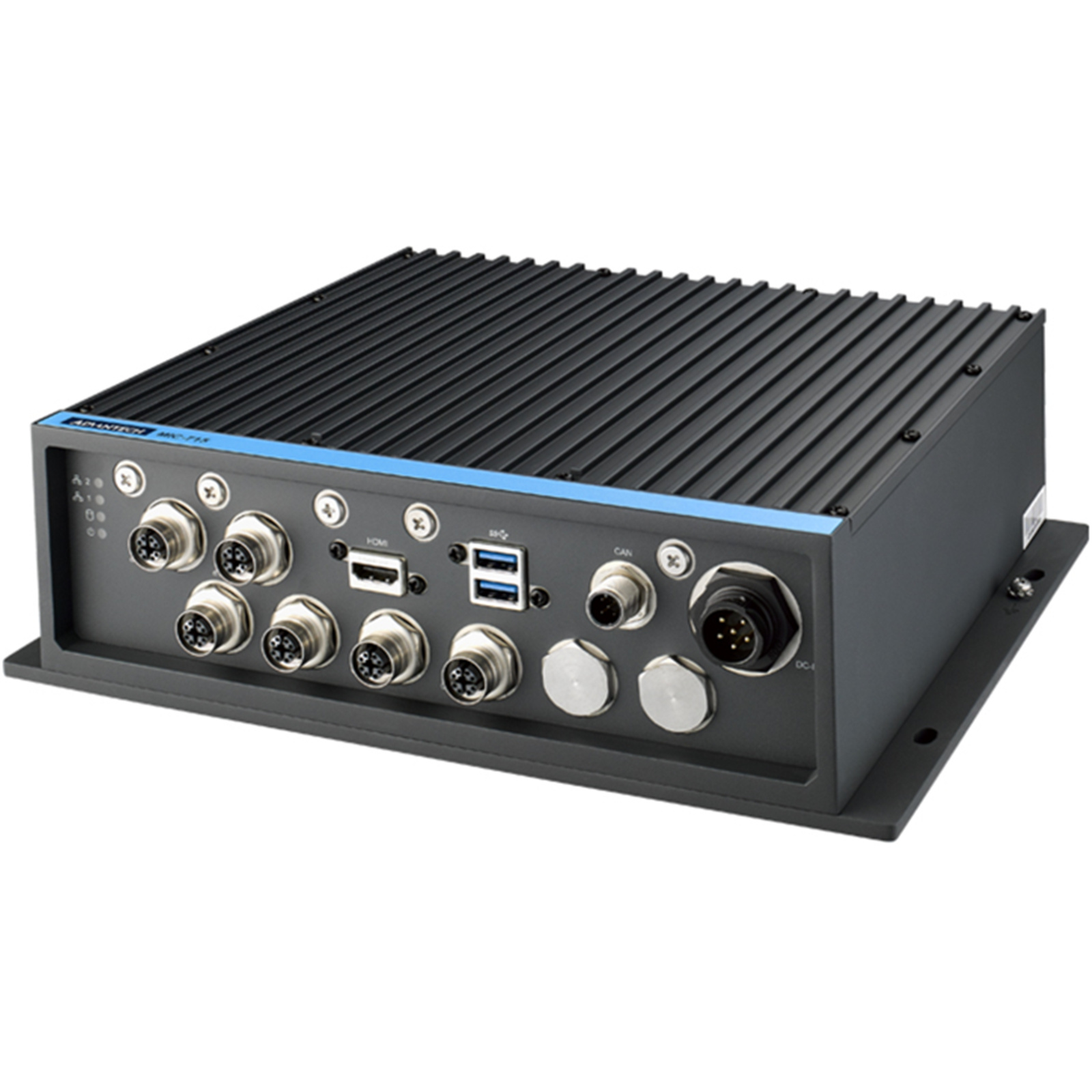

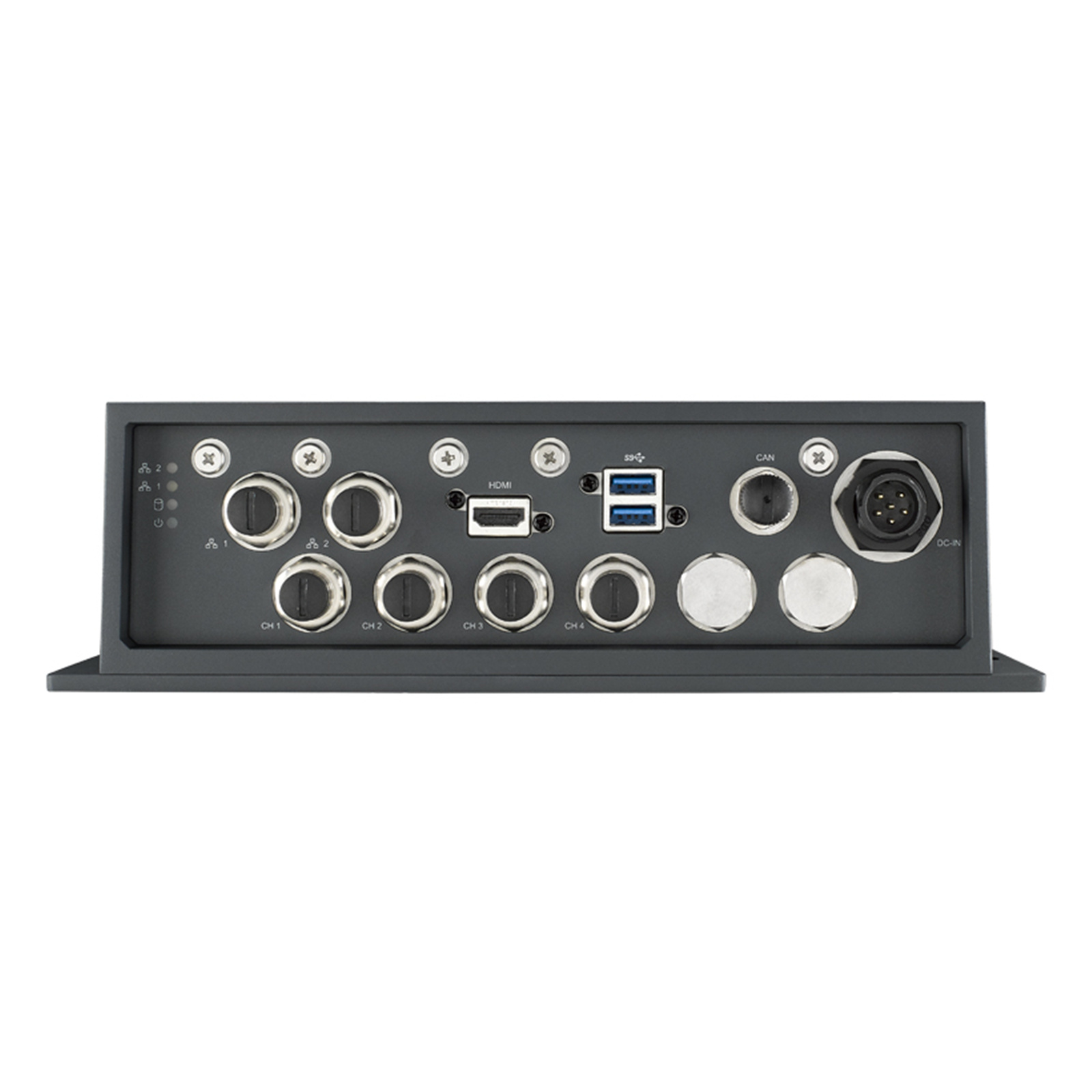

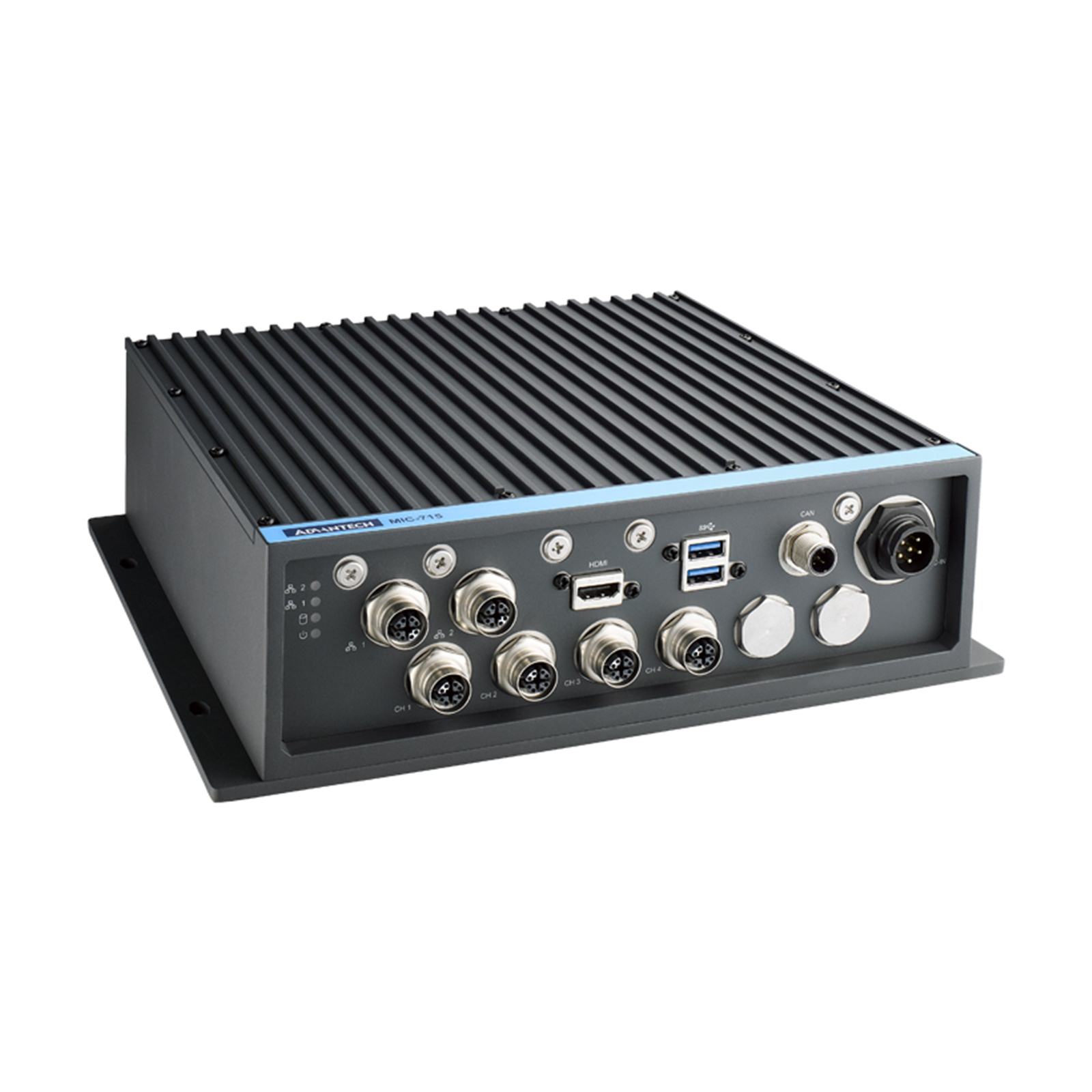

Ruggedized In-Vehicle AI Fanless System Based on NVIDIA® Jetson Orin™ NX
- Ruggedized IP67 waterproof fanless design
- Embedded with NVIDIA® Jetson Orin™ NX up to 100 TOPS
- 2 x GbE and 4 x PoE with IEEE 802.3af compliance
- 2 x USB 3.0, 1 x CANbus, 1 x HDMI
- Supports 2 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
Specifications
Processor System
CPU
16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
GPU
1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory
16GB LPDDR5
Flash
-
I/O
Ethernet
6 x 10/100/1000 Mbps (4 x PoE support, IEEE 802.3af) in M12 X-coded, 8-pin female connector
Display
HDMI (Max. resolution 3840 x 2160 @ 60Hz)
USB
External: 2 x USB 3.0
CAN Bus
2 x CAN bus
OTG USB
1 x Micro USB
Expansion
Mini PCIe
2 x mPCIe (signal: PCIe + USB)
SIM
2 x Nano SIM slot (M.2 3052 & Mini PCIe2 slot)
M.2
1 x M.2 3052 (B-Key, signal: PCIe + USB)
Storage
M.2
1 x M.2 2280 M-Key (NVMe, PCIe x1)
Power
Mode
M16, 6-pin male
Input power
12/24VDC (12-6A) with ignition *Note1
Environment
Operating Temperature
-20 ~ 60 °C with 0.7 m/s airflow (Max-N ARM mode)
Operating Humidity
95% @ 40 °C (non-condensing)
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
10G/11ms
Mechanical
Dimensions (W x D x H)
275 x 220 x 80 mm (10.8" x 8.7" x 3.2")
Weight
4.5 kg
Installation
Desktop
BSP
Jetpack
Above 5.1
Certifications
Certifications
CB/UL/CE/FCC/CCC (No RED certification)
