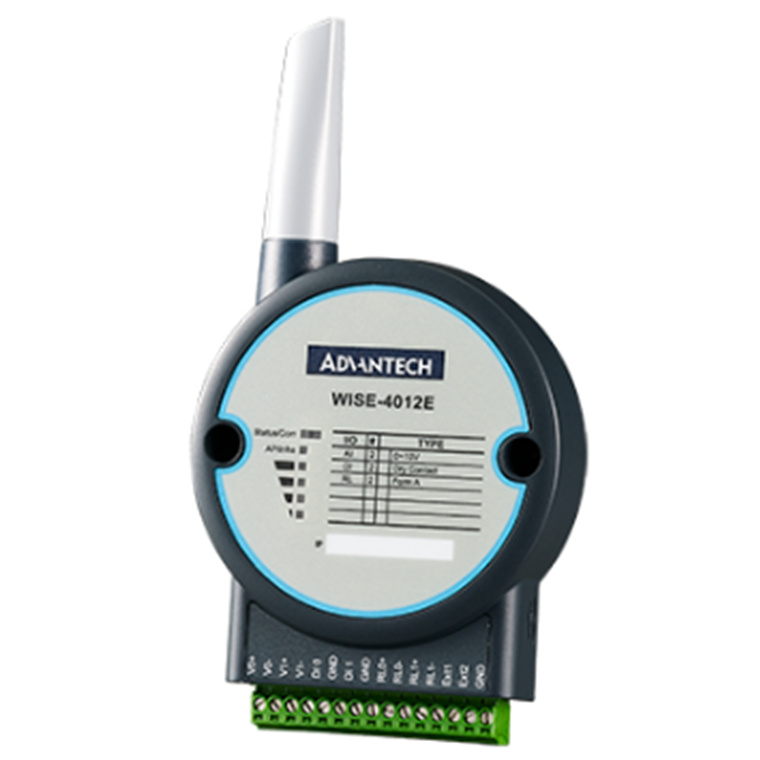

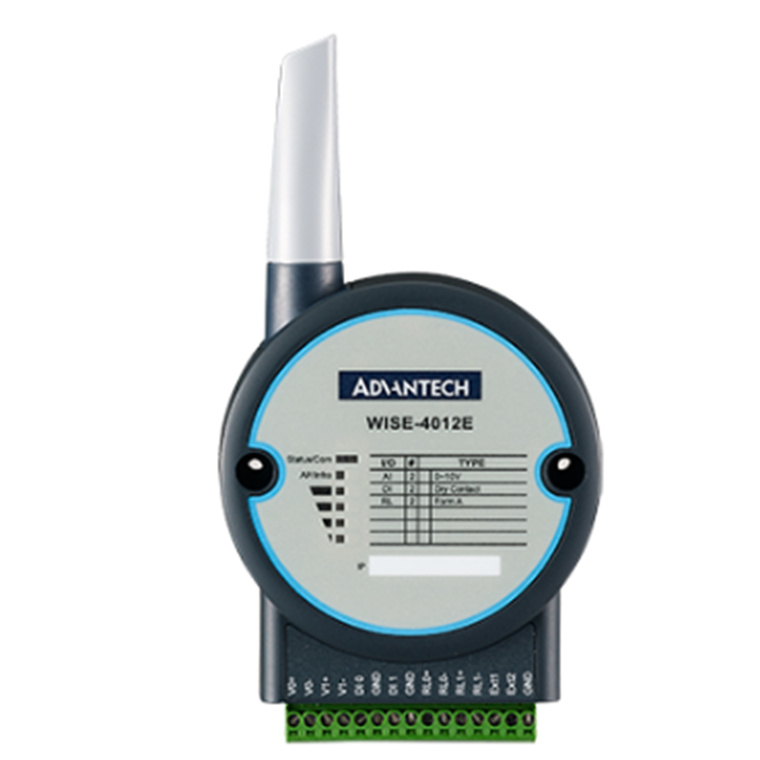

Advantech WISE-4012E-AE-WA 2.4G WiFi IoT Wireless I/O Developer Kit with WebAccess Demo Project

PB Tech price

NZD $ 271 .20

$ 271 .20

Advantech WISE-4012E-AE-WA 2.4G WiFi IoT Wireless I/O Developer Kit with WebAccess Demo Project

Brand: Advantech
MPN: WISE-4012E-AE-WA
Part #: IPCAVH140002
UPC:

PB Tech price

NZD $ 271 .20

In stock at Supplier

Delivery: Order now and it ships on 24 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: WISE-4012E-AE-WA
Part #: IPCAVH140002
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- WiFi 2.4GHz IEEE 802.11b/g/n WLAN
- Includes WebAccess demo project for developer
- Includes extension board for simulating sensor status
- Supports Modbus/TCP with RESTful web service
- Supports file-based cloud storage and local logging with RTC time stamp

For more infomation: https://advdownload.advantech.com/productfile/PIS/WISE-4012E/file/WISE-4012E_DS(070621)20210706101618.pdf

Specifications

Analog Input

Channels

Input Range

0~10 V

Resolution(Bits)

12-bit

Sampling Rates(S/s)

10 Hz (sum)

Digital Input

Channels

2 (TTL)

Input Voltage

Dry Contact
Logic level 0: open
Logic level 1: close to Iso.GND

General

Connectors

1 x Plug-in screw terminal, 1 x Micro USB

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT

Hardware

Certification

CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, ANATEL

LED Indicators

Status/Com, AP/Infra, Signal Strength

Power Consumption

1.5 W @ 5 VDC

Power Input

5 VDC

Watchdog Timer

1.6 s

Mechanical

Dimension (W x H x D)

80 x 139 x 25 mm

Enclosure

Weight (Net)

0.16 kg

Power Requirements

Input Voltage

5 VDC

Relay Output

Channels

2 Form A

Contact Rating (Resistive)

1 A @ 30 VDC

Relay Type

2 x Form A

Resistance

Min. 1 GO min.

Wireless Communication

Frequency Band

IEEE 802.11 b/g/n 2.4 (GHz)

Standard(Technology)

WIFI

Manufacturer Part No:

WISE-4012E-AE-WA

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH140002

Product Model:

WISE-4012E-AE-WA

Warranty: 12 months *
