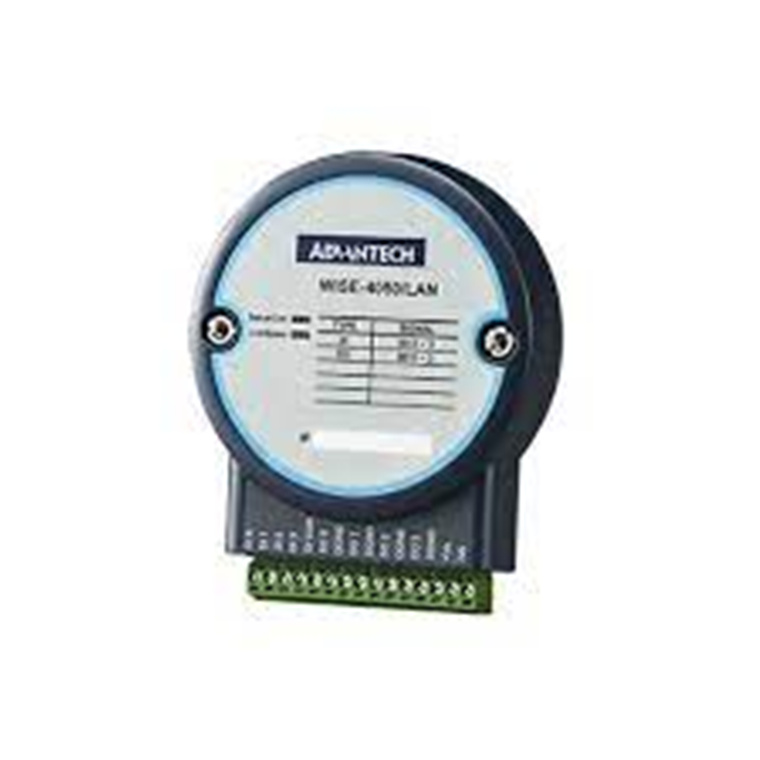

Advantech WISE-4050/LAN 4CH DI + 4CH DO IOT LAN

PB Tech price

NZD $ 334 .23

$ 334 .23

Advantech WISE-4050/LAN 4CH DI + 4CH DO IOT LAN

Brand: Advantech
MPN: WISE-4050/LAN-AE
Part #: IPCAVH140003
UPC:

PB Tech price

NZD $ 334 .23

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: WISE-4050/LAN-AE
Part #: IPCAVH140003
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Introducing Advantech's new generation of remote I/O & sensing devices for IoT applications. With the advanced concepts of wireless sensor notes technology, data A-P-P, data Acquisition, data Processing to data Publishing, WISE fulfils mobile monitoring and controlling needs under an IoT framework. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Wide input voltage and rugged physical tolerance provide flexible installation options

- IEEE 802.3u 10/100Base-T(X)
- Industrial grade operating temperature -40~70?C
- Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP
- Supports RESTful web API in JSON format
- Supports local logging with RTC time stamp
- Supports mobile device web configuration in HTML5
- Supports 10~30VDC power with reverse protection

Specifications

DIGITAL INPUT

Channels

Isolation

3,000 Vrms

Logic Level

Dry Contact 0: Open, 1: Close to DI COM;
Wet Contact 0: 0 ~ 3 VDC, 1: 10 ~ 30 VDC (3 mA min.)

DIGITAL OUTPUT

Channels

4 Open collector to 30 V, 500 mA max. for resistance load

Isolation

3,000 Vrms

ENVIRONMENT

Operating Humidity

20 ~ 95% RH (non-condensing)

Operating Temperature

-40 ~ 70?C (-40~158?F)

Storage Humidity

0 ~ 95% RH (non-condensing)

Storage Temperature

-40 ~ 85?C (-40~185?F)

GENERAL Certifications

CE, FCC, RoHS

Connectors Plug-in screw terminal block (I/O and power)

Data Log Up to 10000 samples with time stamp

Enclosure

LAN

IEEE 802.3u 10/100Base-T(X)

Mounting

DIN 35 rail, Wall, Stack

Power Consumption

2.2 W @ 24 VDC

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP

Watchdog Timer

System (1.6 second) & Communication (programmable)

Web API

RESTful in JSON format

Web Server

HTML5 with JavaScript & CSS3

PHYSICAL

Dimensions (mm)

80 (w) x 25 (d) x 89 (h)

Manufacturer Part No:

WISE-4050/LAN-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH140003

Product Model:

WISE-4050/LAN

Warranty: 12 months *
