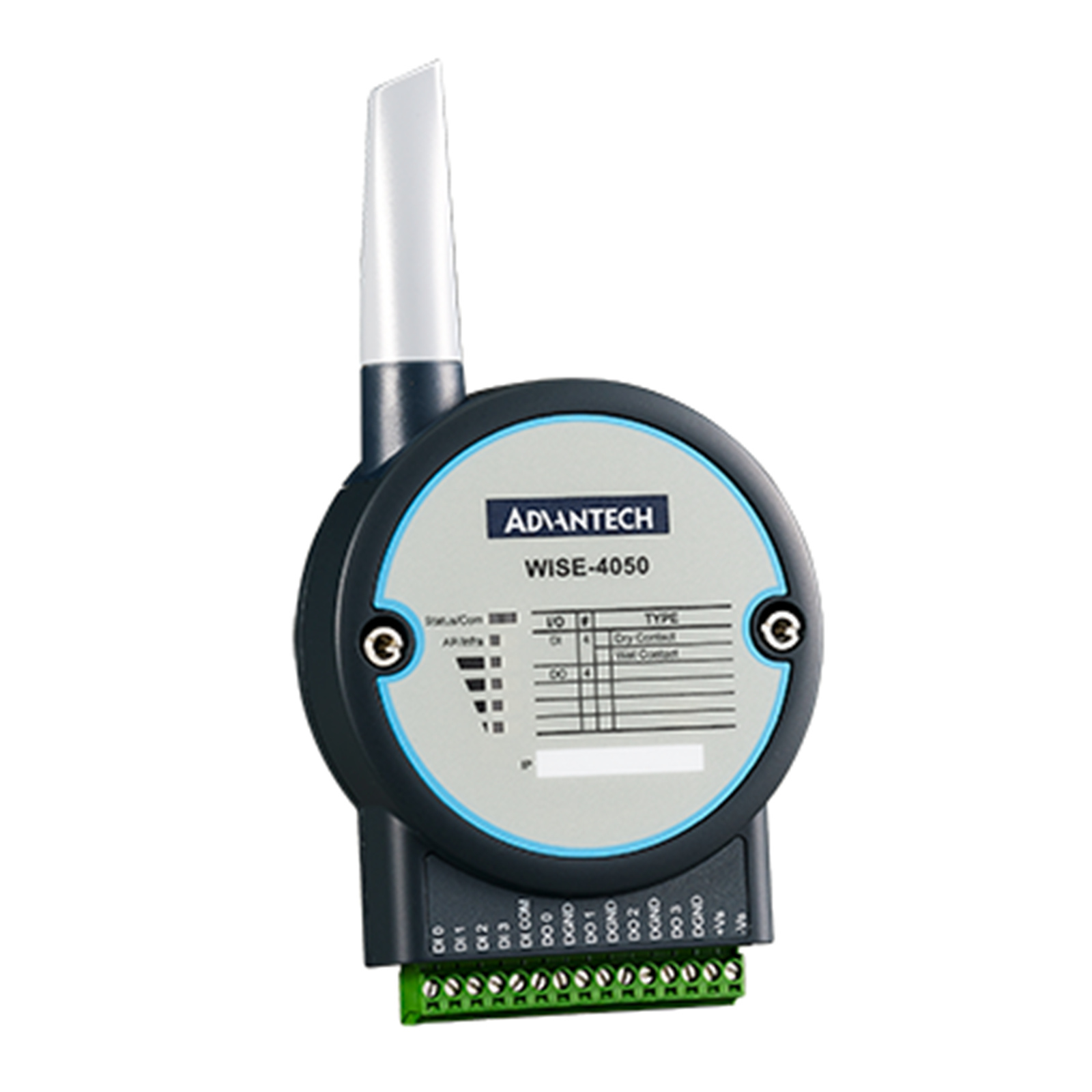

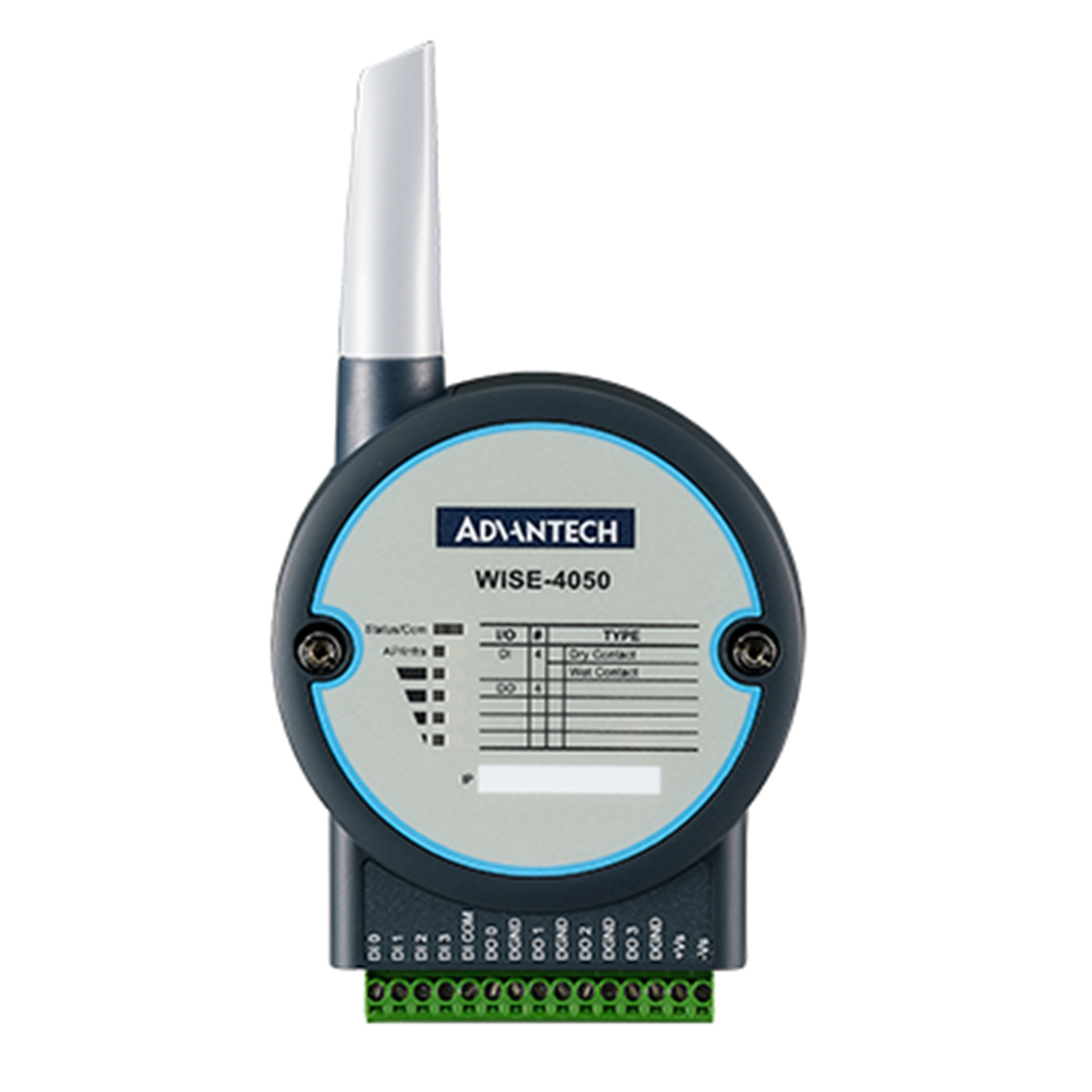

Advantech WISE-4050-AE 4CH DI + 4CH DO IOT WLAN

PB Tech price
PB Tech price
NZD $ 266 .86
$ 266 .86
$266.86  +GST
$266.86

Advantech WISE-4050-AE 4CH DI + 4CH DO IOT WLAN

  • Brand: Advantech
  • MPN: WISE-4050-AE
  • Part #: IPCAVH140004
  • UPC:
PB Tech price
NZD $ 266 .86 $ 266 .86


Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$266.86  +GST
$266.86

Features

- WiFi 2.4GHz IEEE 802.11b/g/n WLAN
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports file-based cloud storage and local logging with RTC time stamp
- Supports RESTful web API in JSON format for IoT integration
- Configured by mobile devices directly without installing software or App

Specifications

Digital Input

Channels

4 (TTL)

Input Voltage

Dry Contact
Logic level 0: Open
Logic level 1: Close to DI COM
Wet Contact
Logic level 0: 0~3 VDC
Logic level 1: 10~30 VDC

Isolation Protection

4,200 VDC

Digital Output

Channels

4 (TTL)

Isolation Protection

4,200 VDC

Environment

Operating Temperature

-25~70 °C (-13~158 °F)

Relative Humidity

20~95% RH (non-condensing)

Storage Humidity

0~95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

General

Connectors

1 x Plug-in screw terminal

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT

Hardware

Certification

CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, KC,
ANATEL

LED Indicators

Status, Com, AP/Station, Signal Strength

Power Consumption

2.2 W @ 24 VDC

Power Input

10~30 VDC

Watchdog Timer

1.6 s

Mechanical

Dimension (W x H x D)

80 x 148 x 25 mm

Enclosure

PC

Mounting

DIN-rail, Wall, Stack

Weight (Net)

0.15 kg

Power Requirements

Input Voltage

10~30 VDC

Wireless Communication

Frequency Band

IEEE 802.11 b/g/n 2.4 (GHz)

Standard(Technology)

WIFI

Manufacturer Part No:
WISE-4050-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH140004
Product Model:
WISE-4050-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
