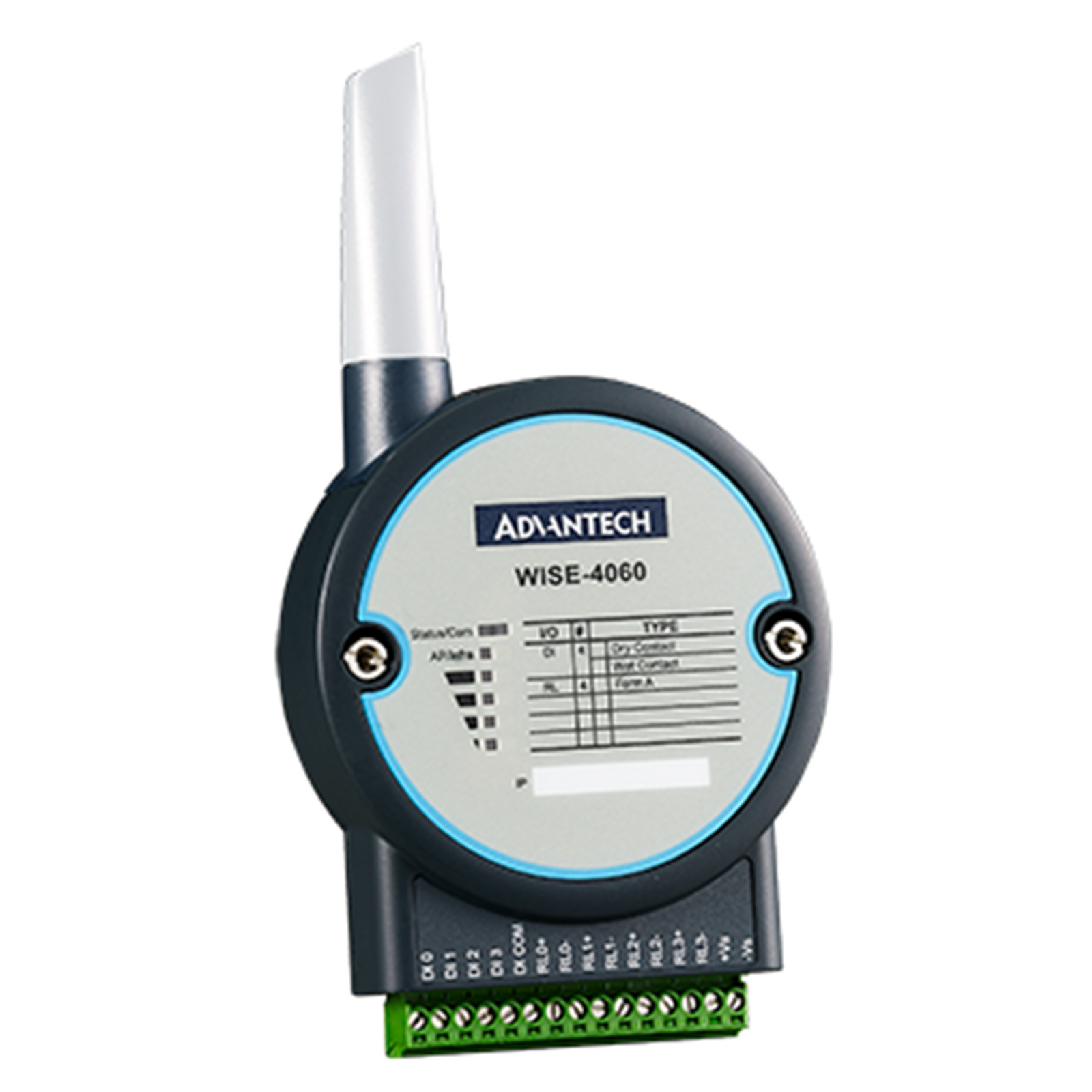

Advantech WISE-4060-AE 4-CH DI + 4-CH RLY IOT WLAN

PB Tech price

NZD $ 294 .06

$ 294 .06

Advantech WISE-4060-AE 4-CH DI + 4-CH RLY IOT WLAN

Brand: Advantech
MPN: WISE-4060-AE
Part #: IPCAVH140007
UPC:

PB Tech price

NZD $ 294 .06

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: WISE-4060-AE
Part #: IPCAVH140007
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech's new generation of remote I/O devices bring an IT oriented spirit to the market. With the advanced concepts of data A-P-P, data Acquisition, data Processing to data Publishing, fulfilling mobile monitoring and controlling needs under an IoT framework. Broad adoptability has made WISE a reliable source of big data which benefits users in identifying their next steps and which action to take. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Thus users can quickly notice and identify possible issues and system downtime can be minimized or even avoided. The WISE-4060, an IoT wireless I/O module with 4-channel digital input and 4-channel relay output, has an integrated Wi-Fi interface wuth AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.

- WiFi 2.4 GHz IEEE 802.11b/g/n WLAN
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports file-based cloud storage and local logging with RTC time stamp
?- Supports RESTful web API in JSON format for IoT integration
- Configured by mobile devices directly without installing software or App

Specifications

Digital Input

Channels

4 (TTL)

Input Voltage

Dry Contact
Logic level 0: Open
Logic level 1: Close to DI COM
Wet Contact
Logic level 0: 0~3 VDC
Logic level 1: 10~30 VDC

Isolation Protection

4,200 VDC

Environment

Operating Temperature

-25~70 °C (-13~158 °F)

Relative Humidity

20~95% RH (non-condensing)

Storage Humidity

0~95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

General

Connectors

1 x Plug-in screw terminal

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT

Hardware

Certification

CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, ANATEL

LED Indicators

Status, Com, AP/Station, Signal Strength

Power Consumption

2.5 W @ 24 VDC

Power Input

10~30 VDC

Watchdog Timer

1.6 s

Mechanical

Dimension (W x H x D)

80 x 148 x 25 mm

Enclosure

Mounting

DIN-rail, Wall, Stack

Weight (Net)

0.15 kg

Power Requirements

Input Voltage

10~30 VDC

Relay Output

Channels

4 Form A

Contact Rating (Resistive)

3 A @ 30 VDC

Relay Type

4 x Form A

Resistance

Min. 1 GO min.

Wireless Communication

Frequency Band

IEEE 802.11 b/g/n 2.4 (GHz)

Standard(Technology)

WIFI

Manufacturer Part No:

WISE-4060-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH140007

Product Model:

WISE-4060-AE
