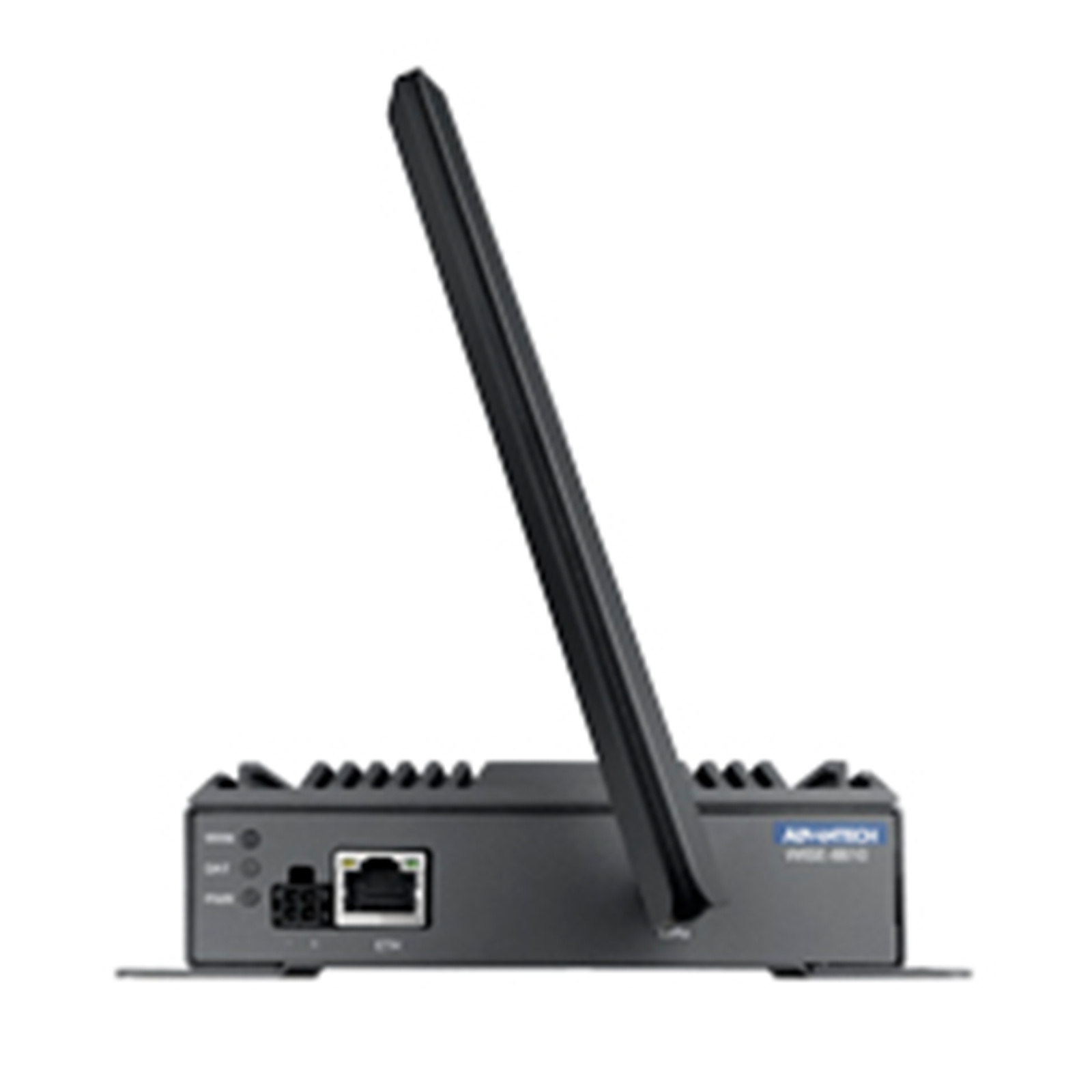

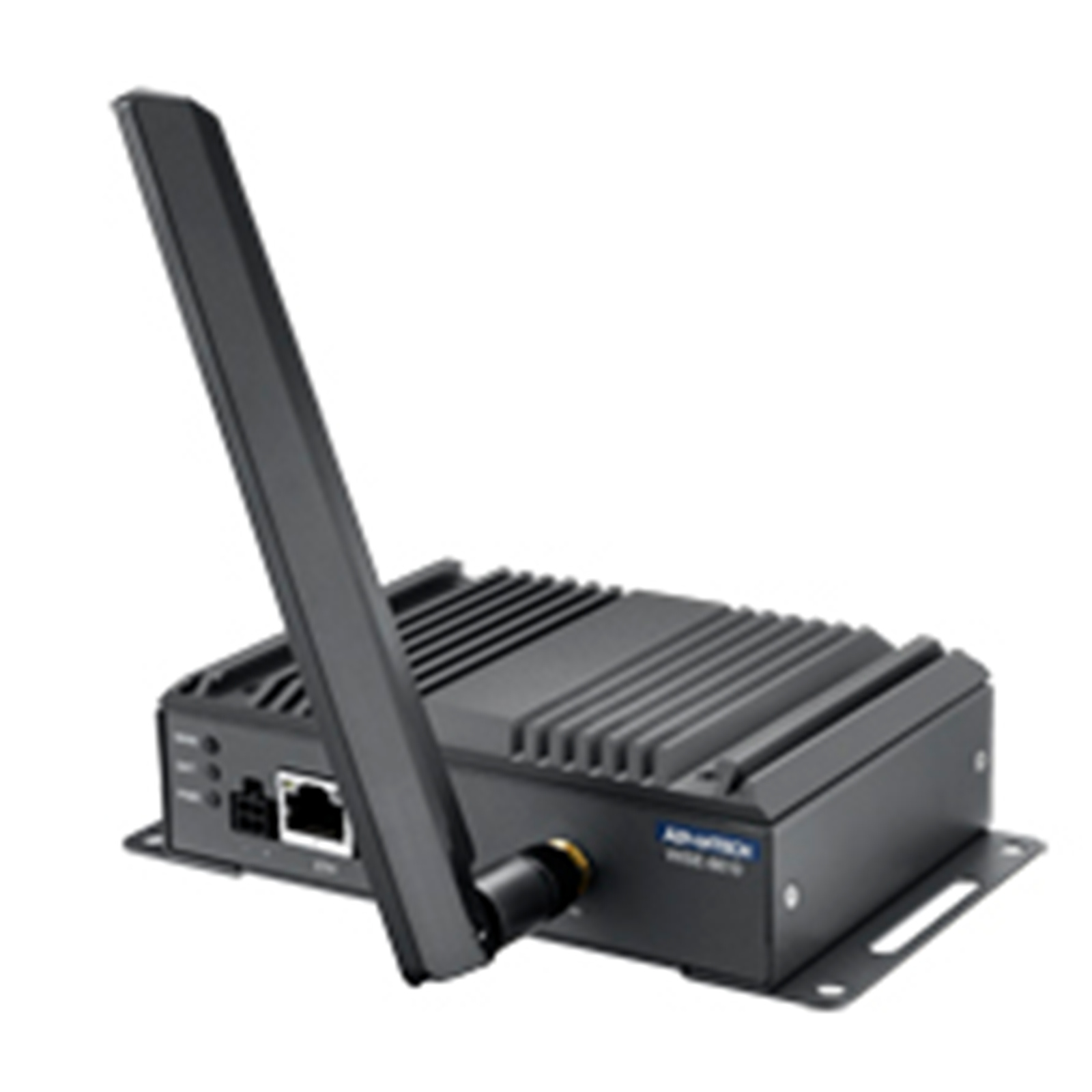

Advantech WISE-6610-N100-A 100N GATEWAY 915MHZ

PB Tech price

NZD $ 1,873 .23

$ 1,873 .23

Advantech WISE-6610-N100-A 100N GATEWAY 915MHZ

Brand: Advantech
MPN: WISE-6610-N100-A
Part #: IPCAVH140010
UPC:

PB Tech price

NZD $ 1,873 .23

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: WISE-6610-N100-A
Part #: IPCAVH140010
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- LoRaWAN protocol for closed and public system applications
- Redundancy-enhanced functions for continuous data transmission
- Enhanced memory for hosting custom software applications
- Low power consumption for solar and battery power applications
- Ethernet and I/O for connecting a wide array of field assets with DIN rail or wall mounting
- Long-range wide area IoT gateway
- RED compliance

Specifications

Certification

FCC

EMC

FCC

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

LoRa

Environment

Temperature (Operating Range)

-40 ~ 75°C (-40 ~ 167°F)

Relative Humidity

10 ~ 95% RH

Temperature (Storage Range)

-40 ~ 80°C (-40 ~ 176°F)

Ethernet Communication

RJ-45 Transmission Speed

10/100 Mbps

RJ-45 Port Number

RJ-45 Port Connector Type !

RJ-45

I/O Communication

Digital I/O Port Connectorl

4-way Molex moni-fit connector

Mechanism

Mounting (DIN-rail)

Yes

LED Indicator

PWR, DAT, WAN, ETH

Dimensions (W x H x D)

150 x 37.5 x 83 mm (5.9 x 1.48 x 3.27 in.)

IP Rating

IP30

Weight

0.52 kg

Mounting (Wall)

Yes

Power

Power Input (DC)

9 ~ 36 VDC

Redundant Dual Inputs

Yes x

Power Consumption

Software (SW)

OS Support (X)

Linux

Configuration

SSH, Web Browser

Protocols

DHCP Server, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP Client/Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/ v2c/ v3, Backup Routers, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging, Network Server

Wireless Communication

Wi-Fi Standard

LoRaWAN

Wi-Fi Antenna Connector Type

RP-SMA Female

Wi-Fi Antenna Number

Wi-Fi Free Space Range

10km

Frequency

915 MHz

Manufacturer Part No:

WISE-6610-N100-A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH140010

Product Model:

WISE-6610-N100-A

Warranty: 12 months *
